Quick Details
-
Diesel engine:
-
Yuchai YC4D100-T310(D8LFG5)
-
Drilling diameter:
-
105-305 mm
-
Air consumption:
-
16-55 m3/min
-
Drilling depth:
-
280M
-
Drill rod length:
-
3M
-
Cylinder:
-
4pcs
-
Traveling speed(km/h):
-
2.7km/h
-
air compressor:
-
needed
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
china
-
Product name:
-
K7 Mining Quarry Hard Rock Crawler Drilling Rig
-
Application:
-
Drilling water Wells
-
Diesel engine:
-
Yuchai YC4D100-T310(D8LFG5)
-
Drilling diameter:
-
105-305 mm
-
Air consumption:
-
16-55 m3/min
-
Drilling depth:
-
280M
-
Drill rod length:
-
3M
-
Cylinder:
-
4pcs
-
Traveling speed(km/h):
-
2.7km/h
-
air compressor:
-
needed
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO9001
China Hongwuhuan High Quality Portable Deep Water Well Rotary Crawler Drilling Rig

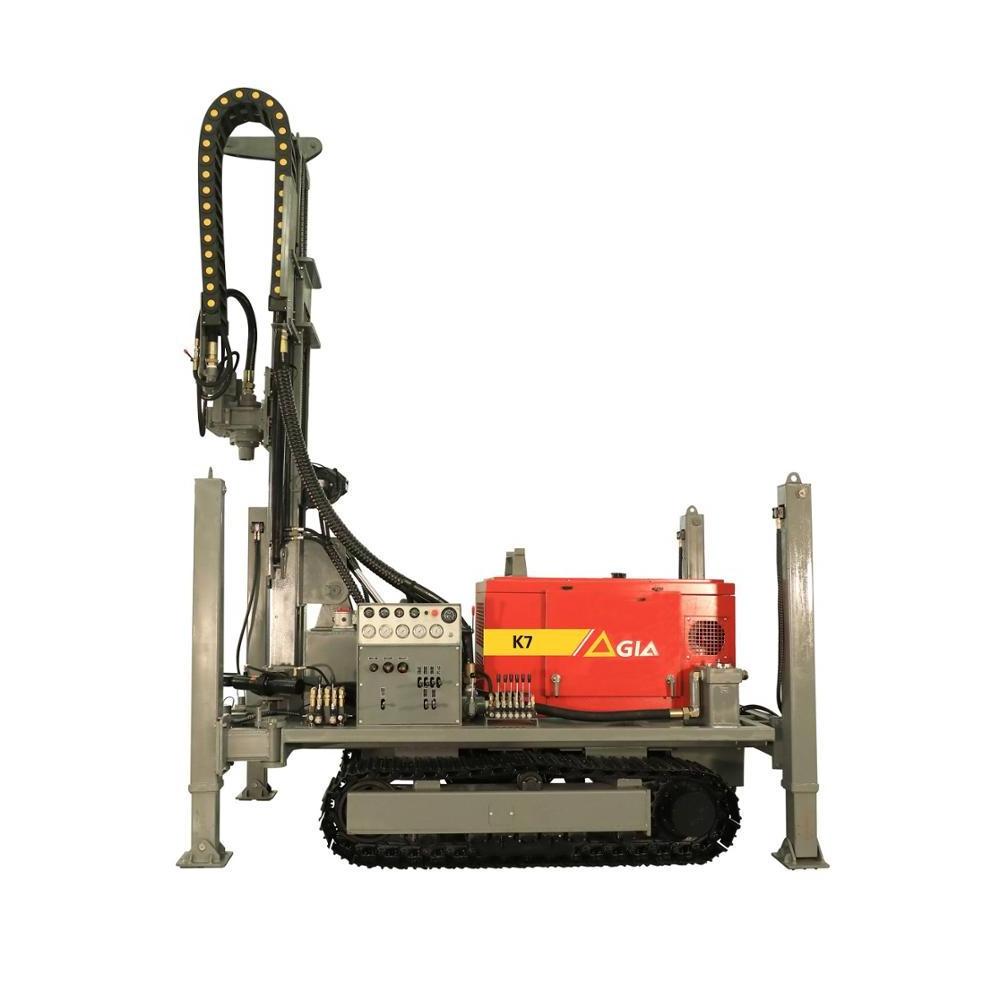

K7 crawler type water well drilling rig is a light, efficient and versatile drilling rig widely used in drilling water wells, monitoring wells and other drilling projects. It is especially suitable for the drilling of ground source heat pump air conditioning holes in urban buildings. The diameter hole range is : 105 - 305 mm.
Slewing head -- the slewing head is driven by double motor and equipped with a fast and slow gear switching valve. The slewing torque can be doubled by using the slow gear, which can better adapt to different operation requirements.
Three-stage filtration -- using pre-filter and oil-bath air filter to ensure the safety of diesel engine in high dust environment.
Engine -- equipped with Yuchai 4 cylinders diesel engine (National III emission), powerful, reliable and durable, easy to maintain.
The diesel engine is equipped with an electronic monitor - real-time centralized display of various states and technical parameters of the diesel engine, with a fault alarm function, which provides a guarantee for the normal operation of the rig.
Double cylinder retractable guide rail - -new double cylinder retractable guide rail, compact structure, large lifting force, small space occupation and convenient transportation.
Travel motor - -using high-quality travel motor, strong climbing ability, low failure rate, reliable and durable .
| Diesel engine | Yuchai YC4D100-T310(D8LFG5) |
| Power | 70 KW |
| Diamter of hole | 105-305 mm |
| Traveling speed | 2.7 km/h |
| Depth of hole | 280m |
| Climbing ability | 21° |
| Max lifting force | 100kN |
| Rotate speed | 0-100 r/min |
| Air compressor working pressure | 1.05-3.45Mpa |
| Air consumption | 16-55 m3/min |
| Dimension(L*W*H) | 3920*2100*2550 mm |
| Weight | 7000 kg |
|
