Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPTON
-
Model Number:
-
X2
-
Feature::
-
Fanless System 0.00dB
-
Memory Type::
-
1*DDR3L SODIMM Ram
-
Application::
-
Industrial, education, business, home theater, projects
-
Dimension::
-
133*125*40mm
-
Operating System::
-
Window, pfSense, Linux, Ubuntu etc
-
Wireless::
-
1*MPCIE port, optional
-
Storage Type::
-
1*mSATA SSD+1*2.5 inch SATA HD
-
Netwok Ethernet::
-
4*Intel Gigabit RJ45 Lans
-
Color::
-
Black/Gray by random
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPTON
-
Model Number:
-
X2
-
Feature::
-
Fanless System 0.00dB
-
Memory Type::
-
1*DDR3L SODIMM Ram
-
Application::
-
Industrial, education, business, home theater, projects
-
Dimension::
-
133*125*40mm
-
Operating System::
-
Window, pfSense, Linux, Ubuntu etc
-
Wireless::
-
1*MPCIE port, optional
-
Storage Type::
-
1*mSATA SSD+1*2.5 inch SATA HD
-
Netwok Ethernet::
-
4*Intel Gigabit RJ45 Lans
-
Color::
-
Black/Gray by random
Product Description
Processor parameter for referance only
1. Intel Celeron J1900, 2M Cache, 4 cores 4 threads, 2.00GHz up to 2.42GHz, TDP 10W;
2. Intel Pentium N3540, 2M Cache, 4 cores 4 threads, 2.16GHz up to 2.66GHz, TDP 7.5W;
3. Intel Atom E3827, 1M Cache, 2 cores 2 threads, 1.75GHz, TDP 8W, AES-NI Supported;
Product Highlight

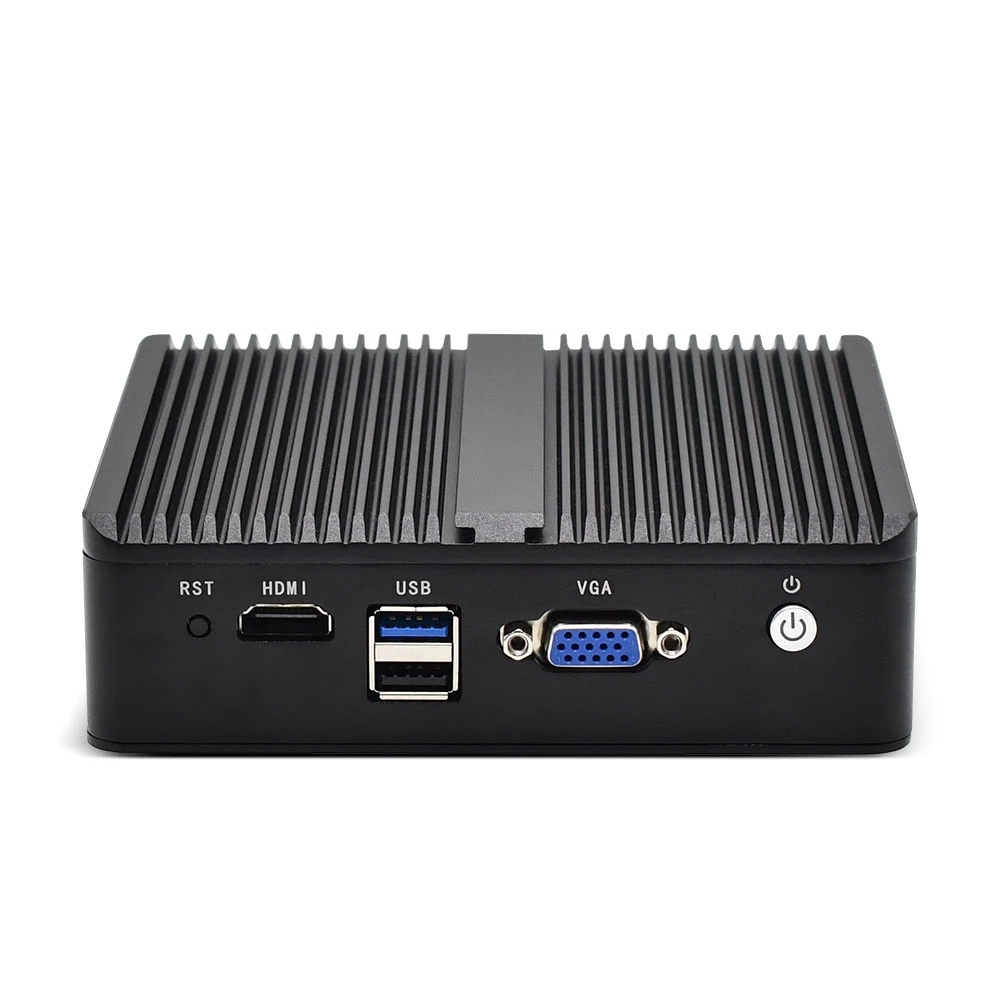

-4x Intel i211 Gigabit RJ45 LANs, 1xUSB3.0, 1xUSB2.0.
-Support two storage: 1xmSATA SSD+1x2.5''SATA SSD/HDD.
-Support 1xHD-MI+1xVGA dual display output synchronously and asynchronously.
-1xSIM slot, 1xMPICE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support Wide voltage input 12-19V.
-Support ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
-Full Aluminum Alloy color shell for heat dissipation, Exquisite production craft on outside design.
-Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
1. Intel Celeron J1900, 2M Cache, 4 cores 4 threads, 2.00GHz up to 2.42GHz, TDP 10W;
2. Intel Pentium N3540, 2M Cache, 4 cores 4 threads, 2.16GHz up to 2.66GHz, TDP 7.5W;
3. Intel Atom E3827, 1M Cache, 2 cores 2 threads, 1.75GHz, TDP 8W, AES-NI Supported;
Product Highlight
-4x Intel i211 Gigabit RJ45 LANs, 1xUSB3.0, 1xUSB2.0.
-Support two storage: 1xmSATA SSD+1x2.5''SATA SSD/HDD.
-Support 1xHD-MI+1xVGA dual display output synchronously and asynchronously.
-1xSIM slot, 1xMPICE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support Wide voltage input 12-19V.
-Support ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
-Full Aluminum Alloy color shell for heat dissipation, Exquisite production craft on outside design.
-Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
1xScrews Bag
Specification
|
item
|
value
|
|
Model Number
|
X2
|
|
Products Status
|
New
|
|
Warranty(Year)
|
3-Year
|
|
Certification
|
FCC, ce, RoHS
|
|
Use
|
Industrial
|
|
Plugs Type
|
US, AU, UK, EU
|
|
Processor Type
|
Intel Celeron
|
|
Graphics Card Chipset
|
Integrated Card
|
|
RAM Type
|
DDR3
|
|
Processor Core
|
Quad Core
|
|
Processor Series
|
Intel Celeron
|
|
Video Memory
|
8GB
|
|
Video Card
|
Intel HD graphics
|
|
After-sales Service
|
Repair
|
|
Feature:
|
Fanless System 0.00dB
|
|
Memory Type:
|
1*DDR3L SODIMM Ram
|
|
Application:
|
Industrial, education, business, home theater, projects
|
|
Dimension:
|
133*125*40mm
|
|
Operating System:
|
Window, pfSense, Linux, Ubuntu etc
|
|
Wireless:
|
1*MPCIE port, optional
|
|
Storage Type:
|
1*mSATA SSD+1*2.5 inch SATA HD
|
|
Netwok Ethernet:
|
4*Intel Gigabit RJ45 Lans
|
|
Color:
|
Black/Gray by random
|
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we could print your logo on the pc for free !
Pls contact me for logo printing ;)
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test.
Q4. What is the lead time of your products?
Re: Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5. How will you deliver my goods to me?
Re: We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to
enable our customers to get their goods rapidly.
Q6.What's the warranty?
Re: 3 year warranty ! After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories)
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we could print your logo on the pc for free !
Pls contact me for logo printing ;)
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test.
Q4. What is the lead time of your products?
Re: Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5. How will you deliver my goods to me?
Re: We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to
enable our customers to get their goods rapidly.
Q6.What's the warranty?
Re: 3 year warranty ! After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories)
