Quick Details
-
Brand Name:
-
SINO-GALVO
-
Weight (KG):
-
4.4 KG
-
Certification:
-
CE,ROHS,ISO
-
Product name:
-

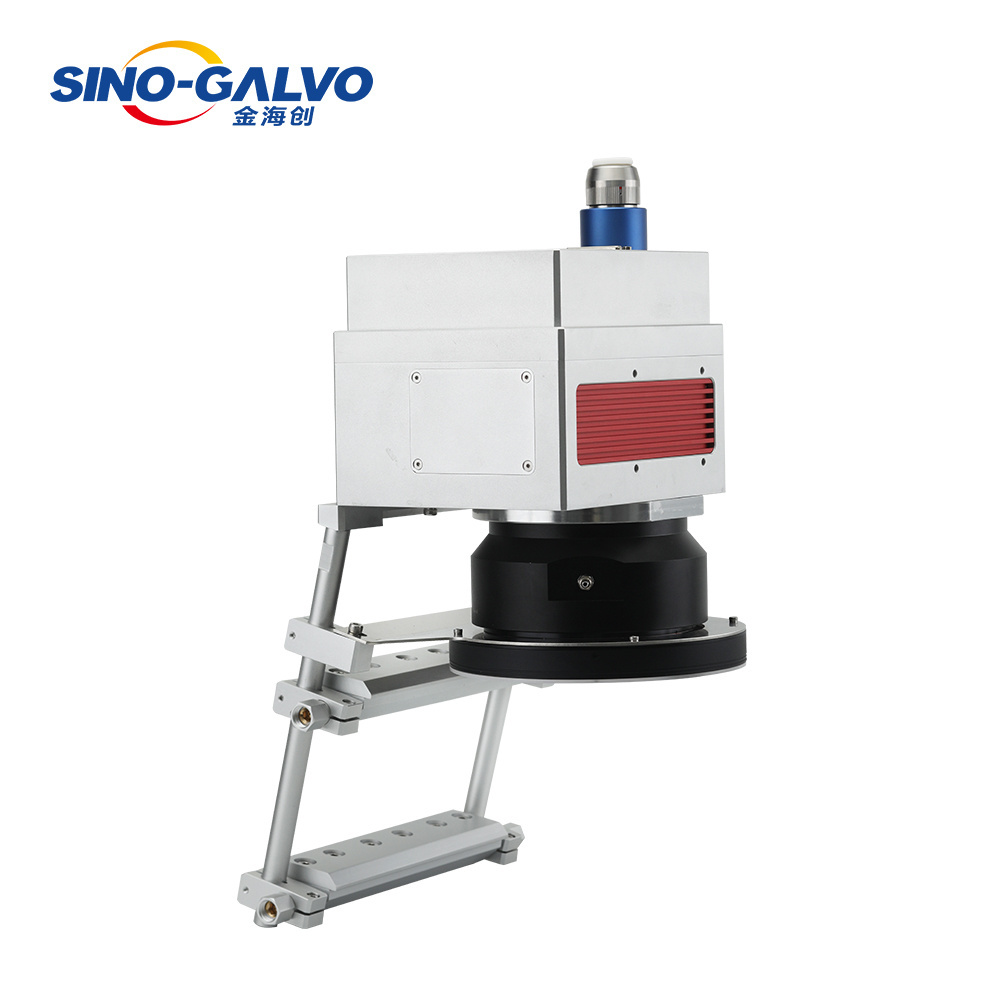

Galvanometer Scanner
-
Beam input aperture:
-
10 mm, 20 mm, 30 mm
-
Application:
-
Laser Welding
-
Laser Type:
-
Fiber laser
-
Linearity:
-
99.9%
-
Repeatability:
-
<8μRad
-
Long-term Drift Over 8 Hours:
-
< 0.5mRad
-
Storage Temperature:
-
-10℃~60℃
-
Working Temperature:
-
0~45°C
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Spare Parts Type:
-
Metal
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
SINO-GALVO
-
Weight (KG):
-
4.4 KG
-
Certification:
-
CE,ROHS,ISO
-
Product name:
-
Galvanometer Scanner
-
Beam input aperture:
-
10 mm, 20 mm, 30 mm
-
Application:
-
Laser Welding
-
Laser Type:
-
Fiber laser
-
Linearity:
-
99.9%
-
Repeatability:
-
<8μRad
-
Long-term Drift Over 8 Hours:
-
< 0.5mRad
-
Storage Temperature:
-
-10℃~60℃
-
Working Temperature:
-
0~45°C
Products Description
Product Parameters
|
HP10-2000 Parameters
|
|
|
|
Tracking Error Time
|
≤164us
|
|
|
Gain Error
|
＜5mRad
|
|
|
Zero Offset
|
＜5mRad
|
|
|
Scale Drift
|
＜40PPM/℃
|
|
|
Zero Drift
|
＜15μRad/℃
|
|
|
Maximum CW Fiber Laser Power
|
2000 W
|
|
|
Reflection Wavelength of Lens
|
1064~1080nm (High power coating)
|
|
|
Water Temperature
|
25±3℃
|
|
|
Maximum Water Pressure
|
＜3bar
|
|
|
Interface Signal
|
XY2-100
|
|
|
Machinery Scan Angle
|
±11°
|
|
|
Aperture
|
10 mm
|
|
|
Beam Displacement
|
13.5mm
|
|
|
Galvanometer Scanner Dimension
|
406.2×206.7×251.1mm
|
|
|
Galvanometer Scanner Weight
|
≈ 4.4kg
|
|
