Waste Paper Recycling Paper Making Machine With Competitive

Waste Paper Recycling Paper Making Machine

Technical parameter Waste Paper Recycling Paper Making Machine

Paper recycling machine description

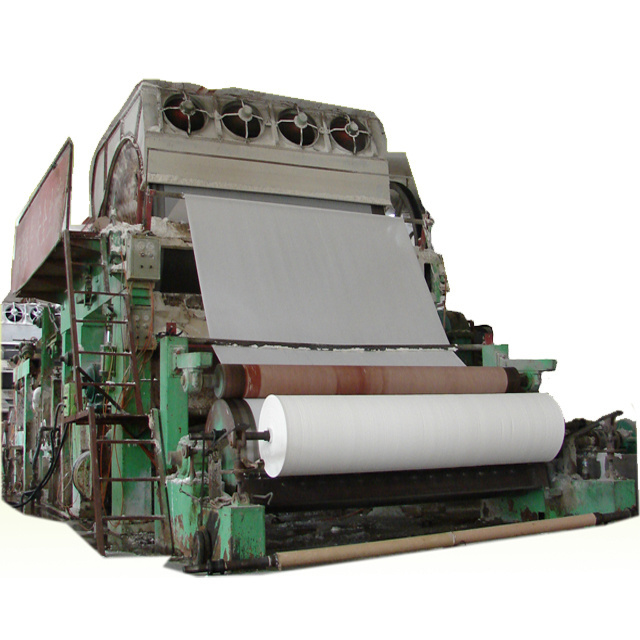

Paper machine is the general term of the full set of equipment for the d ivisional linkage of the paper pulp to make paper ,including the head box, net part ,press part ,drying part, calender machine, paper rolling machine and transmission part ,and auxiliary systems such as steam,water,vacuum, lubrication and heat recovery

The pulp water suspensions which meet the requirements of paper making are made into paper by dewatering and forming through filter screen,dewatering by mechanical extrusion and drying. The paper machine consists of three main parts:forming,pressing and drying,and is equipped with necessary finishing,coiling and transmission devices,as well as auxiliary systems such as pulp supply, pulp and white water circulation,vacuum,ventilation and exhaust,paper loss treatment, lubrication and automatic control.Paper machine specifications are often copied by its into the paper width (copy width),copper mesh width and preferred speed to express

Paper recycling machine spare parts

Cylinder mould:stainless steel structure for the film,cast iron spokes

Guide roller:cast iron,surface cladding rubber material,25mm cladding thickness,shore “A”95±2° cladding hardness,45#steel for thermal refining spindle nose

Dryer:HT200 cylinder block material,HT250 cylinder head,HB190-220 surface hardness,<=0.9mu surface roughness,0.5Mpa highest work pressure

Paper production line flow chart Waste Paper Recycling Paper Making Machine

Waste paper---Pulping---Screening---Pulp washing---Defibrination---Rescreen---Size mixing---Mixed pulp---Desander---upper wire---water absorption---Drying---Reeling---Slitting---Packing---Storage(take waste paper as example)

The flow chart just for reference

Suitable raw material Waste Paper Recycling Paper Making Machine

Waste paper,virgin pulp,wood,bagasse,cotton,straw,bamboo etc.

Output paper Waste Paper Recycling Paper Making Machine

Packaging&shipping Waste Paper Recycling Paper Making Machine

1.Wooden package;
2.Standard export package;
3.According to customers' requirements.

Company information

Company profile:Guo Rui Paper Making Machinery Co., Ltd is specialized in the paper making machines and pulp making equipments.The main items as below:high speed Toilet paper machine ,Napkin paper machine,Culture paper machine,Industrial packaging paper machine,Yellow paper machine and specialty paper machine.During the past thirty years production and sales,we have owned one excellent R&D department,as well as the good pre-sale service,after-sale technical support and strictly quality control system.Our products has been sold in the most of the China,as well as the foreign country,such as,Vietnam,Mongolia,West Africa,South Africa,Brazil,Uzbekistan, etc.
