Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ORANGEMECH
-
Voltage:
-
380v 50HZ
-
Dimension(L*W*H):
-
40x4x6 M
-
Power (kW):
-
22
-
Weight:
-
25 KG
-
Name:
-
PET Strap Band Production Line
-
Raw material:
-
PP PET FLAKES
-
Keywords:
-
pp pet Strap Making Machine
-
Capacity:
-
50 - 250 kg/h
-
Machine type:
-
Single Screw Extrusion Line
-
Usage:
-
Plastic Extrusion
-
Product name:
-
PET packing strap band making machine manufacturer
-
Function:
-
plastic pet strap making machine with good price
-
Other name:
-
PET Package Strap Band Extrusion Line
-
Processing Type:
-
Plastic PET Strap Making Plant
-
Marketing Type:
-
New Product 2020
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
45 rpm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ORANGEMECH
-
Voltage:
-
380v 50HZ
-
Dimension(L*W*H):
-
40x4x6 M
-
Power (kW):
-
22
-
Weight:
-
25 KG
-
Name:
-
PET Strap Band Production Line
-
Raw material:
-
PP PET FLAKES
-
Keywords:
-
pp pet Strap Making Machine
-
Capacity:
-
50 - 250 kg/h
-
Machine type:
-
Single Screw Extrusion Line
-
Usage:
-
Plastic Extrusion
-
Product name:
-
PET packing strap band making machine manufacturer
-
Function:
-
plastic pet strap making machine with good price
-
Other name:
-
PET Package Strap Band Extrusion Line
-
Processing Type:
-
Plastic PET Strap Making Plant
-
Marketing Type:
-
New Product 2020

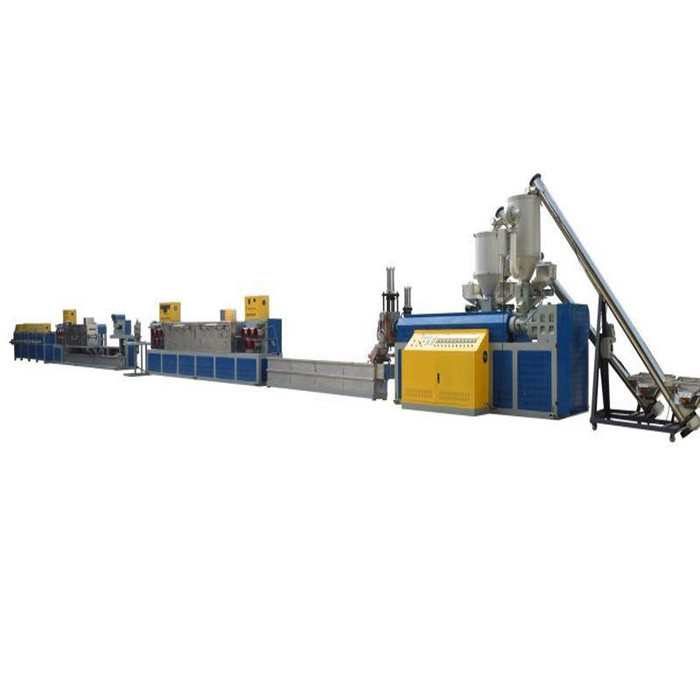

PET Strap Machine / PET Package Strap Band Extrusion Line / Plastic PET Strap Making Plant
Product Description
Product Description:
Raw material:
100% PET bottle chips or virgin material
(
viscosity
≥
0.75
)
Capacity: 100kg/h
Voltage: 380v
Operating power: 80kw/h
Installed power: 150kw/h
Packing strap specifications:
width: 11.5-19mm
thickness: 0.5-1.5mm
Production workshop area:
length: 35 meters width: 5 meters height: 6.5 meters
Others: self-provided water, electricity and gas sources
Water consumption: 2m³/h
Production line process
Feeding—drying and dehumidification—plasticization and extrusion—mold forming—sink
cooling—traction—baking—stretching—embossing—traction—rewinding
The main equipment components of the production line
Detailed parameters of production equipment
1. Screw feeding system
Power: 1.5KW
2. PET drying system (set)
Total power of dryer: 20KW
Drying and heating: 18KW
Drying capacity: 500kg
3. PET-SJ80 single screw extruder
1) The frame is welded by section steel, which has high rigidity.
2) Gear box
The gear and shaft parts are made of high-strength alloy steel, and the output end of the hollow
shaft is equipped with an over-spec thrust bearing to withstand the working recoil of the screw.
The main standard parts such as bearings and oil seals are all domestic high-quality products. The
whole machine has high carrying capacity, stable transmission, low noise and high efficiency.
a) Reduction ratio: 16:1
b) Grinding gears with hard tooth surfaces
3) Barrel and screw
The material of barrel and screw are both: 38CrMoAIA
Nitriding depth: 0.5~0.6mm
Screw length to diameter ratio: 30:1
4) Heating ring
Use 10 sets of cast aluminum heaters
Heater power supply: 3~AC380V, 50HZ
5) Main motor
Motor power: 22kw
Power supply: 3~AC380V.50HZ
Synchronous speed of motor: 1500rpm
4. 1 set of screen changing device
Double-column chemical fiber screen changer (1.5 square meters)
5. Electrical control cabinet
Frequency converter
Temperature control zone: Zone 10
Independent control cabinet
6. Machine head mould (one out and two out)
Packing tape blank forming mold
7. Stainless steel cooling water tank
Frame
Stainless steel sink
Circulating water inlet joint
Guide device
8. The first traction heat drying unit
First tractor
Traction motor power: 2.2kw
The diameter of the preheating roller: 270mm
Number of rollers: 5
Frame A3 machining
Frequency conversion control
Heating oven
Length 4000 mm
Width 330 mm
Height 430 mm
Double layer with heat insulation layer inside
Heating power 12kw
9. The second stretching unit
Traction motor power: 7.5kw
Roller diameter: 270mm
Number of rollers: 10
Clamping assembly
Frame: A3 machining
Frequency conversion control
10. The third embossing traction unit
Embossing machine unit
Embossing roller 120 mm
Frame A3 machining
Embossing roller electroplating treatment
Traction motor power: 3 kw
Clamping assembly
Frame: A3 machining
Inverter control
Third tractor
Traction motor power: 4 kw
Roller diameter 270 (mm)
Number of rollers: 3
Tighten the components
Frame
A3 machining
Water tank 4m
Fourth tractor
