Wool liquid fertilizer juice beverage ice cream storage mixing tank

Wool liquid fertilizer juice beverage ice cream storage mixing tank

FOB Reference Price: Get Latest Price

≥1 Sets

US $3100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Loading Capacity:: 5000L

Weight (KG):: 1000 KG

Place of Origin:: Zhejiang, China

Brand Name:: ONW

Voltage:: 380-440

Dimension(L*W*H):: TBD

Power (kW):: 3 kW

Certification:: CE

Quick Details

Barrel Volume (L):: 5000 L

Max. Loading Volume (L):: 5000 L

Range of Spindle Speed(r.p.m):: 60 - 2999 r.p.m

Max. Loading Capacity:: 5000L

Weight (KG):: 1000 KG

Place of Origin:: Zhejiang, China

Brand Name:: ONW

Voltage:: 380-440

Dimension(L*W*H):: TBD

Power (kW):: 3 kW

Certification:: CE

Product Overview

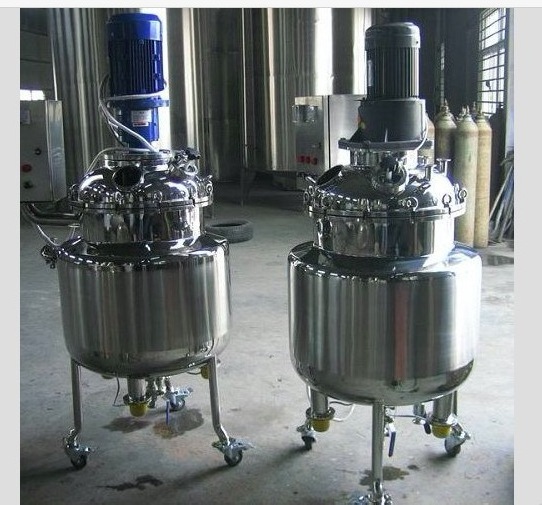

Multi Function Mixing Tank

Multi Function Mixing Tank is suitable for manufacturing various liquid products (such as detergent, shampoo, shower gel etc). It integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the ideal equipment for liquid products in domestic and international factories.

FEATURES AT A GLANCE

1. It can treatment lots of material . And can heating or cooling the material that inside the tank .

2.The top head or bottom tank can be up and down by cylinder .

3. High corrosion resistance PH:1-13, the material can be stainless steel 304,316L and titanium. And also can be PTFE coating inside

Bottom tank move

The bottom tank can be up and down by the cylinder (see the left photo)

Ans also we can do top head up and down .

PRODUCT SPECIFICATIONS

	200L	500L	1000L	2000L	10000L	20000L
Diameter(mm)	500	700	900	1200	1800	2300
Heigh(mm)	2300	2650	2900	3800	5250	6550
Inner pressure(Mpa)	0.2MPA
Layer pressure(Mpa)	0.3MPA
Stirring paddle No.	1-3 pcs
Stirring speed(r/min)	40-2990rpm
Motor power(kw)	0.75	1.1	1.5	3	7.5	12
