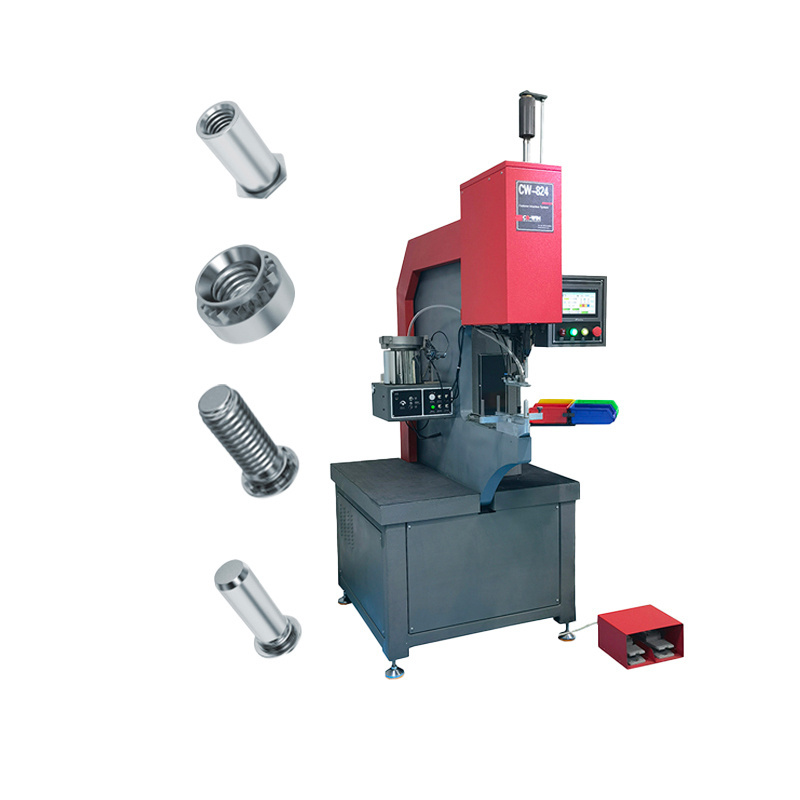

Hydraulic auto feeding riveting machine 618 824 fastener Insertion Machine

Hydraulic auto feeding riveting machine 618 824 fastener Insertion Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $9400

≥3 Sets

US $9000

≥100 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 970

Power (kW):: 3.75

Product name:: hydraulic riveting machine

C type throat highth:: 450mm

Throat Depth:: 600mm

Upper punch inconsistent stpoke:: 230mm

Decline speed od upper punch:: 68mm/s

Upper stroke site adjust:: 10-230mm

Nominal pressure:: 98KN

Type:: hydraulic

Auto Feeder:: Optional

Overall Size:: 1300*950*2100mm

Quick Details

Place of Origin:: Guangdong, China

Marketing Type:: New Product 2022

Brand Name:: CO-WIN

Weight (KG):: 970

Power (kW):: 3.75

Product name:: hydraulic riveting machine

C type throat highth:: 450mm

Throat Depth:: 600mm

Upper punch inconsistent stpoke:: 230mm

Decline speed od upper punch:: 68mm/s

Upper stroke site adjust:: 10-230mm

Nominal pressure:: 98KN

Type:: hydraulic

Auto Feeder:: Optional

Overall Size:: 1300*950*2100mm

Product Description

SUITABLE FIELD

1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)

2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)

3.Convex hull formation(formation arear diameter below 45MM techonlogy

4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)

5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet conjunction technology)

NO	Name	CW-618	CW-824
1	C Type Throat Depth	18"(457mm)	24"(610mm)
2	C Type Throat Height	15"(381mm)	17"(432mm)
3	Stroke Length	0 to 8"(0 to 200mm)	1 to 8"(0 to 200mm)
4	Press Down Speed	52MM/second	80MM/second
5	Protection Press Hand System	Standard	Standard
6	Force Range	3Kn-54Kn	3Kn-72Kn
7	Fastener Range	M2 to M10	M2 to M12
8	Dwell Time (holding pressure)	During 6 second	During 6 second
9	Adjustable Stroke	3/8"-6"(10-150mm)	3/8"-6"(10-150mm)
10	Clinching Ability	1mm to 6mm combined thickness	1mm to 6mm combined thickness
11	Repeat Precision	+/-1%	+/-1%
12	Auto Feeding System	Option	Option
13	Lot pre-miss rivet system	Standard	Standard
14	Laser Positioning Instruction	Option	Option
15	Single Machine Dimesion(MM)	L1230W970H2160mm	L1660W1120H2260mm
16	Working Table height	1050MM(Adjustbale scope 80MM)	1050MM(Adjustbale scope 80MM)
17	Gross Weight	650KG	1350KG
18	Input Power Capacity/Voltage	2.2KW Three-phase 380V	3.75KW Three-phase 380V

Detailed Images

Positive Limit

The positive limit system provides an easily adjustable method of precisely maintaining the stopping point of the machine cylinder, effectively preventing the indentation of soft materials when inserting the fastener, such as Aluminum, Glass Fiber, Printed Circuit Board, Plastic and various composite materials. The product thickness can be accurate to ±0.05mm.

Anti Pressing Hand Protective System

Intelligent fastener insertion machine is equipped with mandatory our patented safety protection system, automatic detection on the anti pressing hand function is working when starting up.

Replaceable Die Base Mounting Plate

The bottom die base replace frequently during working, which leads to screw striped of the lock thread lose efficacy in long term working. Our machine is specially designed the quench hardening and grinding quick changing bottom plate for the die base.

Main Electrical Cabinet and Control Panel

Control the power, parameter setting and adjust the pressure etc.

Auto Feeding System (Optional)

Intelligent ON and OFF of the bowl feeder to avoid long time friction pf fasteners under vibration state, resulting in coating peeling and abrasion. Used for the size of M2-M6 screws, nuts and standoffs automatic feeding. The maximum length nuts and standoffs can reach 30mm. The system has the function of fast removal residue fastener.

Auto Feeding Tooling( Optional)

According to different feeding method and fasteners we have designed different tooling to achieve the machine working automatically.

Auto Feeding Tooling( Optional)

According to different feeding method and fasteners we have designed different tooling to achieve the machine working automatically.

Application

Standoffs Nut Screw Sealing Lock Nut

Fasteners Reference

From our standard product offering insertion machines, to our build-to-order products and custom engineered insertion solutions, Co-Win has the ability to provide you with a totally unified solution for virtually any of your insertion challenges. Whether your company is new to hardware insertion, or inserts millions of fasteners each year, Our solution oriented approach will ensure that you get the correct system for your needs.
