Quick Details
-
Product name:
-
Semi-automatic tube taper machine
-
Application:
-
Metal tube fabrications
-
Suitable pipe material:
-
ss/aluminium/iron/copper
-
Processing Range(diameter):
-
38-89mm
-
Workpiece Thickness:
-
1.0-2.0
-
Forming Time:
-
2-15s
-
Forming The Length:
-
750mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-STRONG
-
Weight (KG):
-
4000
-
Product name:
-
Semi-automatic tube taper machine
-
Application:
-
Metal tube fabrications
-
Suitable pipe material:
-
ss/aluminium/iron/copper
-
Processing Range(diameter):
-
38-89mm
-
Workpiece Thickness:
-
1.0-2.0
-
Forming Time:
-
2-15s
-
Forming The Length:
-
750mm
Product Description
Product Description ：

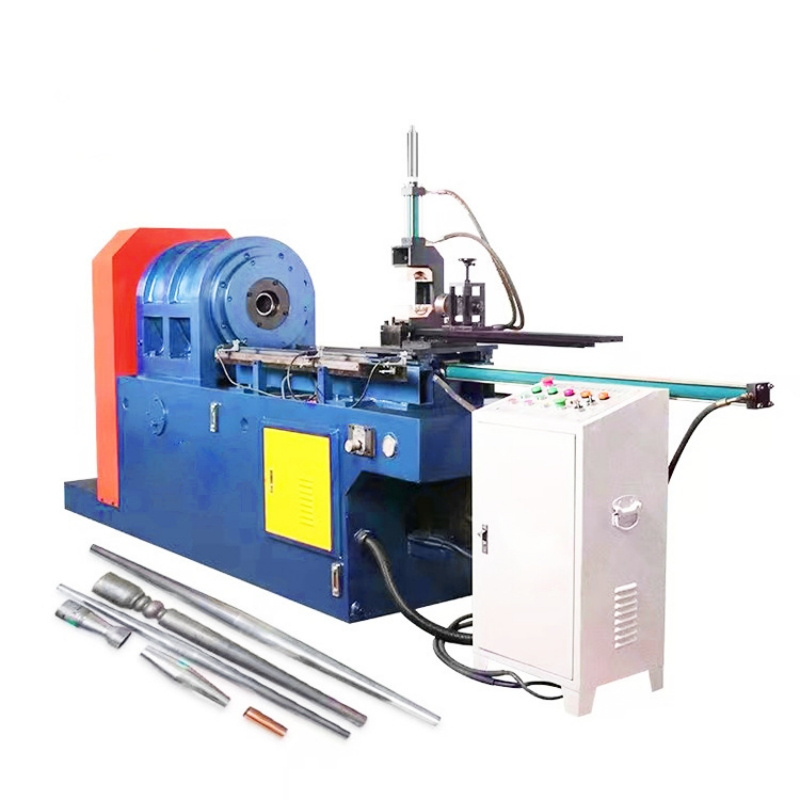

Semi-automatic Taper machine use cast iron body, more stable, lower noise.Mechanical parts and electrical parts are arranged neatly, more easier to repair.Forming speed can be fast as 2 second. Reasonable Price, you get what you pay for. This machine can process wall thickness (1.0-2.0mm),diameter (φ18-φ76mm),forming length (580mm) metal pipes,such as stainless steel pipes, iron pipes, copper pipes, aluminium pipes and so on. Widely used in furniture industry.Forming result is great.Welcome to sample customization!Our machine factory default is 380 v, 50 hz, 20 a, three-phase electricity, if you want to change the electricity, please contact us, we can help you to change to suit your electricity.
Title goes here.
*Cold forging method is used to forge and shrink the pipe into a cone.
*The surface of the workpiece is bright, round and smooth,no burr, no scratch.
*The machine is equipped with a closed-circuit lubrication system to ensure the normal operation of the machine for a long time.
Machine Parameter
|
Product model
|
76*600
|
76*800
|
|
Machine size(mm)
|
3500*900*1700
|
4300*900*1700
|
|
Processing range(mm)
|
φ18-φ76
|
φ18-φ76
|
|
Workingpiece thickness(mm)
|
1.0-2.0
|
1.0-2.5
|
|
Forming length(mm)
|
580
|
780
|
|
Forming time(s)
|
15-30
|
15-30
|
|
Main motor(kw)
|
11
|
15
|
|
Sprindle center height(mm)
|
1000
|
1000
|
|
Total weight of equipment(kg）
|
4000
|
5000
|
