Quick Details
-
Brand Name:
-
Tzone/OEM/ODM
-
Model Number:
-
TDL06
-
Material:
-
Plastic
-
Type:
-
Vibration data logger
-
Product name:
-
Vibration Testing Equipment Shock Data Logger
-
Sensor types:
-
NTC temperature sensor and three-axis acceleration sensor
-
Acceleration sampling rate:
-
Unit: HZ 50, 100, 200, 400, 1344HZ (Optional)
-
Acceleration sampling mode:
-
Timing collection, trigger threshold collection
-
Measuring range:
-
Acceleration: ±27g (three-axis vector sum); ±16g (Single axle)
-
Measurement accuracy:
-
Acceleration: ±0.1g + 5% measurement value
-
Data capacity:
-
34560 Points
-
Report format:
-
PDF CSV report
-
Battery:
-
ER14250 (replaceable)
-
Battery life:
-
7 months
Quick Details
-
Warranty:
-
1 year
-
Theory:
-
Temperature controller, Temperature Sensor, Temperature Transmitter, Temperature Recorder, Thermocouple Thermometer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tzone/OEM/ODM
-
Model Number:
-
TDL06
-
Material:
-
Plastic
-
Type:
-
Vibration data logger
-
Product name:
-
Vibration Testing Equipment Shock Data Logger
-
Sensor types:
-
NTC temperature sensor and three-axis acceleration sensor
-
Acceleration sampling rate:
-
Unit: HZ 50, 100, 200, 400, 1344HZ (Optional)
-
Acceleration sampling mode:
-
Timing collection, trigger threshold collection
-
Measuring range:
-
Acceleration: ±27g (three-axis vector sum); ±16g (Single axle)
-
Measurement accuracy:
-
Acceleration: ±0.1g + 5% measurement value
-
Data capacity:
-
34560 Points
-
Report format:
-
PDF CSV report
-
Battery:
-
ER14250 (replaceable)
-
Battery life:
-
7 months
Product Description
Vibration Testing Equipment Shock Data Logger
| Product name | Vibration Testing Equipment Shock Data Logger |
|
Sensor types
|
Built-in NTC temperature sensor, built-in three-axis
acceleration sensor.
|
| Acceleration sampling rate |
Unit: HZ
50, 100, 200, 400, 1344HZ (Optional)
|
| Acceleration sampling mode | Timing collection, trigger threshold collection |
|
Measuring range
|
Acceleration: ±27g (three-axis vector sum); ±16g (Single
axle)
Temperature: -30
℃
~70
℃
|
| Measurement accuracy |
Acceleration: ±0.1g + 5% measurement value
Temperature: ±0.5
℃
(-20
℃
~40
℃
)
;
±1
℃
(Other)
|
|
Data capacity
|
34560 measurement values
|
| Report format | PDF and CSV format data report |
|
Waterproof level
IP65
|
IP65
|
| Battery type | ER14250 (Replaceable) |
| Battery life |
7 months (at 25
℃
ambient temperature, and with the
default
|
Item Feature:
- Built-in three-axis acceleration sensor and NTC temperature sensor.
- Suitable for the transportation of sensitive goods such as food, chemicals, precision machinery, artwork, electronic products, film materials, and glass
- 34560 measurement values data capacity.
- No need any software to get the PDF and CSV report. 5. Battery life: 7 months (at 25℃ ambient temperature, and with the default configuration).
- Waterproof: IP65
How to using it
Step 1: Press button to START logging
Step 2: Secure device to a wooden box or box
Step 3: Press button to STOP logging in destination
Step 4: Connect PC to get PDF CSV report

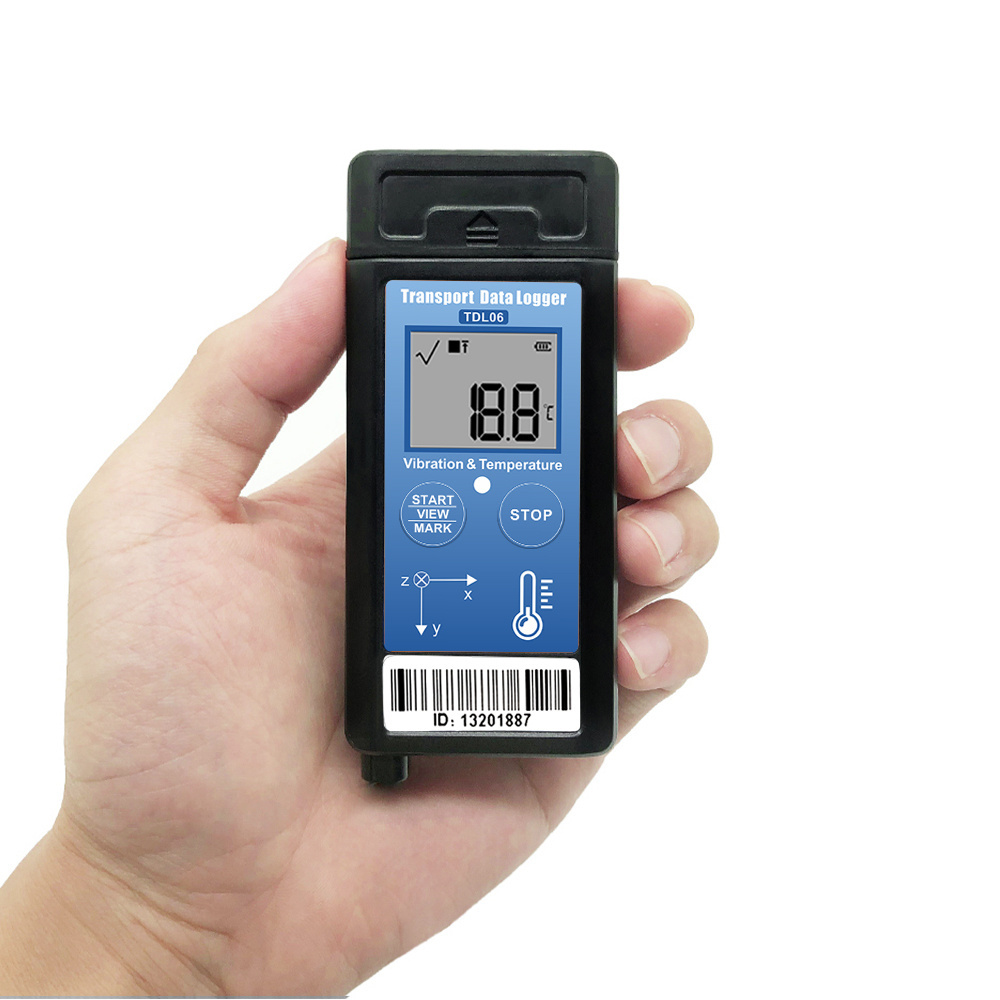

Product Show
Vibration Testing Equipment Shock Data Logger
