AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A
AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A
AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A
AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A
AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A
AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A
AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A
AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A

AA4C automatic tire changer with back titling column tyre changing machine tire service machine AA-TC188A

FOB Reference Price: Get Latest Price
≥3 Pieces
US $1000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shanghai, China
Brand Name:
AA4C
Model Number:
AA-TC188A
Warranty:
1 Years
Tire changer:
full automatic tilting back arm design
Max tire diameter:
1000mm/39.5''
Max. wheel width:
16''
Turntable diameter:
620mm/24.4''
Product name:
Automatic Car Tire Changer Machine
Certification:
CE
Inside Clamping:
13.5-24''
Outside clamping:
12-21''
BEAD BREAKER FORCE:
2500kgs
NOISE LEVEL:
65dB

Quick Details

Motor Power:
0.75-1.1KW
Operating Pressure:
8-10Bar / 116-145Psi
Power Supply:
110V/220V/380V, 50HZ/60HZ
Place of Origin:
Shanghai, China
Brand Name:
AA4C
Model Number:
AA-TC188A
Warranty:
1 Years
Tire changer:
full automatic tilting back arm design
Max tire diameter:
1000mm/39.5''
Max. wheel width:
16''
Turntable diameter:
620mm/24.4''
Product name:
Automatic Car Tire Changer Machine
Certification:
CE
Inside Clamping:
13.5-24''
Outside clamping:
12-21''
BEAD BREAKER FORCE:
2500kgs
NOISE LEVEL:
65dB
Products Description

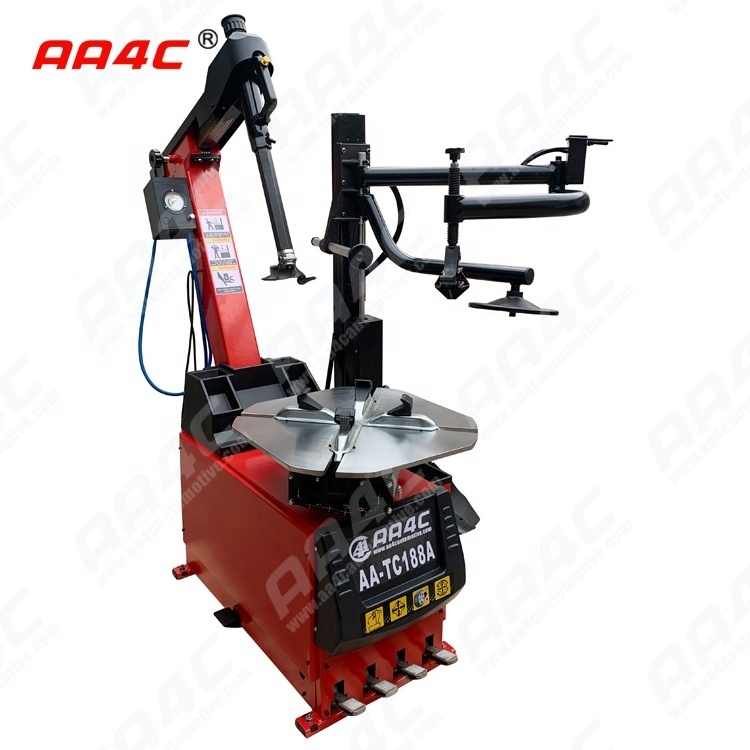

AA-TC188 Full automatic tilting back arm design Tire changer,
used tire repair equipment

Introduction


AA-TC188 is the full-automatic tyre changer with advanced configure. Push-pull horizontal arm, tilt back vertical arm, fast inflation is optional. The helper make the operation time saving, safe and easy. It is specially suitable for wide, low-profile, stiff and tubeless tyres. The quality is reliable, suitable for large tyre repair shop.

Features


1. Hexangular shaft used S41 mm steel, not easy to distort, ensure the operation of low-profile and stiff tyre more safety. 2. The turntable, use δ15mm steel, the surface of the turntable is chromeplated, wearable and antisepticised. 3. The mounting head, used alloy material, ensure the intensity. 4. This machine equipped with the protection cover for the mounting head, clamps, lever and bead breaker shoe, to avoid the damage for the aluminum alloy rim. 5. The inflating system adopt gauge box, equipped with rubber inflating hose, ensure long working time and safety operation. 6. This machine with “C” configure, “C” means tubeless tyre inflating device, make the edge of the tubeless tyre connect tightly with the rim, avoid the leakage when inflating. 7. This model can upgrade, the middle-grade helper HL360 with rail-style slideway is optional according to customer’s demand, the roller on this helper is fixed, this helper make the operation easy. 8. Full-automatic tyre changer with push-pull horizontal arm and tilt back vertical arm, pneumatic locking, instead of semi-automatic and manual locking method, improve the working efficiency.
Power supply
110V/220V/380V, 50HZ/60HZ
Motor power
0.75-1.1KW
Air requirement
8-10Bar / 116-145Psi
Bead breaker force
2500KG/5510lbs
Working noise
<70db
Max tire diameter
1000mm/39.5''
Max. wheel width
16''
Turntable diameter
620mm/24.4''
Inner clamping
13.5-24''
Outer clamping
12-21.5"
