Quick Details
-
Product Name:
-

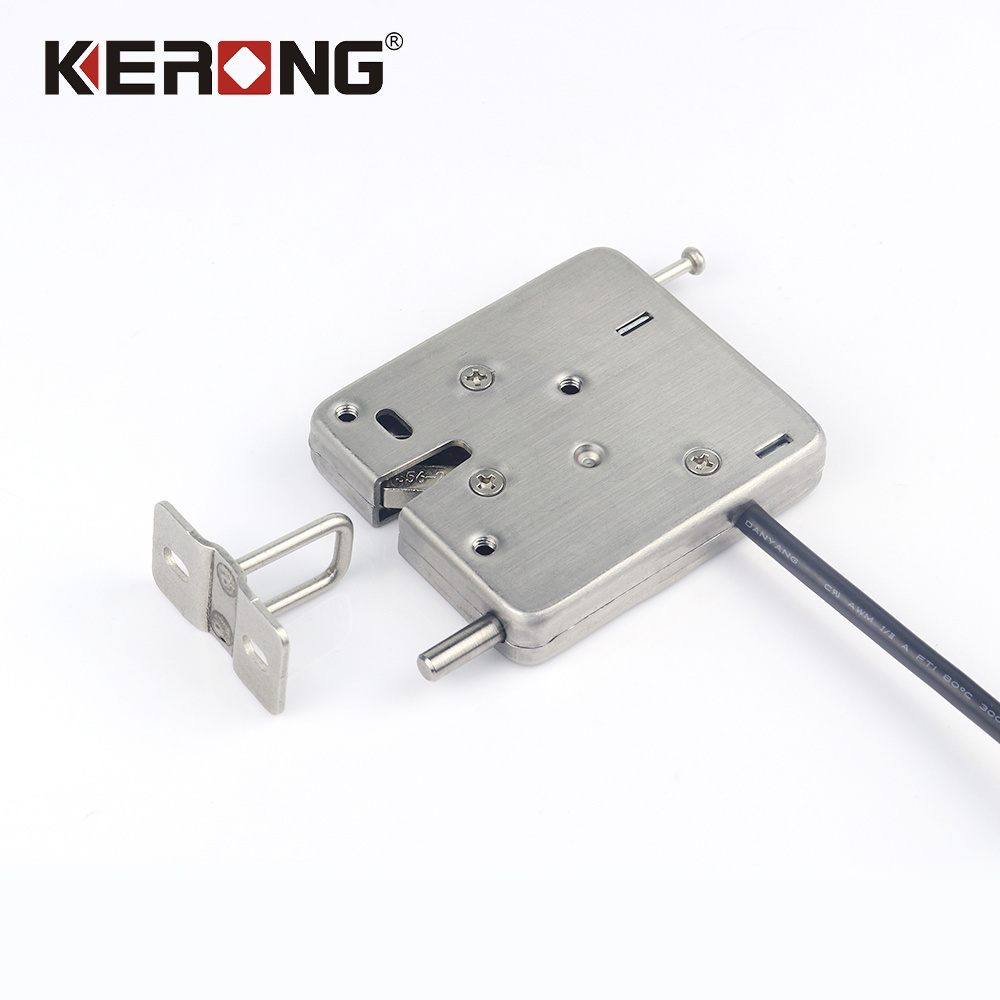

Electric Solenoid Lock
-
Response time:
-
67*59*13.5mm
-
Material of lock body:
-
430 stainless steel
-
Working voltage:
-
12V/24V
-
Working current:
-
2.4A/1.2A
-
Tensile strength:
-
270 kg
-
Warranty:
-
1 Year
-
Application:
-
Logistics express lock, automatic vending machine lock, etc
-
Certification:
-
CE; FCC; RoHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERONG
-
Model Number:
-
KR-S66N
-
Product Name:
-
Electric Solenoid Lock
-
Response time:
-
67*59*13.5mm
-
Material of lock body:
-
430 stainless steel
-
Working voltage:
-
12V/24V
-
Working current:
-
2.4A/1.2A
-
Tensile strength:
-
270 kg
-
Warranty:
-
1 Year
-
Application:
-
Logistics express lock, automatic vending machine lock, etc
-
Certification:
-
CE; FCC; RoHS
Product Parameters
|
Brand
|
|
|
KERONG
|
|
|
||||
|
Product Model
|
|
|
KR-S66N
|
|
|
||||
|
Product Name
|
|
|
Electric Solenoid Lock
|
|
|
||||
|
Material
|
|
|
430 Stainless Steel
|
|
|
||||
|
Size
|
|
|
67*59* 13.5mm
|
|
|
||||
|
Weight of Lock
|
|
|
170g
|
|
|
||||
|
Colour
|
|
|
Stainless Steel
|
|
|
||||
|
Surface Treatment
|
|
|
Passivation
|
|
|
||||
|
Working Voltage
|
|
|
DC 12V/24V
|
|
|
||||
|
Working Current
|
|
|
2.4A/1.2A
|
|
|
||||
|
Power Consumption
|
|
|
28.8W
|
|
|
||||
|
Application
|
|
|
Gym Locker, Electric Cabinet, Parcel Storage Locker, Supermarket Locker, etc
|
|
|
||||
|
Service Life
|
|
|
500,000 times
|
|
|
||||
|
Detective Switch
|
|
|
Omron
|
|
|
||||
|
Drive Mode
|
|
|
Solenoid
|
|
|
||||
|
Certifications
|
|
|
CE, RoHS, FCC
|
|
|
||||
Product Specification
1. AWG24 wire with PVC protective tube.
2. Support customizing wires and connectors.
3. Driven by electromagnet, support 12V & 24V.
4. The external push rod helps to push and stabilize the cabinet door.
5. The compact structure design leaves more space for the storage cabinet.
6. Japanese Omron switch has a long service life and detects the opening and closing of the lock.
7. Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
8. Different lock hooks are suitable for different locker designs, and customized services can be provided.
9. Safety: The lock shell is made of 430 stainless steel, and there will be no obvious transformation.
2. Support customizing wires and connectors.
3. Driven by electromagnet, support 12V & 24V.
4. The external push rod helps to push and stabilize the cabinet door.
5. The compact structure design leaves more space for the storage cabinet.
6. Japanese Omron switch has a long service life and detects the opening and closing of the lock.
7. Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
8. Different lock hooks are suitable for different locker designs, and customized services can be provided.
9. Safety: The lock shell is made of 430 stainless steel, and there will be no obvious transformation.
