Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
J14A
-
Product name:
-
rectangular connector
-
Feature:
-
electronic instrument
-
operating temperature:
-
-55~+125
-
Rated Current:
-
3A
-
voltage:
-
800v
Quick Details
-
Type:
-
none
-
Application:
-
electronic instrument
-
Gender:
-
Female
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
J14A
-
Product name:
-
rectangular connector
-
Feature:
-
electronic instrument
-
operating temperature:
-
-55~+125
-
Rated Current:
-
3A
-
voltage:
-
800v
|
Product Name
|

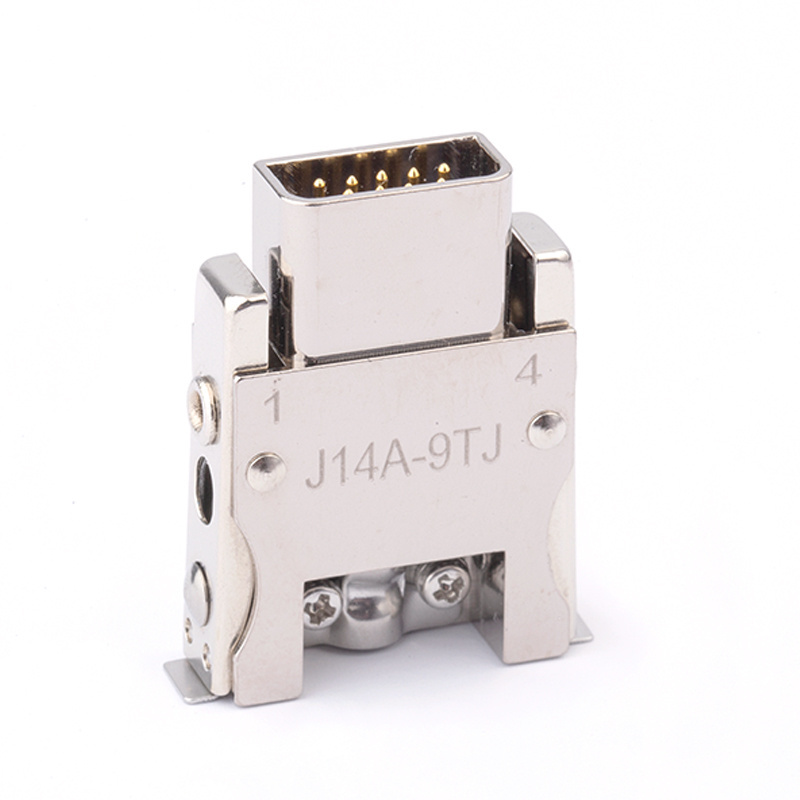

Rectangular electrical connector
|
|
Shell
|
Aluminum alloy
|
|
Working temperature
|
-55℃~+125℃
|
|
Relative humidity
|
At 40℃±2℃, 90%~95%
|
|
Work pressure
|
4.39KPa~101.33KPa
|
|
Vibration
|
10~2000Hz Acceleration 196m/s2
|
|
Impact
|
980m/s2
|
|
Mechanical life
|
Plug and pull≥500 times
|
1. What is the maximum current?
The current is limited by the wire number of the electrical connector and its termination.
2. What is the rated current?
The rated current should be based on the number of cores actually used to check the Q value of the rated current reduction rate of the contact (refer to the table below). Then, according to the formula: rated current of single contact ≥ working current of single contact II÷(1-Q), select the appropriate contact pair diameter and contact type spectrum of electrical connector.
3. What is the maximum voltage?
The maximum voltage depends on the gap between the circuits (i.e. contact spacing and creepage distance) and the insulation material used in the connector.
4. What is the operation and usage of electrical connection?
When the plug of the connector is connected with the socket, because the plug and socket have blind insertion function, first insert the head guide into the socket, and then rotate the plug. After the five key position is positioned, then rotate the nut clockwise, the three clip quickly enters into the three curve groove, and then rotate about 120 ° to hear the "click" sound. At this time, the plug and socket have been correctly positioned, and the plug and socket have been locked Lock.
When separating, gently push the connecting nut forward, and rotate it counterclockwise, the plug and socket will separate smoothly. When the connector is connected, it must be terminated according to the corresponding contact number.Before the connector is locked, do not use it with power on.
5. What should be marked in the order description?
Product name and model;Optional accessory models (as required);
number;
The optional cable accessories, crimping tools and other special tools need to be ordered separately;
If users have special requirements for electrical connectors, we will wholeheartedly meet the requirements of users, improve or develop new electrical connectors.
