Quick Details
-
Switch Time:
-
1/20000s
-
Warranty:
-
2 years, 2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Newlife
-
Model Number:
-
TH
-
Power Supply:
-
Solar Cells and Lithium Batteries
-
Solar Powered:
-
Yes
-
Auto-Darkening:
-
Yes
-
Color:
-
black
-
Power on/off:
-
fully automatic
-
Delay time:
-
0.1s-0.8s (adjustable)
-
Operating temperature:
-
23 F to 131 F (-5c to +55c)
-
Storing temperature:
-
-4 F to 158 F (-20c to +70c)
-
UV/IR protection:
-
0.0003 percent (313nm), <0.0006 percent (365nm)
-
CE Certification:
-
Approval
Quick Details
-
Dimension (L x W x H):
-
133*114mm
-
Cartridge Size:
-
110X90X11mm
-
Sensitivity:
-
Adjustable
-
Switch Time:
-
1/20000s
-
Warranty:
-
2 years, 2 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Newlife
-
Model Number:
-
TH
-
Power Supply:
-
Solar Cells and Lithium Batteries
-
Solar Powered:
-
Yes
-
Auto-Darkening:
-
Yes
-
Color:
-
black
-
Power on/off:
-
fully automatic
-
Delay time:
-
0.1s-0.8s (adjustable)
-
Operating temperature:
-
23 F to 131 F (-5c to +55c)
-
Storing temperature:
-
-4 F to 158 F (-20c to +70c)
-
UV/IR protection:
-
0.0003 percent (313nm), <0.0006 percent (365nm)
-
CE Certification:
-
Approval
Company Introduction

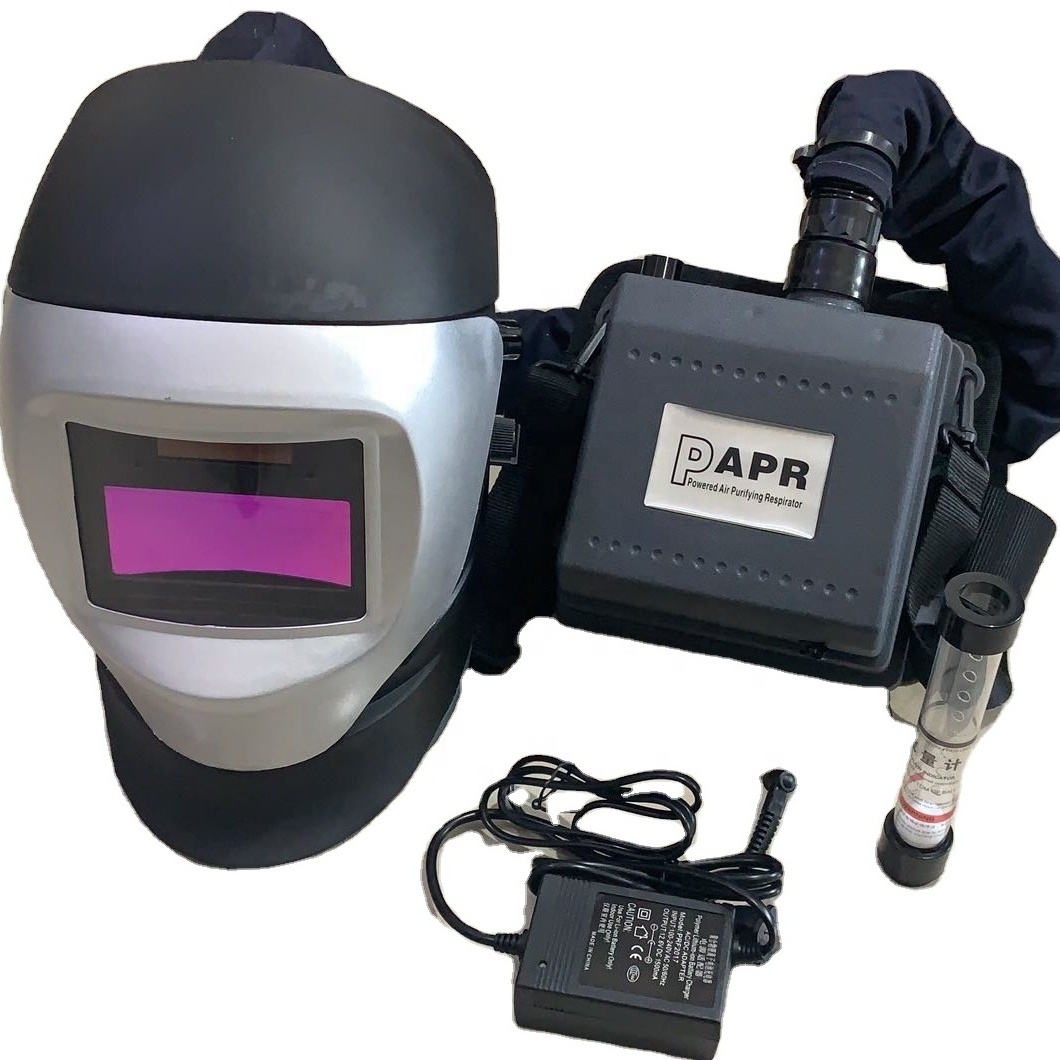

Taian Newlife Mechanical and Electrical Technology Co., Ltd is a high-tech integrated company specializing in research, development, manufacture, and international trade of Auto Darkening Welding Helmet and powered air purifying respirators. The headquarters is located in Hi-Tech Industrial Development Zone, Taian City, Shandong Province, China. Near the Qingdao port, transportation is convenient and rapid.
we have 55 staff, including 2 senior engineer, more than 10 research personnel and quality inspector . Manufacturing experience more than 15 years. 2000 workshop,2production lines,6 inspection equipment,monthly capacity more than 20000/piece.Export proportion more than 95%, annual output value more than 3 million dollars.
Since 2001, we have been developing TH series of auto-darkening welding helmets. Combining the modern optical-electronics technology and aesthetical design, molded and assembled with the most advanced technology provided by Germany, the welding helmet has gone through extensive optical and impact-resistance test, and fully met ANSI Standard Z87.1, European CE EN379 EN175 standard.
TH series auto darkening welding helmet is the outstanding crystallization of our researchers. It has advantages of beautiful style, ample interior space, comfortable to wear, fast response, high-resolution, wide viewing angle, reflection time and light sensitivity can be adjusted. It is suitable for TIG , MIG, MAG welding and other kinds of arc welding, plasma cutting, polishing, etc. Technical parameters are up to the international standards such as EN \ ANSI. Our auto darkening welding helmet can protect the welder from sparks, UV rays \ IR rays and bright light of the torch.
Our advantages
1.Well and High Quality Control , 2.Prompt Delivery , 3.New Product , 4.Customer's Design and Logo are Welcome , 5.Competitive Prices , 6.Earth-friendly Products , 7.In a Variety of Design , 8.Small Order Acceptable , 9.OEM Accepted
Product Description
Product Application
Our factory
Package and shipping
1, 1pcs welding helmet in one gift box 27*23.5*27cm, 8pcs/ carton 57*50*57cm/ net weight 4.5kg/ gross weight 8kg
2, Economic package: 20pcs/carton 57*50*52cm/ net weight 10kg/gross weight: 15kg
Contact information
Contact person: Bruce Lee
Tel:+086 15854821343 (wechat)
Email: honest_welding @ 126.com
Skype: bruce.lee5858
Taian Newlife Mechanical and Electronic Technology Co.,Ltd
High quality Auto Darkening Welding Helmet- - Leading manufacturer from China
Product Description
Auto Darkening Welding Helmet TH-2B2 has been designed specially for
welders with varying job requirements and a need for an extensive range
of individual adjustment options.
The features include protective levels from DIN 3 to DIN 13 and various
additional options that provide the welder with absolute freedom and
unrestricted comfort.
The enlarged field of view (+ 33%) and true color filter allows the welder
a brilliant, detailed view of the welding object.
· Button to select shade level ranges: DIN 3-9 and DIN 9-13.
· Variable shade level control between DIN 3-9 or DIN 9-13.
· Grinding mode to prevent automatic darkening when grinding and brazing.
· Sensitivity control to adjust the sensors ability to detect the welding arc.
· Selectable opening delay to provide protection from the afterglow and to adapt to personal needs.
· Batteries CR2032, 2 pcs (back side)
· The delay function allows the user to set the dark-to-light switching time (1-20000s).
· A selection of welding filters with superior optical performance for continuous viewing comfort.
· Arc detection down to 1 amp TIG.
· Ultraviolet (UV) and infrared (IR) protection at all times, in all states.
· Increased coverage for ear and side of head.
- Electrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG welding (GTAW)
- Plasma Arc Welding
- Micro Plasma Arc Welding
- Plasmacutting
- Oxy-Gas Welding
- Grinding
- Prohibited for laser welding!
CE Approvals and European Standards
In Europe, all personal protective equipment must be CE marked and in
compliance with the PPE Directive 89/686/EEC before they can be placed
on the market. The PPE must also be in compliance with applicable, national,
harmonized standards that ensure that the basic safety requirements in the
PPE Directive are met.
Our Welding Helmets are produced strictly according to Personal Protective
Equipment Directive 89/686/EEC, passed the standards EN 175:1997 test
report and EN 379:2003+A1:2009 test report.
-EN 175:1997 Personal protection - Equipment for eyes and face protection
during welding and allied processes.
-EN 379:2003+A1:2009 Personal eye-protection - Automatic welding filters.
For the provisions of internal control measures to ensure the conformity of series
production of the machines, Taian Newlife has built an internal quality control
system in accordance with the international standard of ISO-9001 .
------------------------------------------------------------------------------------------------------------------------------------------------------
We accept sample order by Paypal
------------------------------------------------------------------------------------------------------------------------------------------------------
Do you have questions about this product? Ask a question(
skype: bruce.lee5858
)
------------------------------------------------------------------------------------------------------------------------------------------------------
Auto Darkening Welding Helmet Mask
------------------------------------------------------------------------------------------------------------------
Technical Data
|
Model |
TH-2E2 |
|
Filter Size |
110x90x11mm |
|
View Areas |
98x48mm |
|
UR/IR Protection |
UP TO SHADE DIN15 ALL TIME |
|
Light Shade Number |
DIN3 |
|
Dark Shade Range |
DIN9-DIN13 |
|
Shade Adjustment |
BUILT-IN |
|
Sensitivity Adjustment |
CAN ADJUSTABL |
|
Switching Time (light - dark) |
1/20000S FROM BRIGHT TO DARK |
|
Recovery Time |
0.3~0.6S FROM DARK TO BRIGHT |
|
Power ON/OFF |
FULLY AUTOMATIC |
|
Power Supply |
SOLAR CELLS |
|
Operating Temperature |
-5c to +55c (23f to +131f ) |
|
Storing Temperature |
-20c to +70c (-4f to +158f ) |
|
Net Weight |
490g+-10g |
