Quick Details
-
Dimention of the machine (WxLxH):
-
2040x1280x1950
Quick Details
-
Place of Origin:
-
Japan
-
Brand Name:
-
Kuroda
-
Weight (KG):
-
1600
-
Dimention of the machine (WxLxH):
-
2040x1280x1950
Products Description
Suitable machine for easy operation, energy saving, and versatile items.
Energy-saving, space-saving, easy to use.
Energy-saving, space-saving, easy to use.

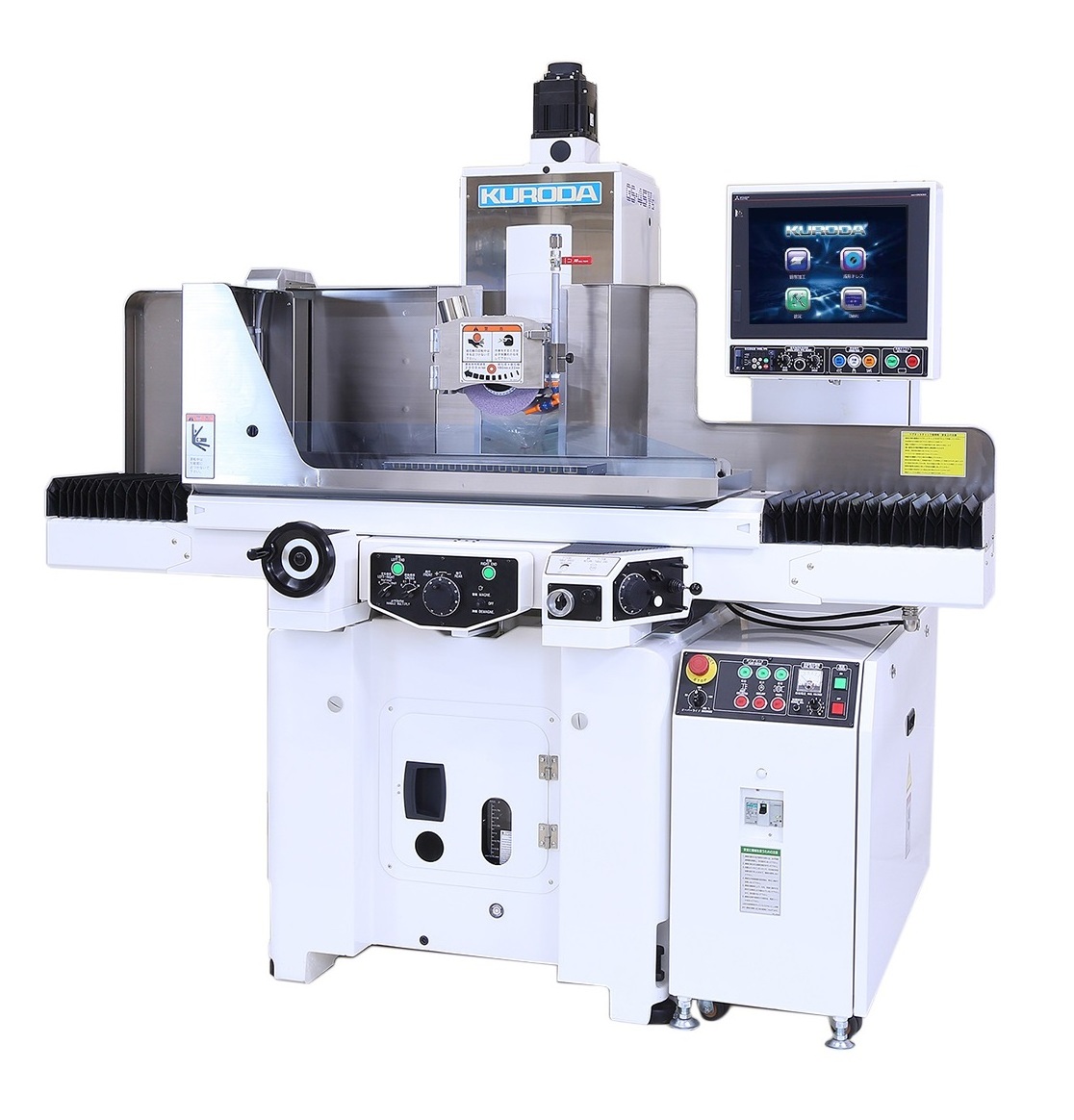

The best forming surface grinding machine for fine size workpiece.
Operability
Manual grinding is easy to operate, and you can set full automatic operation with ease.
Manual grinding is easy to operate, and you can set full automatic operation with ease.
The layout of operation switches, handles, and a touch panel possesses excellent operability and visibility.
Energy saving
AC servo motor is used for longitudinal feed.
AC servo motor is used for longitudinal feed.
Machine body size was reduced by 40% and energy consumption was also reduced by 60% compared to our previous model.
Non-hydraulic system contributes to lesser burden on the environment and realized more easy maintenance.
|
Performance / Specifications
|
|
|
|
|||
|
|
Unit
|
GS-45V/VR
|
GS-45Vs/VRs
|
|||
|
Working surface of the table
(L x W )
|
mm
|
500×150
|
|
|||
|
MAX. traverse of the table
(long x Cross )
|
mm
|
580×200
|
|
|||
|
Distance from table top surface
to bottom surface of wheel
|
mm
|
40 ～ 390
|
|
|||
|
Standard magnetic chuck size
（L×W×H）
|
mm
|
Flat typ: electromagnetic 450×150×70
Tilting type: electromagnetic 380×110×125
|
|
|||
|
Max.mass of workpiece
|
kg
|
70
|
|
|||
|
Longitudinal feed rate
|
mm/min
|
1 ～ 40
|
|
|||
|
Saddle cross feed
|
mm
|
Feed per revolution of handwheel:
0.01 / 0.1 / 1 .0 / 5.0
Feed per graduation of dial:
0.0001 /0.001 /0.01 /0.052 ～ 40
|
|
|||
|
Cross auto infeed
|
mm
|
Step feed: 0.1 ～ 50 Optional setting
|
|
|||
|
|
mm/min
|
Continuous feed rate: 1～1000
|
|
|||
|
Vertcal feed speed
|
mm/min
|
500
|
|
|||
|
Wheel dimention
(D x W x B)
|
mm
|
φ180×6～25×31.75
|
|
|||
|
Floor space required
(W x L)
|
mm
|
2040×1480
|
|
|||
|
Dimention of the machine
(W x L x H)
|
mm
|
2040x1280x1950
|
|
|||
|
Machine net weight
|
kg
|
1600
|
|
|||
