Quick Details
-
Model Number:
-
CK-02R
-
Spindle type:
-
Water-cooled
-
Drive System:
-
Servo motor
-
NC System:
-
ChiKin CNC
-
Machine Type:
-
PCB manufacturing equipment
-
Advantage:
-
Low Air Consumption
-
Available industry:
-
PCB production line
-
Machine Application:
-
Single sided/Double Sided/Multilayer pcb
-
Processing PCB Material:
-
MCPCB(alumunium pcb ), PCB ccl machine
-
Model Name:
-
Printed circuit board production equipments
Quick Details
-
Weight (KG):
-
200
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ChiKin
-
Model Number:
-
CK-02R
-
Spindle type:
-
Water-cooled
-
Drive System:
-
Servo motor
-
NC System:
-
ChiKin CNC
-
Machine Type:
-
PCB manufacturing equipment
-
Advantage:
-
Low Air Consumption
-
Available industry:
-
PCB production line
-
Machine Application:
-
Single sided/Double Sided/Multilayer pcb
-
Processing PCB Material:
-
MCPCB(alumunium pcb ), PCB ccl machine
-
Model Name:
-
Printed circuit board production equipments

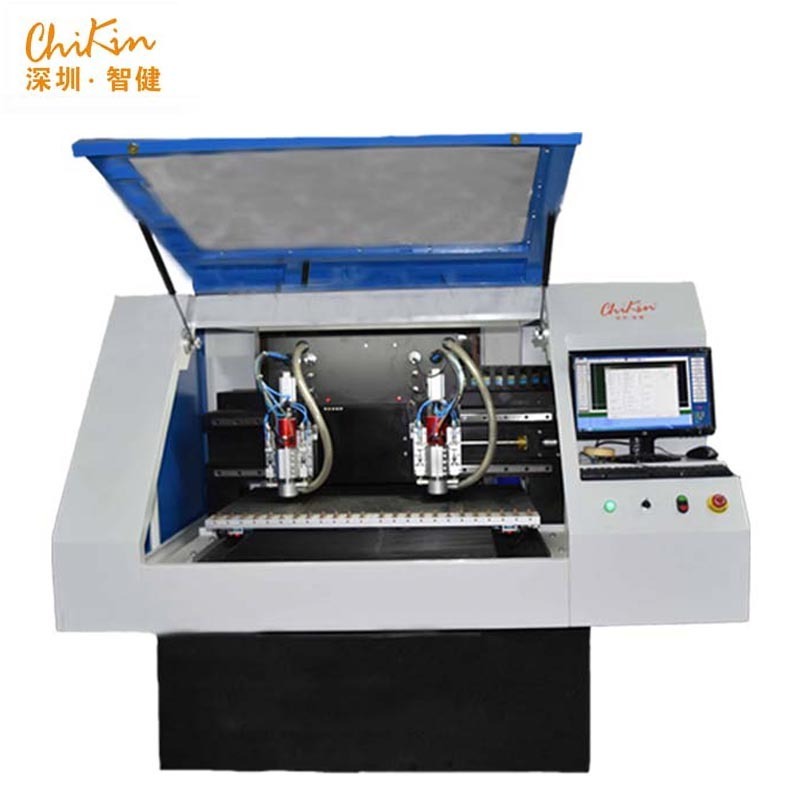

Shenzhen ChiKin CNC Low Air Consumption Automatic MCPCB Machine Aluminium PCB Circuit Board Making Equipment Used in PCB Manufacturing Production Line
| Automatic MCPCB Machine Aluminium PCB Circuit Board Making Equipment | |
| Model | CK-02R |
| Spindle | 2 |
| Spindle Specification |
High Speed Ball Bearing Spindle (60000 rpm) |
| Drive System | Imported AC Servo Motor |
| Transmission Mechanism | Imported High Precision Linear Guide with Ballscrew |
| Moving Speed | 15-30m/min |
| Working Area | 480mm x 580mm, 560mm x 680mm |
| Tool Change | Automatic Tool Change |
| Tool Detection | Yes, Tool Length Detection |
| Routing Accuracy | + / - 0.05mm |
| Positioning Accuracy | + / - 0.005mm |
| Rout Bit Size | Φ0.6mm - 3.175mm |
| Power | AC 380V 3PH 5KVA |
| Air Supply | 6 - 8 par |
| Machine Size | 2100mm x 1850mm x 1700mm |
| Machine Weight | 2600KG |
| Machine Controller System | Self-Develop Rout System, Also can be updated to Sieb & Meyer System |
CNC PCB MILLING MACHINE
Its rugged design & high quality spindle ensures fast PCB drilling without compromising on production quality.Designed with precision, our offered products are well known for excellent finishing and effectiveness with long functional life. We quality test these products under various parameters for ensuring performance and durability as per latest industrial norms.
Q: How many layers does this machine can process?
A: This machine can process single-sided pcb, double-sided pcb and multilayer pcb.
Q: What kind of program format can this machine identify?
A: This machine can identify EXCELLON format, Gerber format and NC format.
Q: Is there only 2 spindle machine?
A: Our standard is 2 spindle and 4 spindle machine, also can custom single spindle, 3 spindle machine in accordance with customer requirement.
Q: What is the warranty of this machine?
A: 1 year from the date of machine installation in customer place.
Q: What is the traning way of machine operation?
A: There are 2 options for customer as below
Option 1: Customer pre- buy off the machine and finish the traning in our factory, and we will bare the fee of accomodation for customer's engineer (1-2 person)
Option 2 : Our engineers available to service machinery oversea in customer place, with bare the fee of accomodation by customer side.
