1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
6.We have free spare parts with the machine.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vina
-
Voltage:
-
380V,50Hz or Customized
-
Dimension(L*W*H):
-
10*2*3
-
Power (kW):
-
30
-
Weight:
-
2300 KG
-
Name:
-
plastic corrugated shaped pipe bellows hose machine
-
Keywords:
-
Plastic Corrugated Shaped Pipe machine
-
Raw material:
-
Raw material+additatives
-
Automatic Grade:
-
High Automation
-
Motor:
-
Siemens Beide
-
Inverter:
-
ABB Brand
-
Temperature control:
-
Omron Brand
-
Color:
-
Customized Color
-
Screw:
-
Single Scwer
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
72 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vina
-
Voltage:
-
380V,50Hz or Customized
-
Dimension(L*W*H):
-
10*2*3
-
Power (kW):
-
30
-
Weight:
-
2300 KG
-
Name:
-
plastic corrugated shaped pipe bellows hose machine
-
Keywords:
-
Plastic Corrugated Shaped Pipe machine
-
Raw material:
-
Raw material+additatives
-
Automatic Grade:
-
High Automation
-
Motor:
-
Siemens Beide
-
Inverter:
-
ABB Brand
-
Temperature control:
-
Omron Brand
-
Color:
-
Customized Color
-
Screw:
-
Single Scwer
Products Description
>>
Use
:

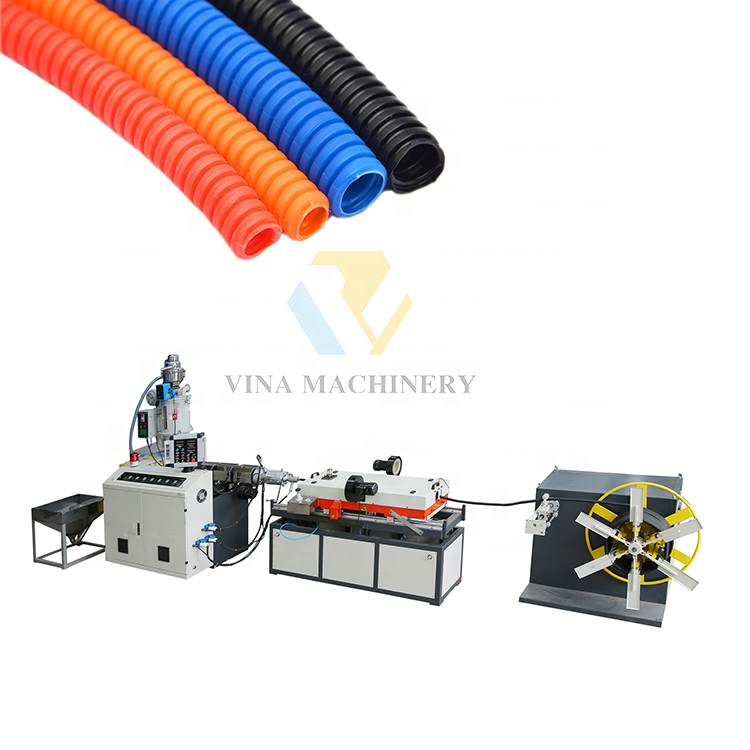

This production line is specialized in producing
plastic corrugated shaped pipe bellows hose
. The main material is PE/PP/PA/HDPE etc.
>>
Process Flow
:
Automatic suction machine
→
heating dryer
→
screw extruder → Mould →
High speed bellows forming machine
→ Haul-off & Cutter →
Winding machine
→
Final Product Inspecting & Packing
Details Images
Final product reference
Product Paramenters
|
Pipe diameter
|
8-32mm
|
16-75mm
|
|
Main Extruder model
|
SJ50
|
SJ65
|
|
Main Extruder L/D
|
25:1/28:1/30:1
|
25:1/28:1/30:1
|
|
Capacity
|
30-50kg/h
|
60-80kg/h
|
|
Main Motor
|
11KW/15KW
|
18.5KW/22KW
|
|
Cooling type
|
Air fans cooling
|
Air fans cooling
|
|
Forming mould quantity
|
50 paris
|
60 pairs
|
|
Production Speed
|
8-12m/min
|
8-15m/min
|
|
Forming machine motor
|
1.5kw
|
1.5kw
|
Product packaging
Packaging & Shipping:
FAQ
Contact us
If you consult, we do not have the first time to reply, please leave your contact information or add our contact information, we see the message, will be the first time to reply
Q:Are you machinery factory or trading company?
A:We have our own factory,which means we can strictly guarantee product quality and lead time.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Do you provide material testing service?
A:We have our own factory,which means we can strictly guarantee product quality and lead time.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will becharged depends on the testing costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will
counts to deduction of machine purchase cost.
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems. (notice: return flight and $80 per day salary will be on customer）
Q: How to get a quote efficiently?
A: Please kindly click on ' Sent An Inquiry ' Button at the bottom of page,or click "Chat now"on the right side of the page. Leave a message to describe details of your final products ( better with a picture and size drawing), Capacity requirements, We willreply to your inquiry within 12 hours
Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems. (notice: return flight and $80 per day salary will be on customer）
Q: How to get a quote efficiently?
A: Please kindly click on ' Sent An Inquiry ' Button at the bottom of page,or click "Chat now"on the right side of the page. Leave a message to describe details of your final products ( better with a picture and size drawing), Capacity requirements, We willreply to your inquiry within 12 hours
Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
