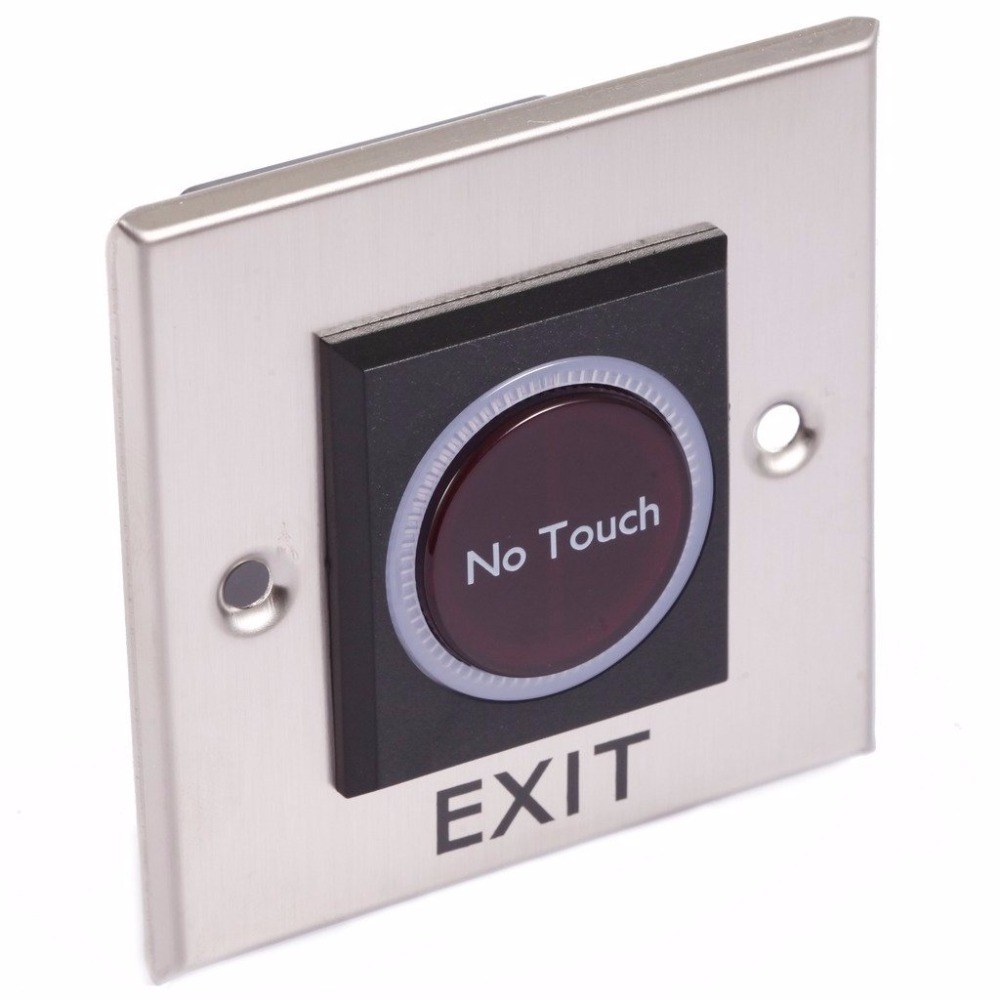

Infrared Sensor NO Touch Exit Button Door Release Switch with LED Indication

Infrared Sensor NO Touch Exit Button Door Release Switch with LED Indication

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3.5

≥200 Pieces

US $3.2

≥500 Pieces

US $2.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: OEM

Model Number:: EX002S

Products Name:: Non Touch Door Exit Release Button

Material:: Stainless steel Plate

Detection range:: 0.1 ~ 10 cm

Operating temp::: -20°C~+55°C(14-131F)

Input Voltage:: DC12V

Size:: 86x86x39mm

Certification:: CE

Quick Details

Protection Level:: IP55

Max. Current:: AC120V/3A, DC30V/3A

Max. Voltage:: DC12V

Place of Origin:: Guangdong, China

Brand Name:: OEM

Model Number:: EX002S

Products Name:: Non Touch Door Exit Release Button

Material:: Stainless steel Plate

Detection range:: 0.1 ~ 10 cm

Operating temp::: -20°C~+55°C(14-131F)

Input Voltage:: DC12V

Size:: 86x86x39mm

Certification:: CE

Product Descripition

Specification
Product Name		Stainless steel no touch exit button
Working voltage		DC 12V
Detection range		0.1-10cm
Output Contact		NO\NC\COM
Material		Durable stainless steel plate
Size		86x86x39(mm)

Features

· No touch / Touch free Exit Sensor (Diffused Detection)

· Optical / Infrared Technology

· IP-55 Ingress Protection / SUS 304 Stainless steel Plate

· User friendly (Healthy protection)

· Free from contagious diseases spread

· Detection range: 0.1 ~ 10 cm

· Application: Gate/Door/Exit/Automation control

· High capacity of relay dry contact (3A/AC120V,DC30V)

· Normally open/Normally close/Common relay output

· Twin led indicators for sensor standby or approached :

(1) Sensor Standby: BLUE LED ON

(2) Visitors whom approached to the sensor in 10 cm : RED LED ON

Detailed Images

Packing & Delivery

Carton Box

Package Weight: 85G
Package Size: 86 x86 x 39mm

Delivery Terms: Within 3 Days

Trade Terms: FOB Shenzhen
