Quick Details
-
Voltage:
-
220V
-
Power:
-
13.5KW
-
Dimension(L*W*H):
-
1.2*2.2*2M
-
Weight (KG):
-
1500
-
Marketing Type:
-
New Product 2021
-
Heating source:
-
Electricity
-
Product name:
-
Rotary Drying Machine
-
Name:
-
High Speed Centrifugal Spray Drier
-
Application material:
-
Wide Application
-
Fuel:
-
Natural Gas.oil
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Advantage:
-
Low Consumption High Efficiency
-
Function:
-
High Efficiency Drying
-
Keywords:
-
Spraydry
Quick Details
-
Type:
-
Spray Drying Equipment
-
Place of Origin:
-
Henan China
-
Brand Name:
-
Luohe SY
-
Voltage:
-
220V
-
Power:
-
13.5KW
-
Dimension(L*W*H):
-
1.2*2.2*2M
-
Weight (KG):
-
1500
-
Marketing Type:
-
New Product 2021
-
Heating source:
-
Electricity
-
Product name:
-
Rotary Drying Machine
-
Name:
-
High Speed Centrifugal Spray Drier
-
Application material:
-
Wide Application
-
Fuel:
-
Natural Gas.oil
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Advantage:
-
Low Consumption High Efficiency
-
Function:
-
High Efficiency Drying
-
Keywords:
-
Spraydry

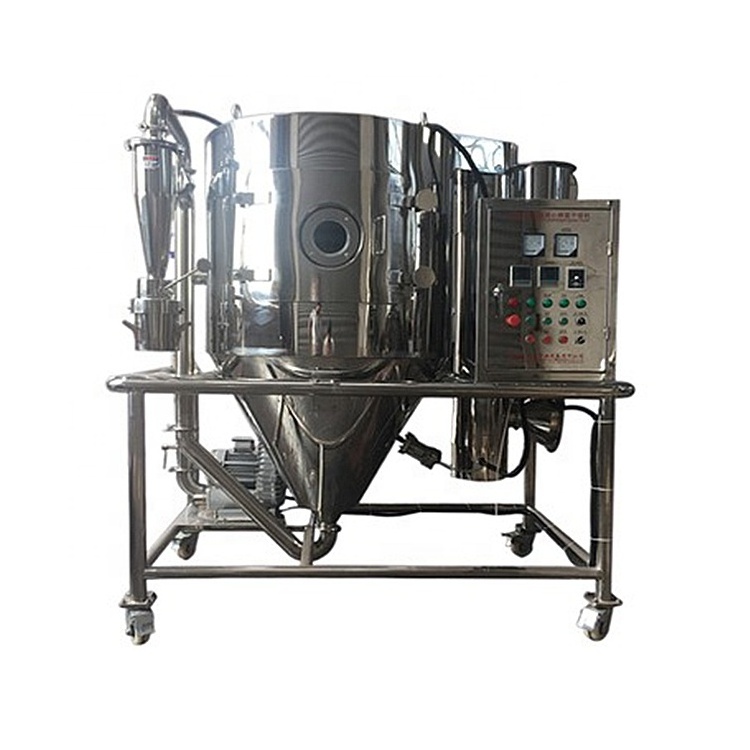

Laboratory Atomizer Spray Dryer Price Lab Scale Centrifugal Spray Drying Machine
Products Description
Introduction:
Spray drying is a more widely used process in the liquid process shaping and drying industry. It is especially suitable for generating powdery and granular solid products from solutions, emulsions, suspensions and pasty liquid materials. Therefore, when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product should meet the standards, spray drying is an ideal process.
Spray drying is a more widely used process in the liquid process shaping and drying industry. It is especially suitable for generating powdery and granular solid products from solutions, emulsions, suspensions and pasty liquid materials. Therefore, when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product should meet the standards, spray drying is an ideal process.
Our Advantages
working principle：
The working process of this unit is that the material liquid is input through the diaphragm pump under high pressure, spraying mist-like droplets, and then descending in parallel with the hot air. Most of the powder particles are collected by the discharge port at the bottom of the tower, and the waste gas and its tiny powder are separated by the cyclone separator. , The exhaust gas is discharged by the exhaust fan, and the powder is collected by the pollinator at the lower end of the cyclone separator. The outlet of the fan can also be equipped with a secondary dust removal device.
Advantages:
1. The drying speed is fast, and the surface area of the material liquid is greatly increased after atomization. In the hot air flow, 95%-98% of the water can be evaporated instantly, and the drying time is only a few seconds, which is especially suitable for the drying of heat-sensitive materials.
2. The product has good uniformity, fluidity and solubility, high purity and good quality.
3. Simplified production process and convenient operation and control. For liquids with a moisture content of 40-60% (up to 90% for specific materials), they can be dried into powder products at one time, without crushing and screening after drying, reducing production procedures and improving product purity. The product particle size, bulk density and water content can be adjusted by changing the operating conditions within a specific range, and the control and management are very convenient.
The working process of this unit is that the material liquid is input through the diaphragm pump under high pressure, spraying mist-like droplets, and then descending in parallel with the hot air. Most of the powder particles are collected by the discharge port at the bottom of the tower, and the waste gas and its tiny powder are separated by the cyclone separator. , The exhaust gas is discharged by the exhaust fan, and the powder is collected by the pollinator at the lower end of the cyclone separator. The outlet of the fan can also be equipped with a secondary dust removal device.
Advantages:
1. The drying speed is fast, and the surface area of the material liquid is greatly increased after atomization. In the hot air flow, 95%-98% of the water can be evaporated instantly, and the drying time is only a few seconds, which is especially suitable for the drying of heat-sensitive materials.
2. The product has good uniformity, fluidity and solubility, high purity and good quality.
3. Simplified production process and convenient operation and control. For liquids with a moisture content of 40-60% (up to 90% for specific materials), they can be dried into powder products at one time, without crushing and screening after drying, reducing production procedures and improving product purity. The product particle size, bulk density and water content can be adjusted by changing the operating conditions within a specific range, and the control and management are very convenient.
Specification
|
Model
|
SY-5
|
SY-25
|
SY-50
|
SY-150
|
SY-300
|
||||
|
Inlet temperature
(℃)
|
≤250
|
|
|
|
|
||||
|
Outlet
temperature(℃)
|
80-90
|
|
|
|
|
||||
|
Max water evaporation (kg/h)
|
5
|
25
|
50
|
150
|
300
|
||||
|
Transmission form of centrifugal atomizer
|
compressed air drive
|
mechanical drive
|
|
|
|
||||
|
Rotate speed(rpm)
|
25000
|
22000
|
18000
|
18000
adjustable
|
15000
adjustable
|
||||
|
Atomizing disc diameter(mm)
|
50
|
120
|
120
|
150
|
150
|
||||
|
Heat source
|
electric
|
electric
|
Electric+
Steam/oil/gas
|
Electric+
Steam/oil/gas
|
Equipped by user
|
||||
|
Power(kw)
|
13.5
|
31.5
|
60
|
99
|
|
||||
|
Dry powder recovery(%)
|
≥95
|
|
|
|
|
||||
