Quick Details
-
Warranty:
-
10 years quality warranty, 25 years output power
-
Brand Name:
-
Trina/Risen/JA
-
Model Number:
-
TNP-445/450/455/460/530/535/540/545w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2120x1052x40mm
-
Name:
-
PERC 445w 450w 455w 460w mono solar panel 500w solar power panel
-
Power:
-
445/45/455/460/530/535/540/545w
-
Weight(kg):
-
25.5
-
Frame:
-
Anodized aluminum Alloy Silver color
-
Front glass:
-
High transmission, low iron, tempered ARC Glass
-
Cells:
-
6*24 monocrystalline half cut solar cells
-
Junction box:
-
IP 68 Rated, 3diodes, 1500VDC
-
Cabel cross section size:
-
4mm2
-
Cable Length:
-
Portrait: 270mm, Landscaple: 270mm
-
Application:
-
Class A
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
20-21.1%
-
Warranty:
-
10 years quality warranty, 25 years output power
-
Brand Name:
-
Trina/Risen/JA
-
Model Number:
-
TNP-445/450/455/460/530/535/540/545w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2120x1052x40mm
-
Name:
-
PERC 445w 450w 455w 460w mono solar panel 500w solar power panel
-
Power:
-
445/45/455/460/530/535/540/545w
-
Weight(kg):
-
25.5
-
Frame:
-
Anodized aluminum Alloy Silver color
-
Front glass:
-
High transmission, low iron, tempered ARC Glass
-
Cells:
-
6*24 monocrystalline half cut solar cells
-
Junction box:
-
IP 68 Rated, 3diodes, 1500VDC
-
Cabel cross section size:
-
4mm2
-
Cable Length:
-
Portrait: 270mm, Landscaple: 270mm
-
Application:
-
Class A

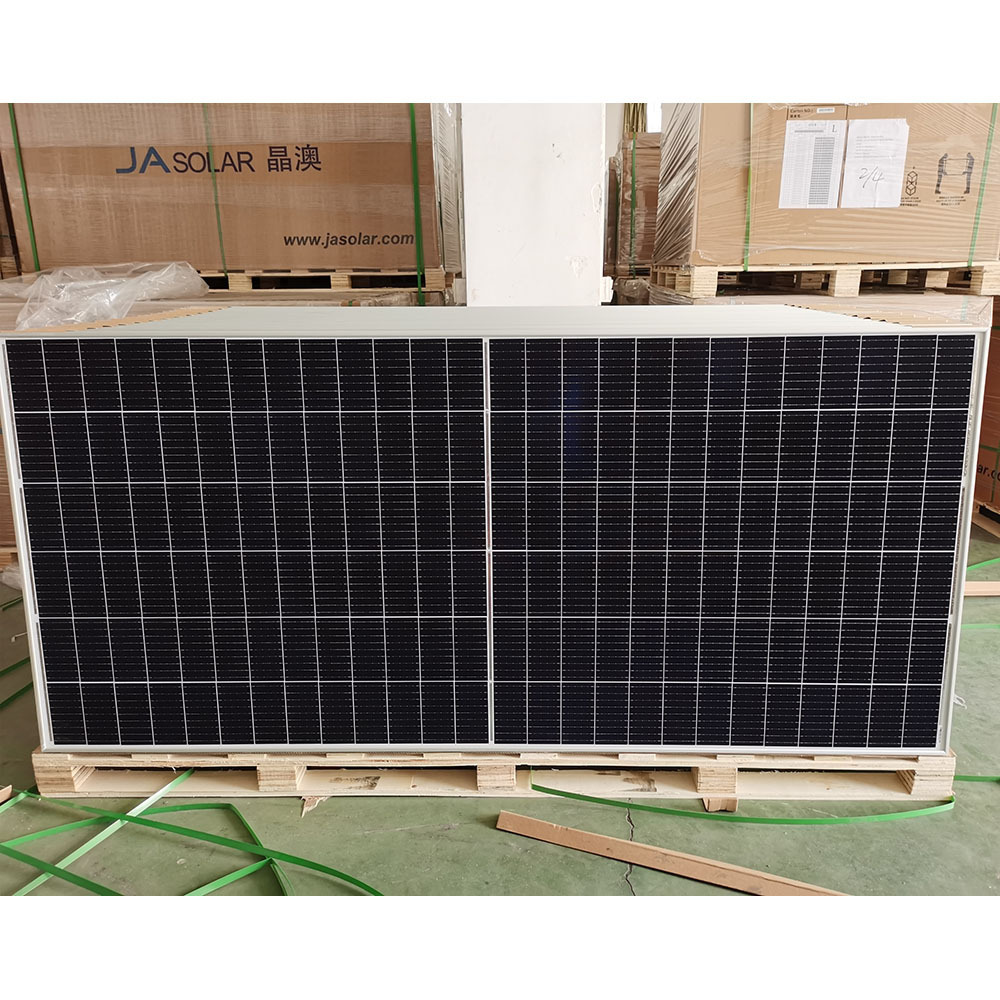

Trina/Risen/JA/Longi half cut PERC 445w 450w 455w 535w 540 545w mono solar panel 500w solar power panel
Datasheet
| Type | JAM72S20-450/MR | JAM72S20-455/MR | JAM72S20-460/MR | JAM72S20-465/MR | JAM7 2 S20-4 70 /MR |
| Rated Maximum Power(Pmax) [W] | 450 | 455 | 460 | 465 | 470 |
| Open Circuit Voltage(Voc) [V] | 49.7 | 49.85 | 50.01 | 50.15 | 50.31 |
| Maximum Power Voltage(Vmp) [V] | 41.52 | 41.82 | 42.13 | 42.43 | 42.69 |
| Short Circuit Current(Isc) [A] | 11.36 | 11.41 | 11.45 | 11.49 | 11.53 |
| Maximum Power Current(Imp) [A] | 10.84 | 10.88 | 10.92 | 10.96 | 11.01 |
| Module Efficiency [%] | 20.2 | 20.4 | 20.6 | 20.8 | 21.1 |
| Temperature Coefficient of Isc(α_Isc) | +0.044%/℃ | ||||
| Temperature Coefficient of Voc(β_Voc) | -0.272%/℃ | ||||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.35%/℃ | ||||
Datasheet
| Type | JAM72S30-530/MR | JAM72S30-535/MR | JAM72S30-540/MR | JAM72S30-545/MR | JAM72S30-550/MR |
| Rated Maximum Power(Pmax) [W] | 530 | 535 | 540 | 545 | 550 |
| Open Circuit Voltage(Voc) [V] | 49.3 | 49.45 | 49.6 | 49.75 | 49.9 |
| Maximum Power Voltage(Vmp) [V] | 41.31 | 41.47 | 41.64 | 41.8 | 41.96 |
| Short Circuit Current(Isc) [A] | 13.72 | 13.79 | 13.86 | 13.93 | 14 |
| Maximum Power Current(Imp) [A] | 12.83 | 12.9 | 12.97 | 13.04 | 13.11 |
| Module Efficiency [%] | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 |
| Temperature Coefficient of Isc(α_Isc) | +0.045%/℃ | ||||
| Temperature Coefficient of Voc(β_Voc) | -0.0275%/℃ | ||||
| Temperature Coefficient of Pmax(γ_Pmp) | - 0.35 %/℃ | ||||
About us
Topsky is a leading manufacturer of solar cells and solar modules which was established in 1998. Our solar panel factory has 360 skilled workers, 10 serior R&D engineers, 15 overseas salesperson, 2 after-sale service clerks.
We work tirelessly to improve the efficiency of our Photovoltatic cells and and modules as well as our system costs to provide our customers with world-class solar solutions and to ensure competitiveness of PV with conventional sources of electricity. With a 10-year product and a 25-year linear performance guarantee, backed by leading insurance companies.
Topsky can provide solar cells & solar modules with 1.2GW annual capacity and establish long term cooperation with many tier 1 brand factories. We also offer OEM, ODM, OBM service as per customer requirement and aim at making a greater contribution to the usage of solar energy globally. Our company always pursues the philosophy of people-oriented, environmental friendly and energy-saving. We together with our partners are committed to make mutual contribution to a sustainable society.
>>>>>Pre sale:
- Our sales representative and engineer work together to answer your questions and offer solution for free
- We choose the best product for you to make sure it worth its real value
- We design the best solution with good perfomance for you,manwhile save every cent of your money.
>>>>>After sale:
We provide 10 years Warranty for the product, 10 years warranty for 90% p ower production ,25 years warranty for 80% power production.
We Topsky Energy are Manufacturers(TP Energy) and reseller of tier 1 brand =solar panels with competitive price and good quality. We welcome your any inquiry.
