Quick Details
-
Max. Loading Capacity:
-
50kg
-
Weight (KG):
-
500 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leader
-
Voltage:
-
220V/380V/415V etc
-
Dimension(L*W*H):
-
1000x1400 x1200mm
-
Power (kW):
-
1.5 kW
-
Product name:
-
automatic Spices Mixing Machine /dry Powder Mixing Machine
-
Keyword:
-
Commercial Herbs Spice Powder Mixer3D rotating drum mixer
-
Function:
-
Mixer Blender
-
Application scope:
-
Food Chemical
-
Control:
-
Button
-
Volume:
-
1-1000L
-
Surface Treatment:
-
Mirror Finish
-
Machine Type:
-
Industiral Blender Mixer Machine
-
Feature:
-
High Efficency Mixing Machine
Quick Details
-
Barrel Volume (L):
-
100
-
Max. Loading Volume (L):
-
80 L
-
Range of Spindle Speed(r.p.m):
-
1 - 12 r.p.m
-
Max. Loading Capacity:
-
50kg
-
Weight (KG):
-
500 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leader
-
Voltage:
-
220V/380V/415V etc
-
Dimension(L*W*H):
-
1000x1400 x1200mm
-
Power (kW):
-
1.5 kW
-
Product name:
-
automatic Spices Mixing Machine /dry Powder Mixing Machine
-
Keyword:
-
Commercial Herbs Spice Powder Mixer3D rotating drum mixer
-
Function:
-
Mixer Blender
-
Application scope:
-
Food Chemical
-
Control:
-
Button
-
Volume:
-
1-1000L
-
Surface Treatment:
-
Mirror Finish
-
Machine Type:
-
Industiral Blender Mixer Machine
-
Feature:
-
High Efficency Mixing Machine

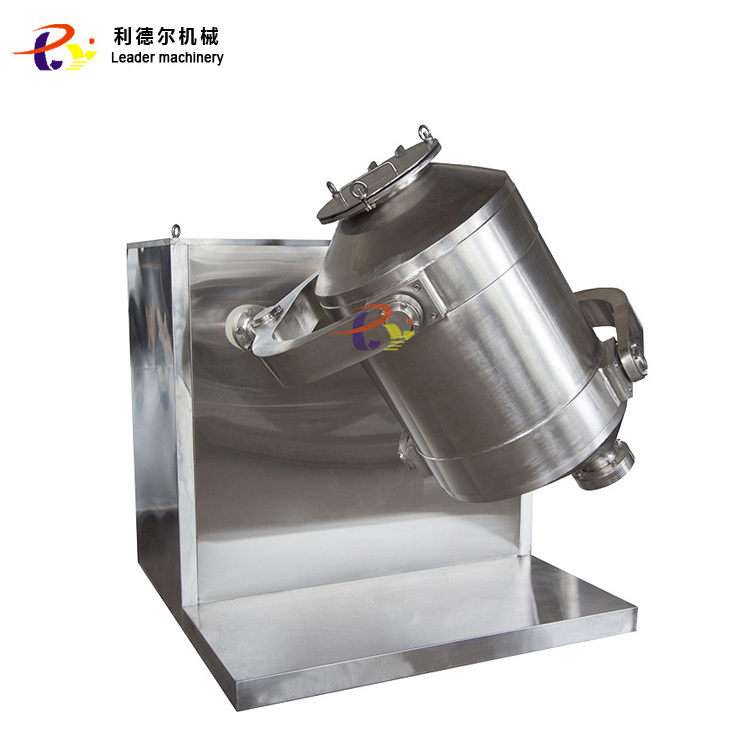

Commercial Herbs Spice Powder Mixer /automatic Spices Mixing Machine /dry Powder Mixing Machine
Product Application
3D mixer have high uniformity mixing efficiency.it is widely used for mixing chemical powder,battery,metal powder,magnetic materials,feed,new materials,phosphors, polishing materials,rare earth materials, plastics,metallurgy,food,and other powder-to-powder mixing and scientific research unit industries .
Working principle
When the machine is working, the mixer has a three-dimensional movement, and it revolves while rotating. On the one hand, the mixer has a strong turbulence effect, accelerating the flow and diffusion of materials, and on the other hand, it has flipping and translational motions to overcome The influence of centrifugal force prevents the material from segregating and agglomeration of specific gravity, and there is no dead angle to ensure uniform mixing.
Product features
1.It is used for the high uniformity mixing of powder, granular materials in the industries such as chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units,
2.The mixing barrel is moved with multi-direction. Materials are out of centrifugal force and no gravity segregation and accumulation. Each component can be of intervallic weight ratio and the mixing ratio could be above 99.9%. So it will be the more ideal mixer.
3.The loading capacity of tube is large which could be largest 80% (ordinary mixer only be 40%). It features high efficiency, short mixing time.
4.All parts in the barrel is circular arc with precision polishing.
Technical parameter
|
Product name
|
Industrial Powder Mixer Dry Powder Mixing Machine | |||||||
|
Model
|
SBH15
|
SBH50
|
SBH100
|
SBH200
|
SBH400
|
SBH600
|
SBH800
|
SBH1000
|
|
Barrel capacity(L)
|
15
|
50
|
100
|
200
|
400
|
600
|
800
|
1000
|
|
Max loading capacity (L)
|
12
|
40
|
80
|
160
|
320
|
480
|
640
|
800
|
|
Max loading capacity (kg)
|
7.5
|
25
|
50
|
100
|
200
|
300
|
400
|
600
|
|
Speed of driving shaft (r/min)
|
0~8
|
|||||||
|
Motor power(kw)
|
0.37
|
1.1
|
1.5
|
2.2
|
4
|
5.5
|
7.5
|
7.5
|
|
Overall dimensions (mm)
|
700× 1000× 700
|
500× 600× 800
|
1000× 1400× 1200
|
1200× 1700× 1500
|
1400× 1800× 1600
|
1900× 2100× 2250
|
2200× 2400× 2300
|
2250× 2600× 2600
|
|
Total weight (kg)
|
200
|
300
|
500
|
800
|
1200
|
1500
|
2000
|
2500
|
1.In order to suggest suitable model to you,could you tell me the following questions?
a.What's your mixing materials____?
b.What's the density of the material____?
c.What's the capacity per batch_____?
d. What's the ribbon mixer's materials do you need?Carbon steel or stainless steel304/316?_____
e.Other special requirements?
2.How long is your warranty of ribbon mixer?
We provide 12 months warranty after-sale.
3.What is the quality of your products?
Our products have best quality in the manufacture,we have professional produce technology,and hard-working sale&servise team.we will do strict quality detection before shipping products,to ensure every product has best working performance. And our products passed CE,ISO,CCC,SGS certifications,exported to lots of countries,such as Russia,England,Australia,Bulguira,South Korea,USA,Indonesia,India,Ireal,Brazil,etc.
Our company mainly produce all kinds of pulverizer,mixer,feeder,conveyor,vibrating sieve,packing machine etc.Maybe you will be interested in the below products,if you want to know more details,you can click the correspong picture.
1.For small size, LCL is ok,then will pack with plywood case or fumigation wooden case
2.For bigger size,need to put it into 20'' container
