Quick Details
-
Operating Wavelength:
-
1540~1563nm&ITU-TG.692
-
Work Bandwidth:
-
47~862 MHz
-
Input Level:
-
18~28dBmV
-
Laser Type:
-
1550nm DFB LD
-
RF Port:
-
F-Female
-
Power Supply:
-
90 ~ 260VAC,50/60Hz
-
Network Management:
-
RJ45, RS232, RS485
-
Dimension:
-
485*447*45mm
-
Application:
-
HFC, FTTx
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOUXIN
-
Model Number:
-
OT1550E-xx
-
Operating Wavelength:
-
1540~1563nm&ITU-TG.692
-
Work Bandwidth:
-
47~862 MHz
-
Input Level:
-
18~28dBmV
-
Laser Type:
-
1550nm DFB LD
-
RF Port:
-
F-Female
-
Power Supply:
-
90 ~ 260VAC,50/60Hz
-
Network Management:
-
RJ45, RS232, RS485
-
Dimension:
-
485*447*45mm
-
Application:
-
HFC, FTTx
Detailed Info

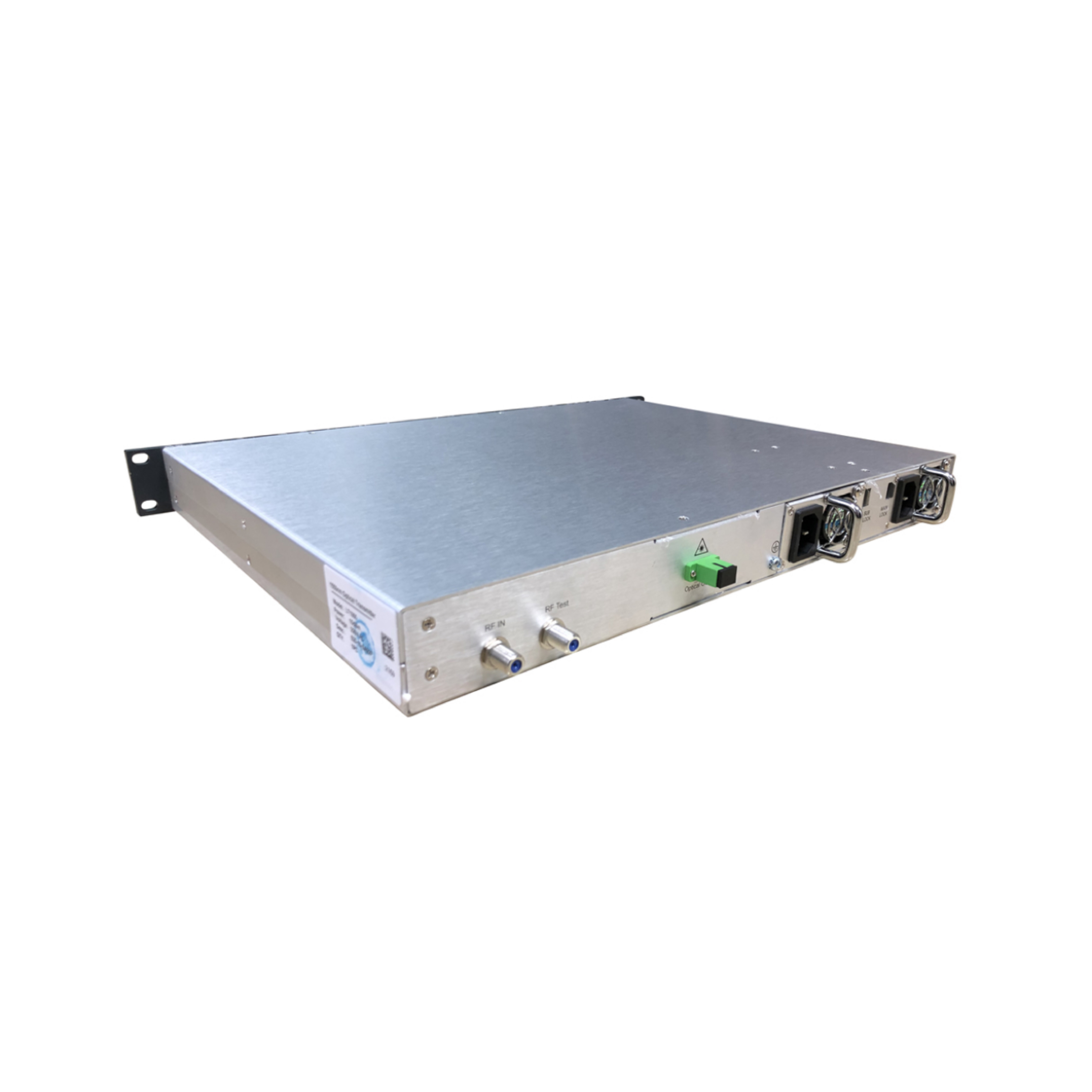

Externally modulated optical transmitter with SNMP management, indoor, 1550nm, 2 output port, ≥7mW output optical power, 47~862MHz, SBS, 13/16/18dBm or adjustable, imperial F type female port, FC/APC or SC/APC connector, RJ45 and RS232 port, VFD, 19" 1U.
Features:
(1) Narrow bandwidth (Typ.=1MHz), lower noise, DFB continuous wave laser
(2) The operating bandwidth is up to 47~1080MHz
(3) Perfect index: Unique innovation technology, provide excellent CNR, CTB, CSO & SBS
(4) Perfect RS232 communication interface
(5) SNMP network management function optional
(6) 1+1 backup power supply optional
(7) Casing temperature auto-control
(8) Excellent P/P ratio
(9) AGC/MGC mode is optional at spot. OMI can be optimized at spot
Description
RFTV is a unidirectional analogue and digital video broadcast. It adopts high efficiency modulation mode for RF carrier wave and its economy, flexibility and bandwidth validity is beyond comparison of IPTV. By adopting EPON, GEPON or P2P access mode to realize triple-play and FTTx, RFTV broadcasting network in 1550nm optical wavelength still plays an important role and 1550nm externally modulated optical transmitter is the core equipment in this system.
