Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe
Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe

Seamless Grade 1 Grade 2 50 x50 mm x3 mm square tubing Pure Titanium Square Tube/ Titanium Rectangular Pipe

FOB Reference Price: Get Latest Price
≥10 Kilograms
US $34
≥50 Kilograms
US $26
≥100 Kilograms
US $18
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
titanium tube/pipe
Material:
GR1 Gr2 titanium, GR1,GR2,GR5,GR7,GR9,GR12
Outer Diameter:
≤114mm
Length:
≤6000mm
Application:
Industrial
Grade:
Gr2
Wall Thickness:
≥0.1mm
Inside Diameter:
≥1mm
Product Name:
ASTM B363 Gr2 titanium square tube
Type:
Seamless/Welded
Condition:
Annealed
Surface:
Polished,Pickling, Sandblasting
Shape:
Round.Square.Rectangle.Flat
Test:
Flattening test, Flaring test, Nondestructive test
Advantage:
High Strength and Excellent Corrosion Resistance
Certificates:
Good resistance to effect of heat and low temperature

Quick Details

Standard:
ASTM B338, ASTM B337,ASTM B338,ASTM B861, ASTM and Other related standards
Place of Origin:
Shaanxi
Brand Name:
jimiyun
Model Number:
titanium tube/pipe
Material:
GR1 Gr2 titanium, GR1,GR2,GR5,GR7,GR9,GR12
Outer Diameter:
≤114mm
Length:
≤6000mm
Application:
Industrial
Grade:
Gr2
Wall Thickness:
≥0.1mm
Inside Diameter:
≥1mm
Product Name:
ASTM B363 Gr2 titanium square tube
Type:
Seamless/Welded
Condition:
Annealed
Surface:
Polished,Pickling, Sandblasting
Shape:
Round.Square.Rectangle.Flat
Test:
Flattening test, Flaring test, Nondestructive test
Advantage:
High Strength and Excellent Corrosion Resistance
Certificates:
Good resistance to effect of heat and low temperature
Product Overview

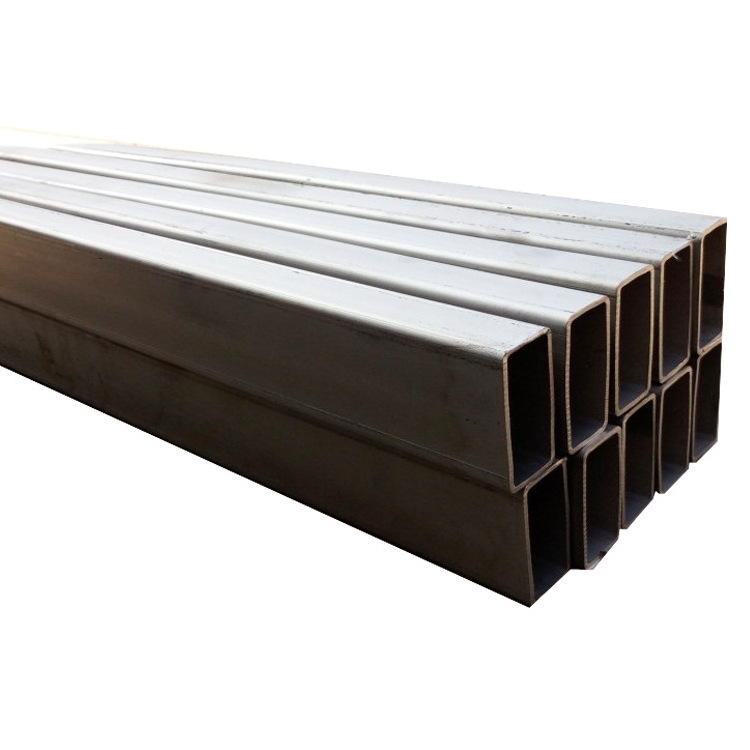

Titanium square tube

What is Titanium square pipe? Titanium square pipe, is a name for square pipe and rectangular pipe, that is, the side length is equal and not equal titanium pipe.It is made of titanium through technological processing.In general, titanium is unpacked, flattened, crimped, welded into a round tube, which is rolled into a square tube and then cut to the required length.Square tubes can be made into straight seam square tubes and seamless square tubes. When the temperature is not higher than 540℃, the oxide film of the titanium square tube will not become thick. However, at higher heat treatment temperature, the oxidation rate of the oxide film will accelerate, and the inner diffusion layer of the oxide film will become a layer of pollution.Oxygen contamination layer has a higher brittleness ratio, which leads to cracks and damage on the surface of parts.Removal of oxygen pollution layer includes mechanical processing, pickling, chemical grinding and other methods.During heat treatment, the heating time should be shortened as far as possible under the premise of protective heat treatment.It can also be carried out in vacuum furnaces or inert gas furnaces. Pollution caused by heating of titanium square pipe fittings in air furnaces should be avoided or appropriately reduced.
Titanium Tubes / Titanium Pipes.
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.
Seamless titanium tube process :
Titanium sponge—Compacting electrodes—melting—Forge—Bar billets—Extruding—Rolled—Straightening—Seamless tube

Welded titanium tube process:
Titanium sponge—Compacting electrodes—melting—Forge—Plate billets—Hot rolled—Cold rolled—Titanium scrap—Welded—Welded tube
Product name
Titanium square pipe
Standard
ASTM B861，ASTM B338,ASME SB861，ASME SB338
Material
Pure titanium/Titanium alloy
Grade
Gr1，Gr2，Gr5，Gr7，Gr9，Gr10，Gr12
Feature
Fine Corrosion Resistance/Light
Application
Industrial, Heating Exchanging, Condenser, Medical, Chemical, Aerospace, Oil, Sports, Bike etc.
Surface
Pickling，Polished
Packaging
Ply-wooden case, carton box
Shape
Round/Square/Rectangle
Supply Ability
500 Ton/Tons per Month
Titanium pipe /titanium tube Chemical composition
Dimension and Tolerance of titanium tube:
Outside diameter, in.(mm)
Diameter tolerance, in.(mm)
Permissible variations , wall thinckness, t, % in.(mm)
<1 (25.4)
±0.004( ± 0.012)
±10
1-1½(25.4-38.1)
±0.005( ±0.127 )
±10
1½-2(38.1-50.8)
±0.006( ± 0.152)
±10
2-2½(50.8-63.5)
±0.007( ± 0.178)
±10
2½-3½(63.5-88.9)
±0.010( ± 0.254)
±10
Product packaging
