Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2390*980*1965mm
-
Machine Weight:
-
1500 kg
-
Keyword:
-
DY620E All Electric Wheel Loader
-
Color:
-
Grey and red
-
Min. turning radius:
-
1980mm
-
Max. lifting height:
-
2750mm
-
Rated Speed:
-
8km/h
-
Transmission:
-
4 WD
-
Working Oil Flow:
-
30L/min
-
Attachments:
-
Optioanl
-
Application:
-
Earthmoving
Quick Details
-
Engine Brand:
-
Electric
-
Power:
-
12 kWh/300 Ah Lead-acid Battery
-
Brand Name:
-
TAIAN
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2390*980*1965mm
-
Machine Weight:
-
1500 kg
-
Keyword:
-
DY620E All Electric Wheel Loader
-
Color:
-
Grey and red
-
Min. turning radius:
-
1980mm
-
Max. lifting height:
-
2750mm
-
Rated Speed:
-
8km/h
-
Transmission:
-
4 WD
-
Working Oil Flow:
-
30L/min
-
Attachments:
-
Optioanl
-
Application:
-
Earthmoving

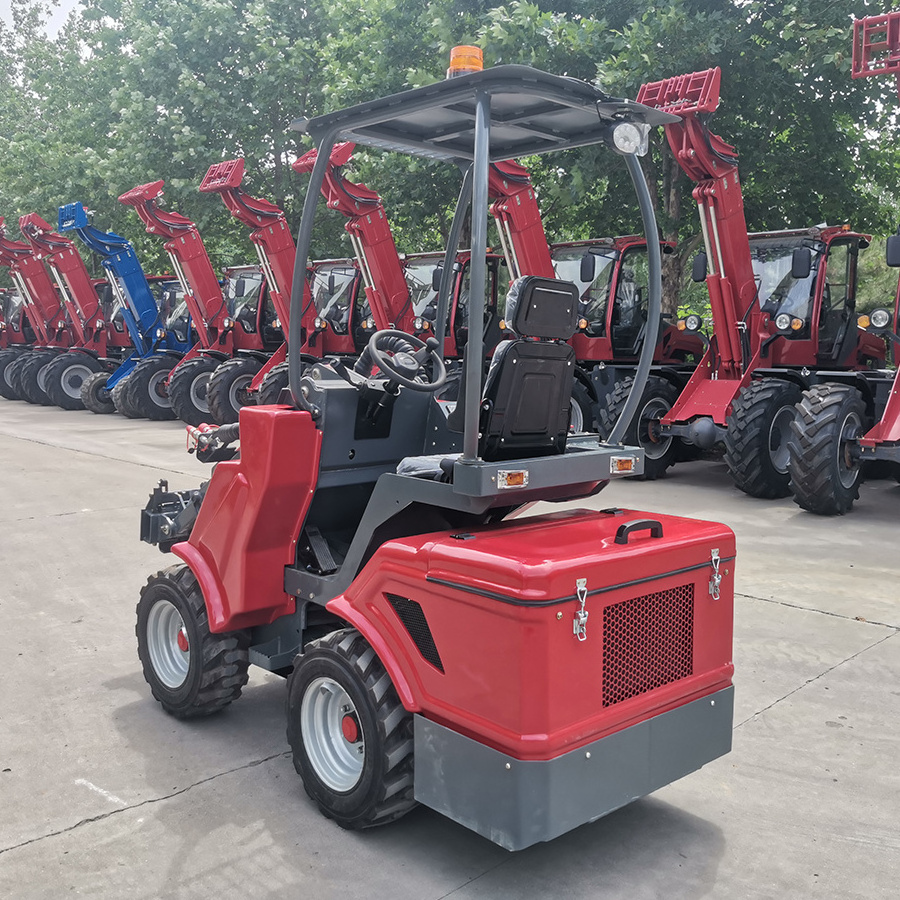

4 Wheel Loader Electric Mini Loader DY620E Avant Articulated Loader
DY620E Wheel Loader Specifications:
TAIAN electric power mini loader, the DY620E, is a zero emission , low noise and hydrostatic telescopic wheel loader, it’s full-electric drive , battery-powered compact loader , which can perfect to replace fuel machine in multiple working area.
|
Model |
DY620E |
|
Overall Dimensions (L*W*H) |
2390*980* 1965 mm |
|
Max. Reach (Boom Extended) |
2750mm |
|
Max. Reach (Boom Retracted) |
2 22 0mm |
|
Rated Loading Capacity |
500kg-800kg |
|
Min. Turning Radius |
1980mm |
|
Turning Angle |
40 0 |
|
Transmission |
4WD / Hydrostatic |
|
Speed |
8 km/h |
|
Weight |
1500 kg |
|
Standard Tire |
23X8.5-12 |
|
Tire Pressure |
2.8 bar |
|
Oil Tank Capacity |
35L |
|
Working Pressure |
180bar |
|
Working Oil Flow |
30L/min |
|
Tracking pressure |
230Bar |
|
Oil Model(mineral oil) |
L-HL46 |
|
Battery |
Lead-acid Battery capacity |
|
Battery Capacity |
1 2 kWh/ 30 0Ah |
|
Power |
Electric |
|
Angle of Departure |
25° |
DY620E electric loader features:
Ø Battery driven, 100% full electric ;
Ø Lead-acid batteries ;
Ø 300 Ah/12kWh battery capacity ;
Ø External battery charger ;
Ø No exhaust emissions ;
Ø L ow noise ;
Ø Hydrostatic 4WD ;
Ø Italian PWG brand drive motor ;
Ø Auxiliary hydraulics oil flow max. 30 L /min ;
Ø 1 way hydraulic output with 1 electric output on the front;
Ø Hydraulic oil cooler ;
Ø Telescopic boom ;
Ø Handbrake parking brake ;
Ø ROPS + FOPS canopy ;
2 front &1 rear LED work lights ;
