Quick Details
-
Brand Name:
-
YANING
-
Dimension(L*W*H):
-
595*595*600
-
Weight:
-
5 KG
-
Product name:
-
Pocket Air Filter
-
Application:
-
Air Filtration System
-
Type:
-
China Hepa Filter
-
Material:
-
Non-woven Fabrics
-
Keyword:
-
Pocket Filter Bag Filter
-
Color:
-
Customized Color
Quick Details
-
Core Components:
-
Filter
-
Efficiency:
-
40%-98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YANING
-
Dimension(L*W*H):
-
595*595*600
-
Weight:
-
5 KG
-
Product name:
-
Pocket Air Filter
-
Application:
-
Air Filtration System
-
Type:
-
China Hepa Filter
-
Material:
-
Non-woven Fabrics
-
Keyword:
-
Pocket Filter Bag Filter
-
Color:
-
Customized Color
Products Description

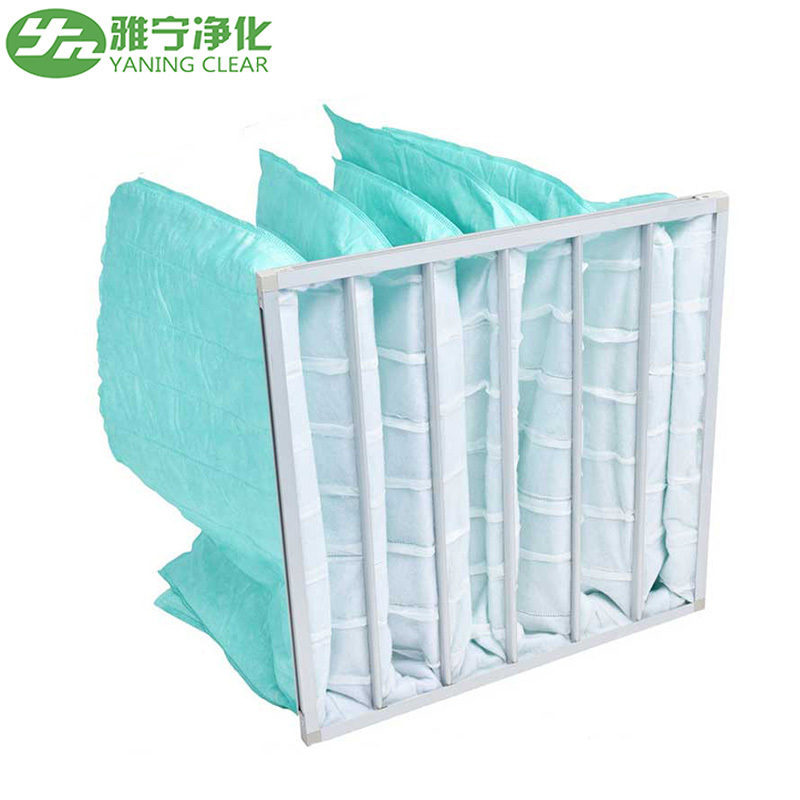

Medium-efficiency pocket filter is mainly used in central air-conditioning and centralized air supply systems, and can be used for intermediate-level filtration of air-conditioning systems to protect the next-level filter and the system itself in places where air purification is not strictly required. The air processed by the medium efficiency filter can be sent directly to the user. Bag-type medium effect filter, frame with cold plate spray, galvanized sheet and other forms, filter material, non-woven fabric, glass fiber, etc.
Applications
Medium efficiency pocket filters are widely used in industrial air purification systems, pharmaceuticals, hospitals,
electronics, food and other industrial purification, and can also be used as front-end filtration of high-efficiency air filters
to reduce the load of high-efficiency air filters and extend their use. life. Due to the large windward surface of the bag filter,
it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present.
electronics, food and other industrial purification, and can also be used as front-end filtration of high-efficiency air filters
to reduce the load of high-efficiency air filters and extend their use. life. Due to the large windward surface of the bag filter,
it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present.
Product Display
Product Paramenters
|
Model
|
Dimension
(W*H*D)
|
Bag
Quantity
|
Rate air
volume(m³/h)
|
Initial pressure
(Pa)
|
Efficiency(grade)% EN779
|
|
|
|
YN-F5-01
|
595*595*600
|
6
|
3200
|
50
|
40-50
Colorimetric
|
F5
|
|
|
YN-F5-02
|
595*595*600
|
5
|
2700
|
|
|
|
|
|
YN-F5-03
|
595*495*600
|
6
|
2500
|
|
|
|
|
|
YN-F5-04
|
495*295*600
|
6
|
1600
|
|
|
|
|
|
YN-F5-05
|
495*295*600
|
4
|
1300
|
|
|
|
|
|
YN-F6-01
|
595*595*600
|
6
|
3200
|
55
|
60-70
Colorimetric
|
F6
|
|
|
YN-F6-02
|
595*595*600
|
5
|
2700
|
|
|
|
|
|
YN-F6-03
|
595*495*600
|
6
|
2500
|
|
|
|
|
|
YN-F6-04
|
495*295*600
|
6
|
1600
|
|
|
|
|
|
YN-F6-05
|
495*295*600
|
4
|
1300
|
|
|
|
|
|
YN-F7-01
|
595*595*600
|
6
|
3200
|
110
|
80-85
Colorimetric
|
F7
|
|
|
YN-F7-02
|
595*595*600
|
5
|
2700
|
|
|
|
|
|
YN-F7-03
|
595*495*600
|
6
|
2500
|
|
|
|
|
|
YN-F7-04
|
495*295*600
|
6
|
1600
|
|
|
|
|
|
YN-F7-05
|
495*295*600
|
4
|
1300
|
|
|
|
|
|
YN-F8-01
|
595*595*600
|
6
|
3200
|
120
|
90-95
Colorimetric
|
F8
|
|
|
YN-F8-02
|
595*595*600
|
5
|
2700
|
|
|
|
|
|
YN-F8-03
|
595*495*600
|
6
|
2500
|
|
|
|
|
|
YN-F8-04
|
495*295*600
|
6
|
1600
|
|
|
|
|
|
YN-F8-05
|
495*295*600
|
4
|
1300
|
|
|
|
|
|
YN-F9-01
|
595*595*600
|
8
|
3200
|
120
|
98-98
Colorimetric
|
F9
|
|
|
YN-F9-02
|
595*595*600
|
6
|
2700
|
|
|
|
|
|
YN-F9-03
|
595*495*600
|
6
|
1600
|
|
|
|
|
|
YN-F9-04
|
495*295*600
|
4
|
2200
|
|
|
|
|
|
YN-F9-05
|
495*295*600
|
4
|
1300
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
YN-FB5-01
|
595*595*46
|
-
|
3300
|
≤90
|
45
|
-
|
|
|
YN-FB5-02
|
495*495*46
|
|
2300
|
|
|
|
|
|
YN-FB5-03
|
295*595*46
|
|
1600
|
|
|
|
|
|
YN-FB6-01
|
595*595*46
|
|
3600
|
≤105
|
65
|
|
|
|
YN-FB6-02
|
495*495*46
|
|
2400
|
|
|
|
|
|
YN-FB6-03
|
295*595*46
|
|
1800
|
|
|
|
|
|
YN-FB7-01
|
595*595*46
|
|
3300
|
≤120
|
85
|
|
|
|
YN-FB7-02
|
495*495*46
|
|
2300
|
|
|
|
|
|
YN-FB7-03
|
295*595*46
|
|
1600
|
|
|
|
|
|
YN-FB8-01
|
595*595*46
|
|
2500
|
≤140
|
95
|
|
|
|
YN-FB8-02
|
495*495*46
|
|
1700
|
|
|
|
|
|
YN-FB8-03
|
295*595*46
|
|
1200
|
|
|
|
|
Features
Function: Capturing 1-5um of dust particles
Type: frameless and framed bag
Filter: Special nonwoven or glass fiber
Efficiency: 60%~95%@1~5um (colorimetric method)
