Quick Details
-
Model Number:
-
DC-AGDH
-
Linearity/Hysteresis:
-
±0.1%FS
-
Repeatability:
-
±0.25%FS
-
UNITS:
-
12 UNITS for selection
-
Battery:
-
1.5v AAA battery
-
net weight:
-
170g
-
working temperature:
-
0~40℃
-
Characteritic:
-
data storage
-
Name:
-
Pressure Gauge Digital Manometer
-
Certification:
-
CE ISO9001
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
China
-
Brand Name:
-
DECCA
-
Model Number:
-
DC-AGDH
-
Linearity/Hysteresis:
-
±0.1%FS
-
Repeatability:
-
±0.25%FS
-
UNITS:
-
12 UNITS for selection
-
Battery:
-
1.5v AAA battery
-
net weight:
-
170g
-
working temperature:
-
0~40℃
-
Characteritic:
-
data storage
-
Name:
-
Pressure Gauge Digital Manometer
-
Certification:
-
CE ISO9001
Product Overview
Product Overview

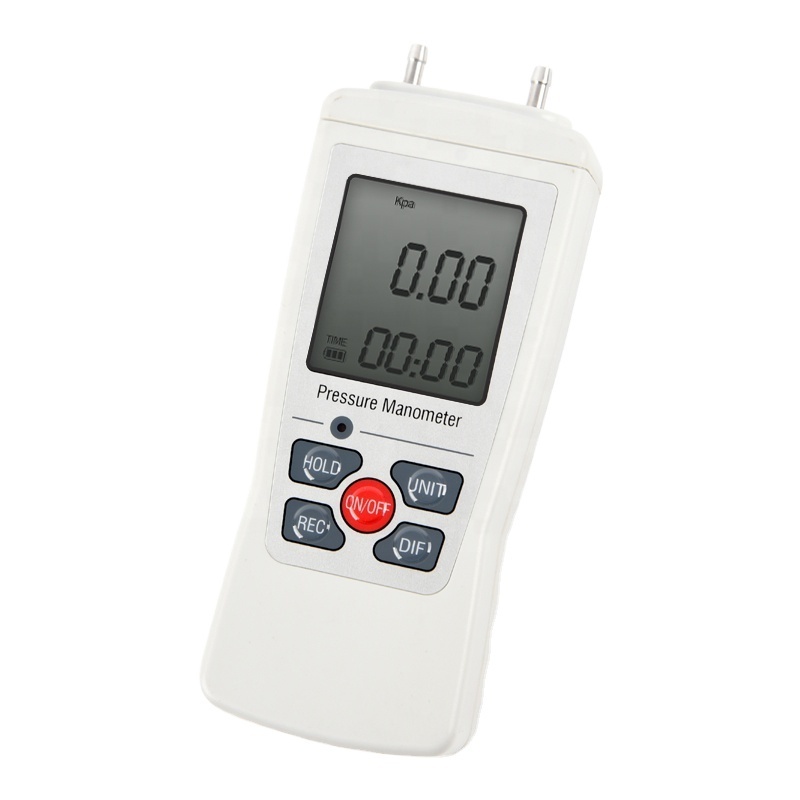

Digital differential pressure manometer
Differential pressure manometer can measure 0 to 500 kPa pressure difference, suitable for ventilation and air conditioning system measurement and field calibration, clean room, or any gas pressure system fault detection, widely used. Easy to operate, clear to read, for HVAC technicians, operation and maintenance engineers and scientific researchers indispensable testing tools.
FEATURES AT A GLANCE
FEATURES AT A GLANCE
2.1, high-definition display screen, can set up backlight function, easy to read the measurement data clearly in dark environment; 2.2, Have a difference mode and a record mode to choose from; 2.3, New design, easy to operate and durable; 2.4, high sensitivity sensor, high accuracy, rapid sensitivity, accurate measurement; 2.5, Up to 12 differential pressure units; 2.6, Data-keeping functions; 2.7, has 5 minutes no operation automatic shutdown function.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
|
Specifications
|
AGDH-3
|
AGDH-6
|
AGDH-10
|
AGDH-15
|
AGDH-35
|
AGDH-100
|
AGDH-150
|
AGDH-200
|
AGDH-300
|
||||||||
|
Unit
|
mbar Kpa Kgf /cm² cmH 2O, inH 2O, ftH 2O, inHg, mmHg ,Ozf /in² ,Psi ,m/s ,fpm
|
|
|
|
|
|
|
|
|
||||||||
|
Accuracy
|
±0.3%FS
|
|
|
|
|
|
|
|
|
||||||||
|
Linear/
|
±0.1%FS at full range
|
|
|
|
|
|
|
|
|
||||||||
|
Repeatability
|
±0.25%FS
|
|
|
|
|
|
|
|
|
||||||||
|
Pressure
|
Two 1/8"(3.18 mm) quick joints
|
|
|
|
|
|
|
|
|
||||||||
|
Working
|
0~40℃
|
|
|
|
|
|
|
|
|
||||||||
|
Storage
|
-10~60℃
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
