1.Classical design,durable ai control design
2.Energy saving and environmental protection with big low rate,safety and precision
3.Can work at the low pressure,smartness for on and off,good seal performance
4.Single action and double action types for your selection
5.Widely used in the food,machine,industry,abstention,Manufacturing,printing and other area
We Mainly do solenoid valve ,pneumatic valve, air treatment units, air Cylinder, quick connection fittings and PU tube .4V.3V.2V.2p .solenoid valve ,and 4A.3A Pneumatic valve sell so hot in Asia, Europe,and Middle East.
Our products passed ISO9001:2008 and CE Quality Certification. Brand name is NMPC.
We have so many distributors and agent in mainland of China.
So popular in pneumatic and Hydraulic market. Our accessories taked from the same supplier as Airtac . O seal ring is Taiwan Xiehe,valve made by numerically controlled production center (CNC)
- Product Details
- {{item.text}}
Quick Details
-
a number of pass:
-
two position five way
-
port size:
-
1/4"G ,NPT, BSP
-
working medium:
-
air
-
the use of pressure:
-
0.15~0.8MPa
-
coil voltage:
-
DC12V/DC24V/AC110V/AC220V
-
original:
-
zhejiang ningbo China
-
model number:
-

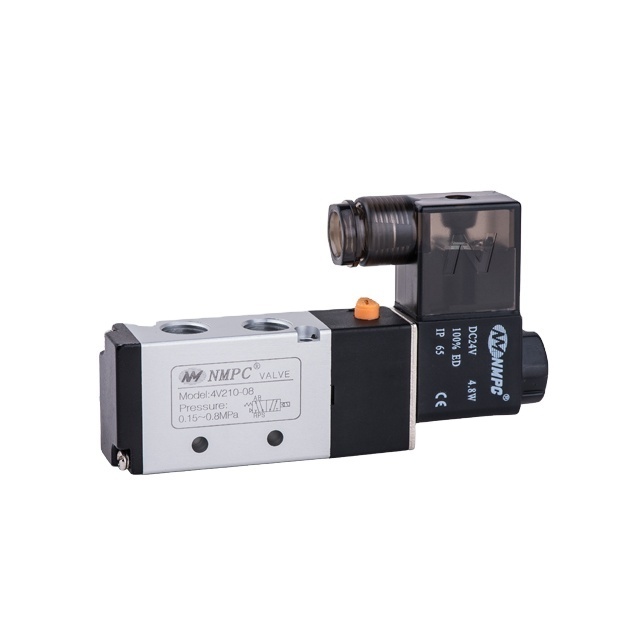

4v210-08 solenoid valve
-
Quality Certification:
-
Passed ISO9001:2008 and CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NMPC
-
power:
-
solenoid control
-
a number of pass:
-
two position five way
-
port size:
-
1/4"G ,NPT, BSP
-
working medium:
-
air
-
the use of pressure:
-
0.15~0.8MPa
-
coil voltage:
-
DC12V/DC24V/AC110V/AC220V
-
original:
-
zhejiang ningbo China
-
model number:
-
4v210-08 solenoid valve
-
Quality Certification:
-
Passed ISO9001:2008 and CE
Product Description
|
Model
|
4v110-M5
|
4V110-06
|
4V210-06
|
4V210-08
|
4V310-08
|
4V310-10
|
4V410-15
|
||||||
|
Joint size
|
Import=M5
|
Import=1/8
|
Import=1/8
|
Import=1/4
|
Import=1/4
|
Import=3/8
|
Import=1/2
|
||||||
|
|
Export=M5
|
Export=1/8
|
Export=1/8
|
Export=1/4
|
Export=1/4
|
Export=3/8
|
Export=1/2
|
||||||
|
|
Exhaust=M5
|
Exhaust=1/8
|
Exhaust=1/8
|
Exhaust=1/8
|
Exhaust=1/4
|
Exhaust=1/4
|
Exhaust=1/2
|
||||||
|
Sectional Area
|
5.5m²
|
12m²
|
14m²
|
16m²
|
25m²
|
30m²
|
50m²
|
||||||
|
|
(CV=0.31)
|
(CV=0.67)
|
(CV=0.78)
|
(CV=0.89)
|
(CV=1.39)
|
(CV=1.67)
|
(CV=2.79)
|
||||||
|
Working medium
|
Clean air(40um Filteration)
|
|
|
|
|
|
|
||||||
|
Acting type
|
Internal guide
|
|
|
|
|
|
|
||||||
|
Working pressure
|
0.15-0.9Mpa
|
|
|
|
|
|
|
||||||
|
Max pressure
|
1.2Mpa
|
|
|
|
|
|
|
||||||
|
Working temperature
|
-5-60℃
|
|
|
|
|
|
|
||||||
|
Voltage range
|
-0.25
|
|
|
|
|
|
|
||||||
|
Heat Resistant Grade
|
B
|
|
|
|
|
|
|
||||||
|
Protective calss
|
IP65(DIN40050)
|
|
|
|
|
|
|
||||||
|
Coil type
|
Din type,Flying leads
|
|
|
|
|
|
|
||||||
