Quick Details
-
Warranty:
-
1 year except wearing parts
-
Brand Name:
-
YONJOU or OEM
-
Model Number:
-
XS
-
Place of Origin:
-
Zhejiang, China
-
Outlet Size:
-
80-450 mm
-
Usage:
-
Water
-
Power:
-
Electric
-
Theory:
-
Centrifugal Pump
-
Color:
-
Customer Specifications or Blue
-
Type:
-
Horizantal
-
Feature:
-
High Efficiency
-
Fuel:
-
Electric motor
Quick Details
-
Application:
-
Other, Automotive Industry
-
Pressure:
-
High pressure
-
Voltage:
-
220v/380v/415v, 220V/380V/415V/440V/460V/550V
-
Warranty:
-
1 year except wearing parts
-
Brand Name:
-
YONJOU or OEM
-
Model Number:
-
XS
-
Place of Origin:
-
Zhejiang, China
-
Outlet Size:
-
80-450 mm
-
Usage:
-
Water
-
Power:
-
Electric
-
Theory:
-
Centrifugal Pump
-
Color:
-
Customer Specifications or Blue
-
Type:
-
Horizantal
-
Feature:
-
High Efficiency
-
Fuel:
-
Electric motor
Summarize:

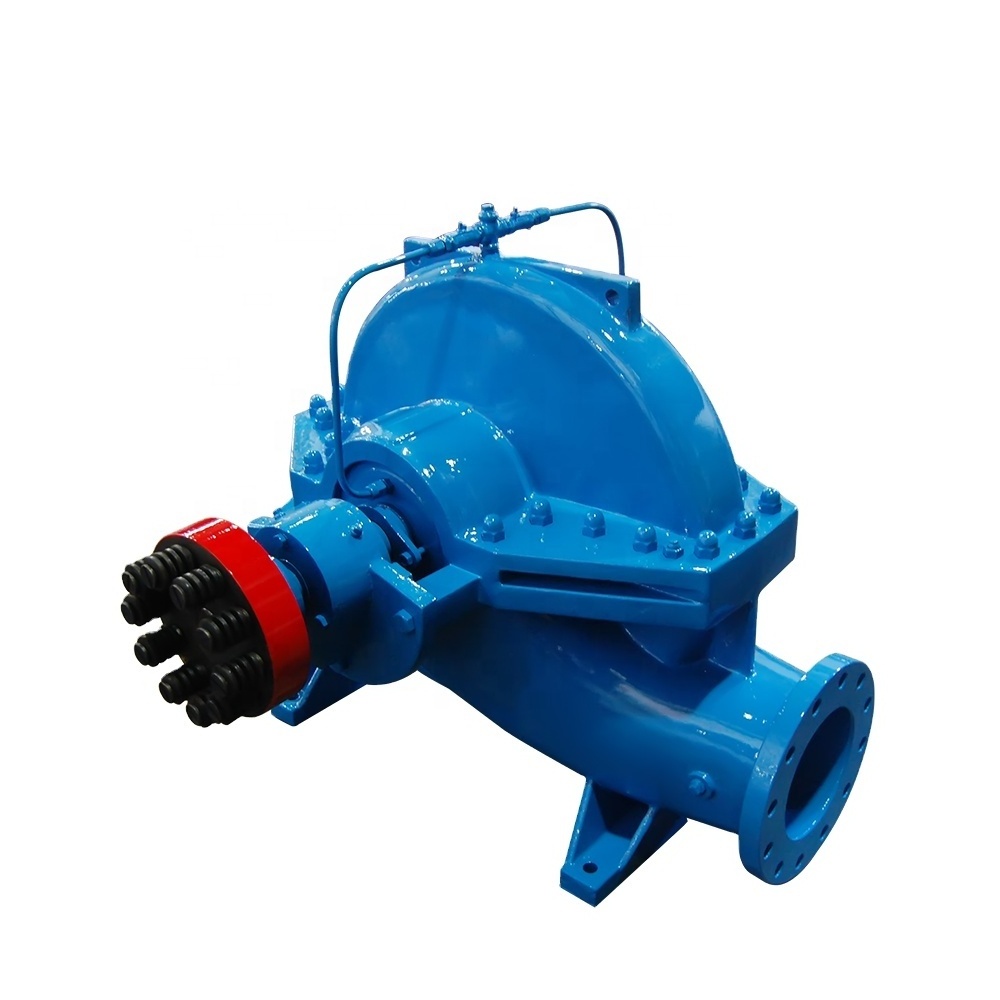

1.Split Case type big flow Electric Motor water pump centrifugal pump parts is a single stage double suction split casing pump with high capacity and pressure, which can transmit clean water or similar liquids(Oil).
2. S,XS, YPS single stage double suction split case are widely used in delivering liquids to the water plant,circulation water system of airconditioner,pipe net syetem of supplying heated water,construction,drainage pumping station,power station,industrial water supply system,ship industry,mine and etc.
Product details:
| Pump Type | Split Casing Pump |
| Casing Material | HT200 |
| Impeller | SS304,SS316,Copper,HT200 |
| Pump Sealing | Packing seal,Mechanical seal |
| Capacity Range | 126m3/h~8520m3/h |
| Head Range | 8m~140m |
| Inlet/Outlet diameter | 6"(150mm)~32"(800mm) |
| Rotary Speed | 1450rmp/2950rpm/585rpm/730rpm/970rpm |
| NPSH(r) | 2.5m~7.5m |
| N.weight | 165kgs~2550kgs |
| Pump Parts |
Casing,Pump cover,Impeller,Shaft, Double suction sealing ring Shaft sleeve,Bearing etc |
| Certificate |
ISO9001:2008,CE,TUV |
Application Area
| ♦ Construction | ♦ Industrial | ♦ Municipal |
| ♦ Agricultural | ♦ Mining | ♦ Dewatering |
| ♦ Industrial Waste | ♦ Sewage | ♦ Oil Field |
| ♦ Petrochemical | ♦ Paper Mills | ♦ Processing |
Accessories & Spare Parts:
Testing:
We guarantee that every pump will be tested before delivery.
