Quick Details
-
Marketing Type:
-
Hot product 2022
-
Weight (KG):
-
600 KG
-
Applicable Industries:
-
wood pallet
-
Product name::
-
Wood Pallet Stringer Notcher Machine
-
Application::
-
Wooden pallet stringer notching
-
Color::
-
As per customer's request
-
Power:
-
22kw
-
Weight:
-
600kg
-
Certification:
-
CE&ISO9001
-
Voltage:
-
380V 50HZ can be customized
-
Capacity:
-
1600-1800pcs/h
-
Function:
-
America wood pallet processing line
-
Raw material:
-
Wood board
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CRS
-
Machine Type:
-
wood pallet making machine
-
Marketing Type:
-
Hot product 2022
-
Weight (KG):
-
600 KG
-
Applicable Industries:
-
wood pallet
-
Product name::
-
Wood Pallet Stringer Notcher Machine
-
Application::
-
Wooden pallet stringer notching
-
Color::
-
As per customer's request
-
Power:
-
22kw
-
Weight:
-
600kg
-
Certification:
-
CE&ISO9001
-
Voltage:
-
380V 50HZ can be customized
-
Capacity:
-
1600-1800pcs/h
-
Function:
-
America wood pallet processing line
-
Raw material:
-
Wood board
Product Description

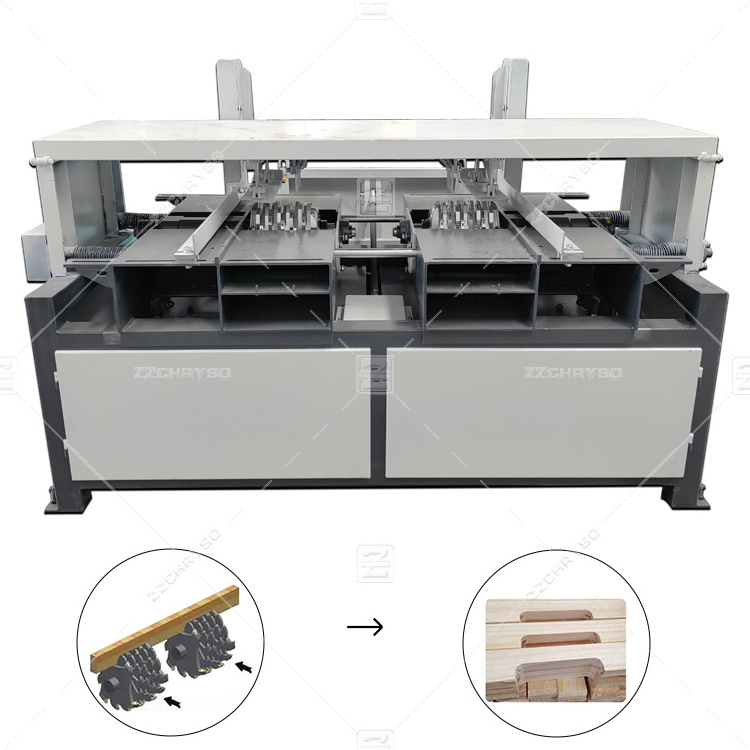

Introduction of Automatic wood pallet notcher slot machine :
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
1.Automatic Pallet notcher slot machine is mainly used for trenching hole tray floor.
2. Used to make the stringer of the wood pallet in American Standard.Which it can use fork from four directions by forklift,
becomes popular pallet type in the world.
3.The groove radian can be customized as your request.
4. It could be continuously feeding and discharging.
becomes popular pallet type in the world.
3.The groove radian can be customized as your request.
4. It could be continuously feeding and discharging.
5. It need work with the air compressor and 3kw small air compressor will be enough.
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
wood pallet notcher machine is a specialized equipment used in the woodworking industry to notch or cut notches into wooden pallets. Pallet notchers are designed to create indentations or openings in the stringers or deckboards of pallets, allowing forklift tines or pallet jacks to easily lift and move the pallets.
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
The machine typically consists of a sturdy frame that houses a cutting mechanism,The cutting mechanism is adjustable, allowing for precise placement and depth of the notches. Some machines may also have multiple cutting heads to notch multiple stringers or deckboards simultaneously.
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
These machines offer several advantages. Firstly, they enhance the efficiency and productivity of pallet production and repair operations. Notching by hand can be time-consuming and labor-intensive, but with a wood pallet notcher machine, the process is automated and significantly faster.
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
Overall, wood pallet notchers offer efficient and precise notching capabilities, improving productivity, consistency, and workplace safety in the wood pallet manufacturing and repair processes.
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
Specification
|
Model
|
CRS-1G
|
CRS-2G
|
||
|
Capacity
|
400-500pcs/h
|
1800pcs/h
|
||
|
Power
|
18kw 380v
|
30kw 380v
|
||
|
Dimension
|
1100*1000*1100mm
|
2000*1200*1600mm
|
||
|
Weight
|
300kg
|
600kg
|
||
|
Groove size
|
Groove depth: less than 45mm
Groove width: less than 230mm
|
|
||
|
Wood Board size
|
Max length:1300mm Height: 80-100mm can be customized
|
|
||
|
Note: The groove size(width and depth) can be adjusted and they also could be customized if yours is not in the standard range
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
|
|
|
||
Feature
1.The knife adopts hard alloy material, with high hardness, wear resistance, good strength and toughness,heat resistance, corrosion resistance and a series of excellent performance, so as to ensure the long term use of the machine performance
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
ZZCHRYSO Automatic wood pallet notching machine pallet stringer notcher
2. Continuous feeding and automatic discharging platform, it can double slot opened at the same time, the excavated area smooth without coarse, standard size, high precision, the depth and width of the groove sizes can be adjusted.
