Quick Details
-
Screen Dimension:
-
Customized
-
Module size:
-
288*120mm
-
Color:
-
Full-color
-
Pixel pitch:
-
6mm
-
Brightness:
-
2000cd/sqm
-
LED chip:
-
Cree + Nichia + Epistar + Opto + Silan
-
Pixel configuration:
-
SMD 1R1G1B
-
Keyword:
-
flexible led scrolling sign
-
Item:
-
rgb flexible led scrolling sign
-
Product name:
-
ph6mm indoor rgb flexible led scrolling sign
-
Warranty:
-
Two Years
Quick Details
-
Brand Name:
-
GTEAK
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GTKF-001
-
Screen Dimension:
-
Customized
-
Module size:
-
288*120mm
-
Color:
-
Full-color
-
Pixel pitch:
-
6mm
-
Brightness:
-
2000cd/sqm
-
LED chip:
-
Cree + Nichia + Epistar + Opto + Silan
-
Pixel configuration:
-
SMD 1R1G1B
-
Keyword:
-
flexible led scrolling sign
-
Item:
-
rgb flexible led scrolling sign
-
Product name:
-
ph6mm indoor rgb flexible led scrolling sign
-
Warranty:
-
Two Years

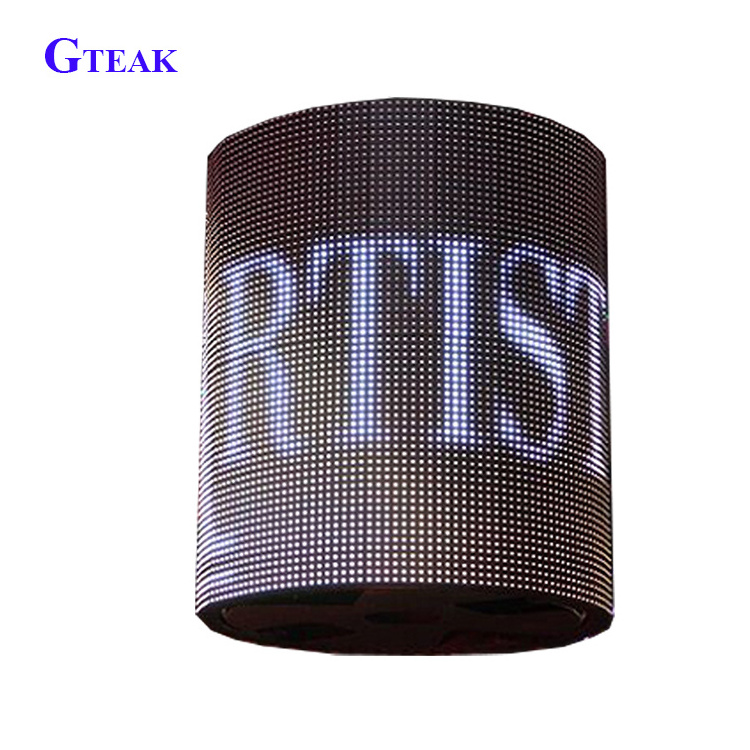

ph6mm indoor rgb flexible led scrolling sign
1.Flexible and bendable
The flexible chassis and soft cover design enable user to bend it freely, so it can be assembled at any uneven or irregular locations.
2.Super thin and light
Flexible LED Sign is one of the thinnest &lightest LED signs in the world with special materials and advanced technology. Every module is weight of 800g.
3.Easy to splice, install and maintain
Modularization design and no other connected cables make the installation so easy.User just mounts iron sheet or magnetic product on the surface in the first,then stick the Flexible LED sign on the surface .
4.Low power consumption
The maximal power consumption of a module is less than 12W
5.Wide application
Can be used in so many fields and occasions ,especially in all kinds of irregular buildings . For example hotel advertising,stage renting,television,shopping malls,big markets,outdoor stadiums,concerts, fairground ,sightseeing districts, etc...
A: P6 Full color white chip flexilble module: ( size: 288*120)
B: P6 full color black chip flexible screen ( size: 288*120)
Full set with accessories:
Projects we did with flexible modules:
Parameter | GTKF-001 | |
Basic | Pixel Configuration | SMD 3 in 1 |
Parameter | Pixel Pitch (mm) | 6.0mm |
Pixel Density | 27,777 pixels/m2 | |
Module Resolution | 48*20 pixels | |
Module Dimension | 288mm×120mm | |
Weight | 9.0 kg/cabinet | |
Cabinet Material | Flexible PCB board | |
Frame Frequency (Hz) | 50/60Hz | |
Brightness (nit) | more than 1200 cd/m2 | |
Viewing angle | 140°/140° | |
Flatness error | ≤0.5mm | |
Using Parameter | Working Voltage (V) | 220V±15% |
Max. Power Consumption | 800W/m2 | |
Storage Temperature (°C) | -20~60 | |
Operating Temperature (°C) | -10~40 | |
Storage Humidity (RH) | 10%~90% | |
Operating Humidity (RH) | 10%~90% | |
Video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION ect | |
Lifetime Typical Value (hrs) | 100,000 |
