Quick Details
-
Lift Speed:
-
Hoist single or double speed
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
50 kg
-
Product name:
-
Small 500kg motor lifting electric portable wire rope hoist crane
-
Item:
-
Electric hoist
-
Main electrical parts:
-
Siemens, Schneider and CHINT
-
Hoist Working class:
-
A3~A4
-
Working condition:
-
-25~40 degrees centigrade
-
Safety feature:
-
Voltage lower protection
-
Hoist shape:
-
Round or Square shape
-
Moving type:
-
Traveling or fixed type
-
Hoist Operational methods:
-
Handle or remote control
-
Trolley safety features:
-
All included
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yufei
-
Lift Speed:
-
Hoist single or double speed
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
50 kg
-
Product name:
-
Small 500kg motor lifting electric portable wire rope hoist crane
-
Item:
-
Electric hoist
-
Main electrical parts:
-
Siemens, Schneider and CHINT
-
Hoist Working class:
-
A3~A4
-
Working condition:
-
-25~40 degrees centigrade
-
Safety feature:
-
Voltage lower protection
-
Hoist shape:
-
Round or Square shape
-
Moving type:
-
Traveling or fixed type
-
Hoist Operational methods:
-
Handle or remote control
-
Trolley safety features:
-
All included

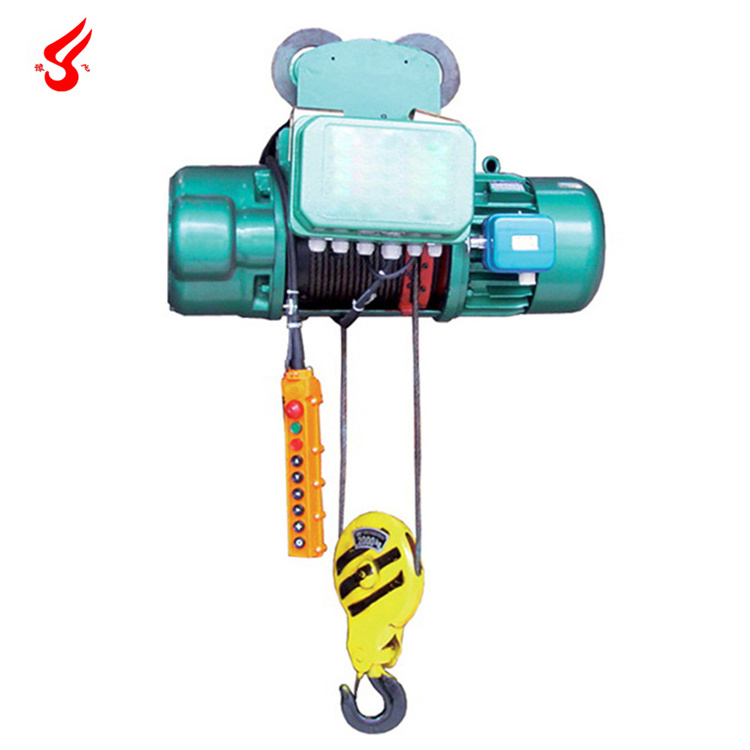

Small 500kg harga 3 5 ton motor lifting electric portable wire rope hoist crane
Brief introduction:
CD1 electric hoist has only normal speed, which can satisfy the general working, But if you lift the
precision instrument,it is belong precise working, Then MD Model electric hoist is better chose,
it have two motors, one for high speed and another is low speed.
Advantages of electric hoist crane 500kg:
1.Compact structure
2. Light weight
3.Safe and reliable Components and parts apply used universally
strong compatibility
4.High lifting capacity
5.Easy maintenance
6.Easy operation
7.Accurate lifting steady operation
Want to know more about contact me
Use of electric hoist crane 500kg:
It can travel on the fixed H-beam or traveling on the main beam,and also could be suing for single beam overhead crane,gantry crane,jib crane and overhang crane to lift the cargo.
It can be used in factories,mines,wharf,warehouse,freight yards ,shops and so on which need lifting equipment for lifting heavy objects,such as mining companies and railways,docks,warehouses.
want to know more details to contact me
Notes of electric hoist crane 500kg:
Send your special needs to us!
| 1.Work Duty | S3-25%-10min |
| 2.Rated Volt | 220/230V ~ 50Hz |
| 3. Rated Current | 2.0A |
| 4.Input Power | 1020W |
| 5.Lifting Weight | 250kg (Single-line), 500kg (Double-line) |
| 6.Lifting Height | 12m (Single-line), 6m (Double-line) |
| 7.Lifting Speed | 10m/min (Single-line), 5 m/min(Double-line) |
| 8.Diameter of wire rope | 4mm |
| Tensile strength of wire rope | >1870N/mm2 |
Technical data of electric hoist crane 500kg:
|
Lifting weight(t) |
Working class |
Lifting height(m) |
Lifting speed(m/min) |
Traveling speed(m/min) |
Max.wheel pressure(kn) |
|
1.6 |
M6 |
6/9/12 |
1.6/1.0 |
2~20 |
6.1/6.2/6.3 |
|
2.5 |
M6 |
6/9/12 |
0.8/5.0 |
2~20 |
9.1/9.2/9.3 |
|
3.2 |
M5 |
6/9/12 |
0.8/5.0 |
2~20 |
11.5/11.6/11.7 |
|
6.3 |
M5 |
6/9/12 |
0.8/5.0 |
2~20 |
22.0/22.1/22.2 |
|
8 |
M6 |
6/9/12 |
0.8/5.0 |
2~20 |
28.0/28.1/28.2 |
|
10 |
M5 |
6/9/12 |
0.8/5.0 |
2~20 |
34.7/34.8/34.9 |
|
10 |
M6 |
6/9/12 |
0.66/4.0 |
2~20 |
34.7/34.8/34.9 |
|
12.5 |
M5 |
6/9/12 |
0.66/4.0 |
2~20 |
43.3/43.4/43.5 |
|
16 |
M5 |
6/9/12 |
0.66/4.0 |
2~20 |
59.4/59.7/60.0 |
|
20 |
M5 |
6/9/12 |
0.5/3.4 |
2~20 |
59.5 |
|
32 |
M5 |
6/9/12 |
0.8/3.3 |
2~20 |
95/104 |
|
40 |
M5 |
6/9/12 |
0.82~4.9 |
2~20 |
124 |
|
50 |
M5 |
6/9/12 |
0.53~3.2 |
2~20 |
97.1/97.8/98.7 |
|
63 |
M5 |
6/9/12 |
0.4~2.4 |
2~20 |
112.1/112.5/112.9 |
|
80 |
M5 |
6/9/12 |
0.4~2.4 |
2~20 |
140.3/140.7/141.1 |
YUFEI cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on. The crane series includes Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist crane 500kg, etc.
