Package Size: 115*80*15cm;
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
NONE
-
Mounting Type:
-
balcony/garden Mounting
-
Certificate:
-
VDE, OVE, CE,ROHS,TUV
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FGET/OEM
-
Model Number:
-
BA600
-
Load Power (W):
-
600W
-
Output Voltage (V):
-
120V/230V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24 hours
-
Product name:
-
Solar System 600 Watt Balkon Kraftwerke Bezeichnet 600w System
-
OEM Order:
-
Acceptable
-
Solar cell:
-
A-grade
-
Cables:
-
Photovoltaic Technology Cable 4.0mm, 900 mm
-
Maximum Power Voltage:
-
20.2
-
Cells Efficiency (%):
-
20.1%
-
Open-circuit voltage:
-
22.3
-
Weight:
-
1.83 kg
-
Type:
-
ETFE Laminated Solar Panel
Quick Details
-
Application:
-
Balcony
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion, NONE
-
Controller Type:
-
NONE
-
Mounting Type:
-
balcony/garden Mounting
-
Certificate:
-
VDE, OVE, CE,ROHS,TUV
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FGET/OEM
-
Model Number:
-
BA600
-
Load Power (W):
-
600W
-
Output Voltage (V):
-
120V/230V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24 hours
-
Product name:
-
Solar System 600 Watt Balkon Kraftwerke Bezeichnet 600w System
-
OEM Order:
-
Acceptable
-
Solar cell:
-
A-grade
-
Cables:
-
Photovoltaic Technology Cable 4.0mm, 900 mm
-
Maximum Power Voltage:
-
20.2
-
Cells Efficiency (%):
-
20.1%
-
Open-circuit voltage:
-
22.3
-
Weight:
-
1.83 kg
-
Type:
-
ETFE Laminated Solar Panel
Super Factory
Product Description

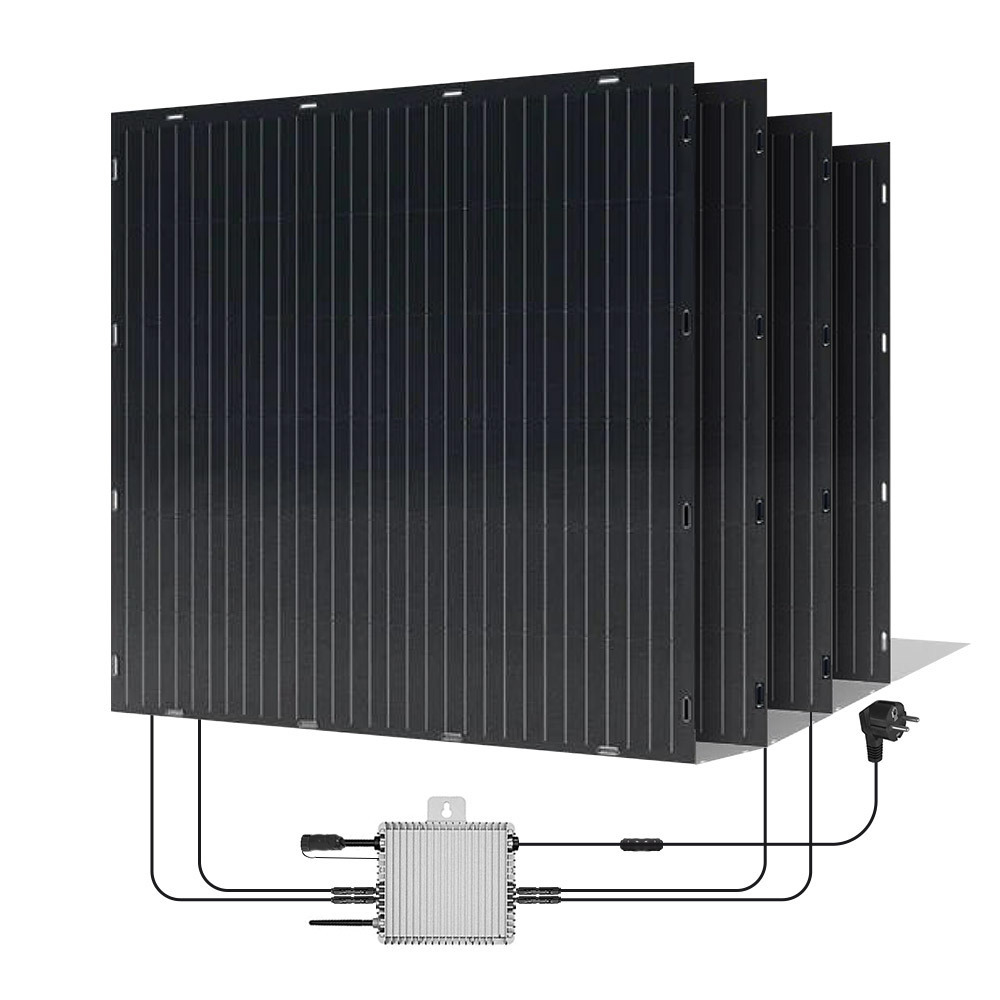

Plugin Plug And Play Solar System 600 Watt Balkon Kraftwerke Bezeichnet 600w System With Lightweight Flexible Solar Panel
Advantages:
1. 36 monocryst alline half-cut PERC cell s 182 x 60.67mm, higher efficiency
2. All Black Design , nice appearance, reduce light pollution
3. Junction box Certified according to IEC 62790, IP 68 approved , 1 bypass diodes
4. ETFE Surface， Special stand sheet inside
1. 36 monocryst alline half-cut PERC cell s 182 x 60.67mm, higher efficiency
2. All Black Design , nice appearance, reduce light pollution
3. Junction box Certified according to IEC 62790, IP 68 approved , 1 bypass diodes
4. ETFE Surface， Special stand sheet inside
Specification
|
Grid-connected solar balcony/garden home system
|
|
|
||
|
System type
|
On-Grid System
|
On-Grid System
|
||
|
Input power
|
100W mono flexible solar panel x 4pcs
|
100W mono flexible solar panel x 8pcs
|
||
|
PV open circuit
|
60V
|
60V
|
||
|
PV operating voltage range
|
25-55V
|
25-55V
|
||
|
PV short-cicuit current
|
19.5A
|
19.5A x 2
|
||
|
Rated output power
|
300W
|
600W
|
||
|
Rated output current
|
1.3A
|
2.6A
|
||
|
Rated voltage range
|
230V/0.85Un-1.1Un
|
230V/0.85Un-1.1Un
|
||
|
Rated frequency range
|
45-55Hz / 55-65Hz
|
45-55Hz / 55-65Hz
|
||
|
Efficiency
|
96.5%
|
96.5%
|
||
|
Ambient Temperature Range
|
-40~65℃
|
-40~65℃
|
||
|
Size (mm)
|
189W×184H×31.5D
|
212W×230H×40D
|
||
|
Weight (kg)
|
2.15
|
3.15
|
||
|
Communication
|
Power line / WIFI / Zigbee
|
Power line / WIFI / Zigbee
|
||
|
Monitoring
|
APP
|
APP
|
||
Product packaging
Solar Panel Size: 900*690*3mm
Case Show
About Us
FAQ
Q1: How to choose the right
Balcony
Solar Power System
?
A1: Tell us your demand, then our sales will recommend a suitable system for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler a
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: 10 years warranty on FGET-Solar panel.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A1: Tell us your demand, then our sales will recommend a suitable system for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler a
nd costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: 10 years warranty on FGET-Solar panel.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
