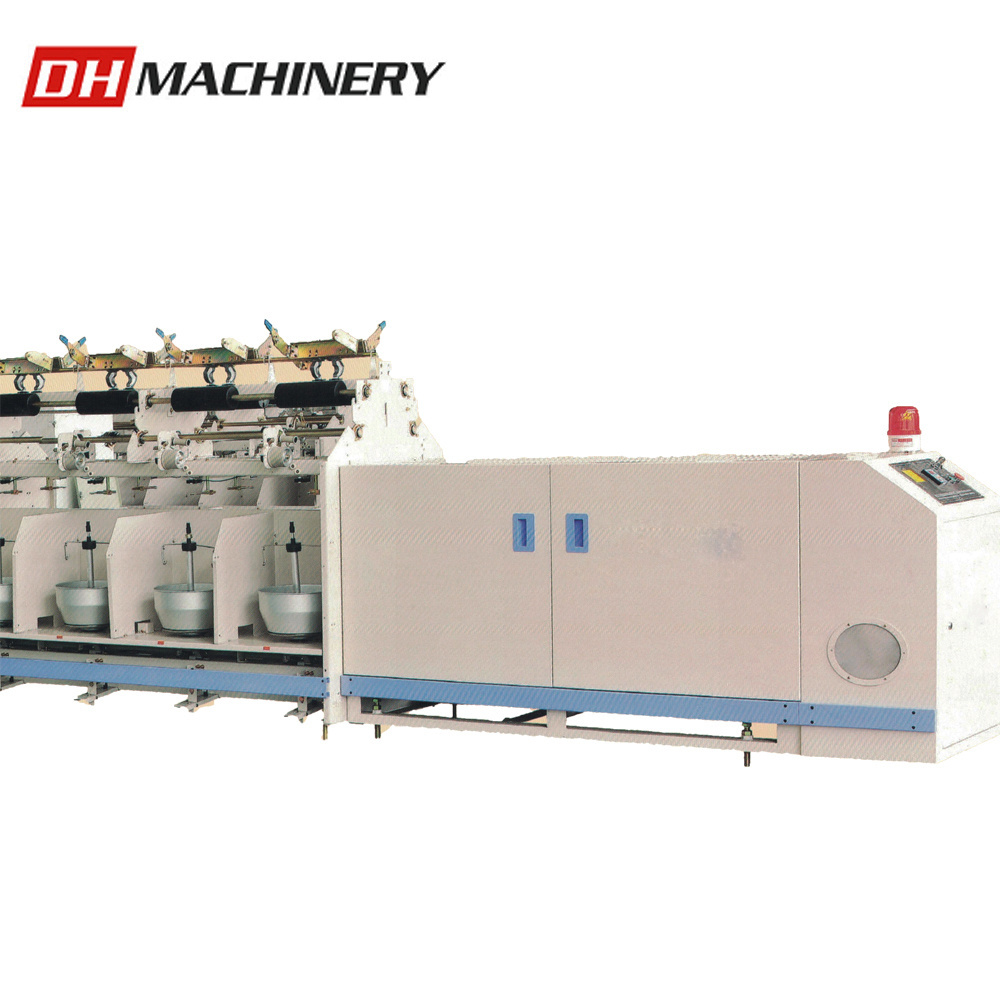

TFO Automatic Yarn Twisting Machine For Filament Spinning Twisting Pp Multifilament

TFO Automatic Yarn Twisting Machine For Filament Spinning Twisting Pp Multifilament

FOB Reference Price: Get Latest Price

≥1 Pieces

US $55000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Jiangxi Donghua

Dimension(L*W*H):: 6.8*5.5*12.0

Weight:: 6000 KG

Power:: 115-170kw

Product Name:: Twister machine

Machine Type:: Double sides single layer

Twisting material range:: Filaments yarns as CF Polyester, PA,PP Yarn,etc.

COLOR OF YARN:: White and colored

Spindle Gauge:: 254mm

Spindle Numbers:: Standard 192 spindles, 16 sections

Max. Spindle speed:: 10000rpm(inverter adjusting)

Number of Spindle:: 4-12

Service Support:: Online support

Tension control:: steel ball

Quick Details

Application:: Making Yarn

Production Capacity:: 98%-99%

Place of Origin:: Jiangxi, China

Brand Name:: Jiangxi Donghua

Dimension(L*W*H):: 6.8*5.5*12.0

Weight:: 6000 KG

Power:: 115-170kw

Product Name:: Twister machine

Machine Type:: Double sides single layer

Twisting material range:: Filaments yarns as CF Polyester, PA,PP Yarn,etc.

COLOR OF YARN:: White and colored

Spindle Gauge:: 254mm

Spindle Numbers:: Standard 192 spindles, 16 sections

Max. Spindle speed:: 10000rpm(inverter adjusting)

Number of Spindle:: 4-12

Service Support:: Online support

Tension control:: steel ball

TFO Automatic Yarn Twisting Machine For Filament

Spinning Twisting Pp Multifilamen

Machine main specification

Main Specification
Machine Type	Double sides single layer
Twisting material range	Filament yarns as CF Polyester,PA, PP yarn,etc.
Spindle Gauge	500mm
Spindle Numbers	Standard 80 spindles(8 spindles per section, totally 10 sections.)
Spindle Diameter	Φ250
Max.Spindle Speed	7000r/min
Winding Speed	≤100m/min
Winding package weight	≤10KGS
Twist Direction	S or Z
Tension control	Steel ball
Power Configuration	Main Motor, Traverse Motor, Widing-up Motor, All the motors are PLC controlled
Starting Method	Inverter control slow starting
Operation	Touch Screen

Features

Maximum spindle speed 7000r/min.
Electronic servo traverse system, twist whole tracking, ensure twist uniformity.
Unique and efficient over-feeding roller design.

Detailed Images

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packaging
Size	40HQ 1205.6234.7268.4cm
Weight	12 T
Packaging Details	The normal package is Container box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
