- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DNUO
-
Voltage:
-
380V/50HZ customized
-
Power:
-
100KW
-
Dimension(L*W*H):
-
54m*1.85m*3.5m customized
-
Weight:
-
12000 kg
-
Features:
-
easy to operate
-
Production Speed:
-
2-10m/min
-
sheet Thickness:
-
0.4-5mm
-
Operation Staff:
-
3-6 people
-
Wave Height:
-
maximum 140mm
-
Raw materials:
-
resin,fiberglass roving, film ect
-
FRP Color:
-
Transparent or any color
-
Product Name:
-
fiberglass sheet production line
-
Keywords:
-
PLC
-
Function:
-
Construction Building
-
Certification:
-
ISO9001/CE
Quick Details
-
Marketing Type:
-
New Product
-
Application:
-
greenhouse, town house, workshop, etc
-
Production Capacity:
-
10 Set/Sets per Month
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DNUO
-
Voltage:
-
380V/50HZ customized
-
Power:
-
100KW
-
Dimension(L*W*H):
-
54m*1.85m*3.5m customized
-
Weight:
-
12000 kg
-
Features:
-
easy to operate
-
Production Speed:
-
2-10m/min
-
sheet Thickness:
-
0.4-5mm
-
Operation Staff:
-
3-6 people
-
Wave Height:
-
maximum 140mm
-
Raw materials:
-
resin,fiberglass roving, film ect
-
FRP Color:
-
Transparent or any color
-
Product Name:
-
fiberglass sheet production line
-
Keywords:
-
PLC
-
Function:
-
Construction Building
-
Certification:
-
ISO9001/CE
Product Description
Specification

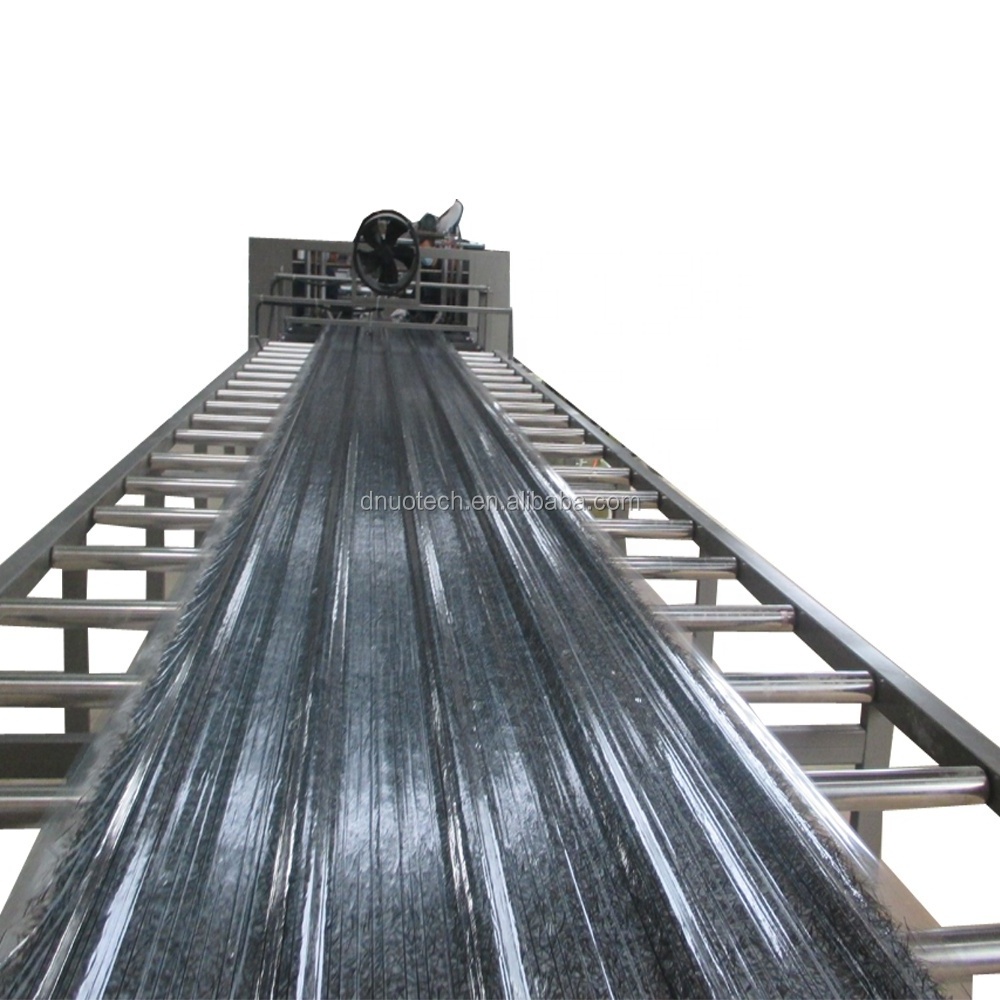

DNUO manufacture grp FRP fiberglass resin sheet production line
This production line can produce lighting sheet,color sheet,common flat sheet.
|
Basic parameter
|
|
|
|
|
||||
|
operation staff
|
|
3-6 people
|
|
|
||||
|
production speed
|
|
2-10m/min
|
|
|
||||
|
sheet width
|
|
<1500mm
|
|
|
||||
|
wave height
|
|
<140mm
|
|
|
||||
|
sheet thickness
|
|
0.4mm-4mm
|
|
|
||||
|
machine main dimension
|
|
54m*1.85m*3.5m ,according to customer requirement
|
|
|
||||
|
power requirement
|
|
80kw
|
|
|
||||
|
power consumption
|
|
running power consumption is 25kw/h
|
|
|
||||
Detailed Images
Electric heating platform:
Avoid that the resin is too viscous to recive infiltration in winter and contribute to increase production speed and infiltration in summer.PID temperature control system:accurate temperature control.
Circulation air heating oven
PID control temperature accurately,heating sectionalized,hot wind control can reduce power consumption
Traction system:
Hauling device:dedicated wear-resisting rubber roller,carbon steel frame,pneumatic control of pressure.
Roving chopper
Funtion:cut fiberglass into 40mm,throw the fiberglass on the resin uniformity.
Reduce production cost.
Air cooling
Funtion:Cooling sheet and improve degree of curing.The length is eight meters.
Curing agent ,accelerant,color paste metering pump
Application
The advantages of the sheets produced by our equipment are as follows:
1.high strength and toughness 2.anti-acid,alkali-resistant,corrosion resistance
3.anti-aging and long use life 4.anti-UV,anti-yellowing
FRP sheets are widely used in various construction fields, such as
Industrial plants, warehouses, stadiums, shelters, gardens, agricultural greenhouses etc.
Packing & Delivery
Packaging Details:Packaging of frp sheet production line on requirement of customer.
Port:China.Tianjin
