Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chipsen
-
Model Number:
-
EC39
-
Turns Ratio:
-
1:2
-
Output Voltage:
-
24V 48V 60V 120V 240V
-
Output Power:
-
100W
-
Output Current:
-
1.6A
-
Application:
-
stepping up
-
Certification:
-
ISO9001:2015, IATF16949:2016, U/L, RoHS, CQC
-
R&D Cost:
-
Free design service
-
Warranty:
-
5 years
-
Electronic Solution:
-
One-stop Solution
-
Sample Cost:
-
Free samples available
Quick Details
-
Use:
-
Electronic
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chipsen
-
Model Number:
-
EC39
-
Turns Ratio:
-
1:2
-
Output Voltage:
-
24V 48V 60V 120V 240V
-
Output Power:
-
100W
-
Output Current:
-
1.6A
-
Application:
-
stepping up
-
Certification:
-
ISO9001:2015, IATF16949:2016, U/L, RoHS, CQC
-
R&D Cost:
-
Free design service
-
Warranty:
-
5 years
-
Electronic Solution:
-
One-stop Solution
-
Sample Cost:
-
Free samples available

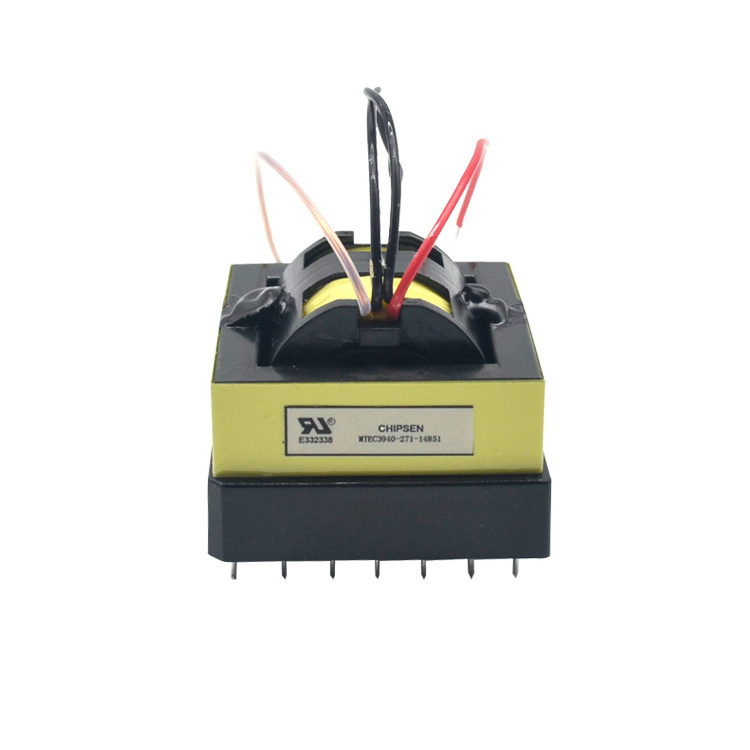

HF transformers
Product Description
| Components | bobbin, ferrite core, silicon steel sheet, copper wire, copper foil, insulation tape, margin tape, TFL tube, expoy |
| Bobbin Material | bakelite/ phenolic/ plastics |
| Shape Type | horizontal / vertical / SMD |
| Inductance Range | 1uH-100H |
| Working Frequency Range | 50Hz --300KHZ |
| Output Power | 0.1W-3000W |
| Output Voltage | 0.1V-10000V |
| Output Current | 0.01A-100A |
| Operating Temperature | -15℃~+80℃ |
| Storage Temperature | -25℃~+85℃ |
| Storage Humidity | 30% ~ 90% |
| Test Items | Ø Turns ratio |
| Ø Inductance | |
| Ø Phase test | |
| Ø Inductance leakage | |
| Ø DC resistance test | |
| Ø Withstand voltage | |
| Ø Insulation resistance | |
| Certification | ISO9001:2015, ISO14001:2015, UL, ROHS, CQC |
| MOQ | 1000 pcs |
| OEM/ODM | acceptable |
| Sample | free |
| Sample Time | 3-5 working days |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Delivery time | 15-18 working days against deposit |
| Features | Large transmission power |
| Low loss | |
| Low temperature rise | |
| Stable performance | |
| Applications | 1. switching power supply |
| 2. electrical home appliance | |
| 3. medical equipments | |
| 4. communication device | |
| 5. solar energy and inverter | |
| 6. car charging pile and car charger | |
|
7. security products and smart home |
