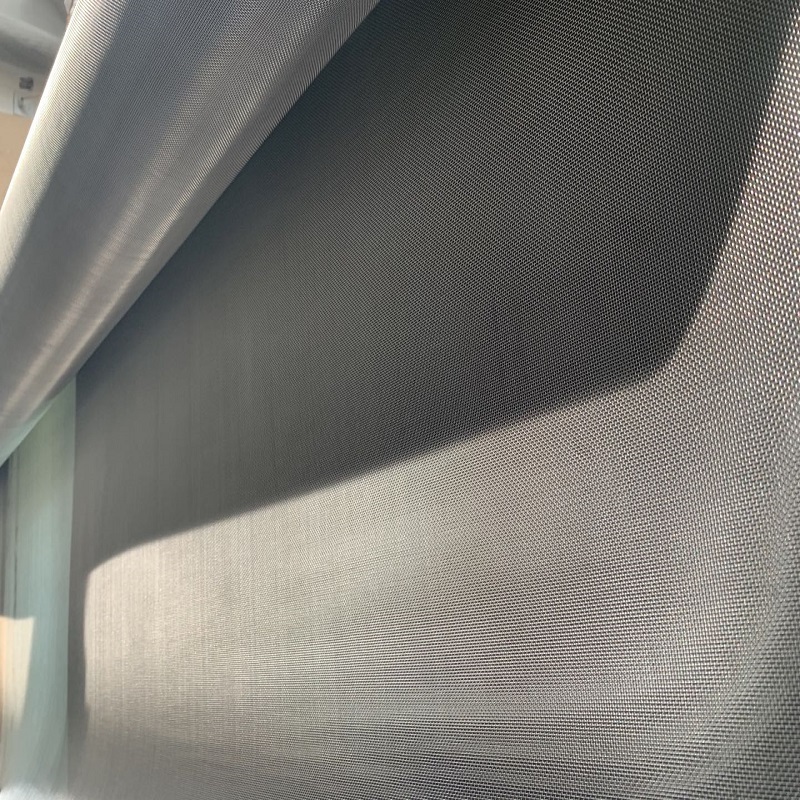

304/316 Stainless Steel Woven Wire Mesh 150Mesh

150Mesh 100Mircon Filter Mesh 316/304 Stainless Steel Woven Wire Mesh

Specification

Metal Grade

316 is the stainless steel grade of choice for the food and marine industries.

SS316 is a molybdenum bearing grade, and as such it offers better corrosion resistance.

It has a slightly higher resistance to heat than the industry standard 304 grade.

SS316 can be used for many applications. It is often found in food preparatory equipment, boat fittings, laboratory benches, coastal architectural panels and railings.

Composition - C 0.08, Mn 2.0, Si 0.75, P 0.045, S 0.030, Cr 18.0, M 3.0, Ni 14, N 0.10

SS304 also has outstanding forming and welding characteristics.

Plain Weave

Plain weave woven wire cloth is used for the majority of wire cloth woven by The Mesh Company. Each warp wire crosses alternately above and below every weft wire and vice versa.

Warp and weft wires are normally of the same diameter.

Plain weaves are used for the majority of commercial applications and for filtration where a high flow rate is required.

Technical Note:
1, Standard roll width of stainless steel wire mesh: 1m or 36"
2, Standard roll length of stainless steel wire mesh: 30m or 100'
3, Material of stainless steel wire mesh: AISI 304 or 316

Stainless steel wire mesh plain woven sizes:
2mesh/3mesh/4mesh/5mesh/6mesh/8mesh/10mesh/12mesh/14mesh/16mesh/
18mesh/20mesh/26mesh/30mesh/40mesh/50mesh/60mesh/70mesh/80mesh/ 90mesh/100mesh/120mesh/150mesh/160mesh/180mesh/200mesh/250mesh/ 300mesh/325mesh/350mesh/400mesh/

What is Mesh Size?

Mesh Size (or U.S. Sieve Size) is defined as the number of openings in one square inch of a screen. For example, a 36 mesh screen will have 36 openings while a 150 mesh screen will have 150 openings. Since the size of screen (one square inch) is constant, the higher the mesh number the smaller the screen opening and the smaller the particle that will pass through. Generally US Mesh is measured using screens down to a 325 mesh (325 openings in one square inch).

Sometimes the mesh size of a product in noted with either a minus (-) or plus (+) sign. These signs indicate that the particles are either all smaller than (-) or all larger than (+) the mesh size. For example, a product identified as -100 mesh would contain only particles that passed through a 100 mesh screen. A +100 grade would contain particles that did not pass through a 100 mesh screen. When a grade of product is noted with a dash or a slash is indicates that the product has particle contained within the two mesh sizes. For example, a 30/70 or 30-70 grade would only have particles that are smaller than 30 mesh and larger than 70 mesh.
