1,Power supply voltage: 12-24VDC
2,Contact output: NO/NC/COM
3,Maximum current: 3A/125-250VAC
4,Standard panel: Acrylic panel
5,Panel pattern: can be customized according to requirements
6,Durability test: 100,000 times
7,Applicable door type: hollow door frame (surface installation)
8,LED indication: blue (standby), green (trigger)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Keysecurity
-
Model Number:
-
K-C2
-
Product name:
-
Door Lock Exit Button
-
Material:
-
ABS
-
Application:
-
Pedestrian Access Control
-
Power supply:
-
DC12V-24V
-
Contact Rating:
-
3A 36VDC Max
-
Output Contact:
-
NC/NO/COM
-
Mechanical Life:
-
500000 tests
-
Suitable for Door:
-
All Kinds Doors
-
Operating temp:
-
-20~+55 degree(14-131F)
-
Suitable Humidity:
-
0-95% (relative humidity)
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
NO
-
Max. Current:
-
3A/5A
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Keysecurity
-
Model Number:
-
K-C2
-
Product name:
-
Door Lock Exit Button
-
Material:
-
ABS
-
Application:
-
Pedestrian Access Control
-
Power supply:
-
DC12V-24V
-
Contact Rating:
-
3A 36VDC Max
-
Output Contact:
-
NC/NO/COM
-
Mechanical Life:
-
500000 tests
-
Suitable for Door:
-
All Kinds Doors
-
Operating temp:
-
-20~+55 degree(14-131F)
-
Suitable Humidity:
-
0-95% (relative humidity)
-
Certification:
-
CE
Products Description

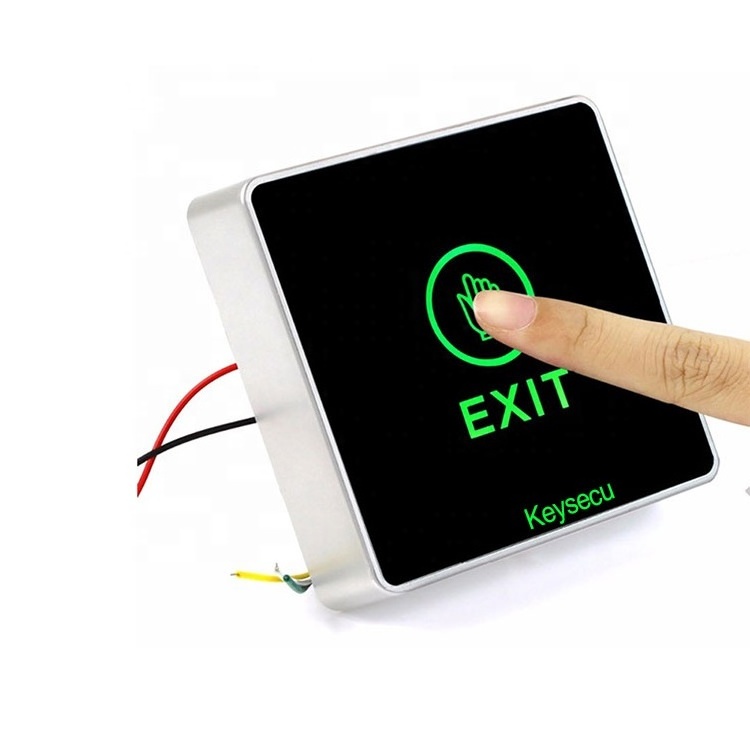

Door Access Control 12V 24V Touch Screen Sensor Door Lock Release Open Exit Button Switch With NO / NC / COM
Feature:
Product Paramenters
|
Model Number
|
K-C2
|
|
Product Name
|
Touch Screen Sensor Door Exit Release Button Switch
|
|
Material
|
ABS
|
|
Product size
|
86Lx86Wx21H(mm)
|
|
Power supply voltage
|
12VDC
|
|
Contact output
|
NO/NC/COM /LED
|
|
Maximum current
|
3A / 125-250VAC
|
|
Endurance test
|
100,000 times
|
|
Installation:
|
hollow door frame
|
|
Packing parameters
|
100pcs/15kg/51*43*33cm/ctn
|
