Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANGYUAN
-
Model Number:
-
KAN0251
-
Product type:
-
smd tact switch
-
Certificate:
-
ROHS ISO9001/14001
-
Operating force:
-
100gf/160gf/260gf ± 50 gf
-
Life expectancy:
-
100,000 cycles
-
Dimension:
-
2x4x3.5mm
-
Travel:
-
0.25±0.1mm
-
Salt mist:
-
8h±1h
-
Case:
-
LCP
-
Contact:
-
SUS
-
Price:
-
Can be negotiate
-
Certification:
-
ROHS
Quick Details
-
Protection Level:
-
High Level
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANGYUAN
-
Model Number:
-
KAN0251
-
Product type:
-
smd tact switch
-
Certificate:
-
ROHS ISO9001/14001
-
Operating force:
-
100gf/160gf/260gf ± 50 gf
-
Life expectancy:
-
100,000 cycles
-
Dimension:
-
2x4x3.5mm
-
Travel:
-
0.25±0.1mm
-
Salt mist:
-
8h±1h
-
Case:
-
LCP
-
Contact:
-
SUS
-
Price:
-
Can be negotiate
-
Certification:
-
ROHS
Attention
WHY CHOOSE US!!!
Quality is Our culture
Nice quality with Nice price
With Us Your Money Safe, Your Business safe.
5-7 working days after get the payment, and according to the quantity.
We can offer the samples to our customers ,if you need.
With Us Your Money Safe, Your Business safe.
5-7 working days after get the payment, and according to the quantity.
We can offer the samples to our customers ,if you need.
RAEL~
Product Description

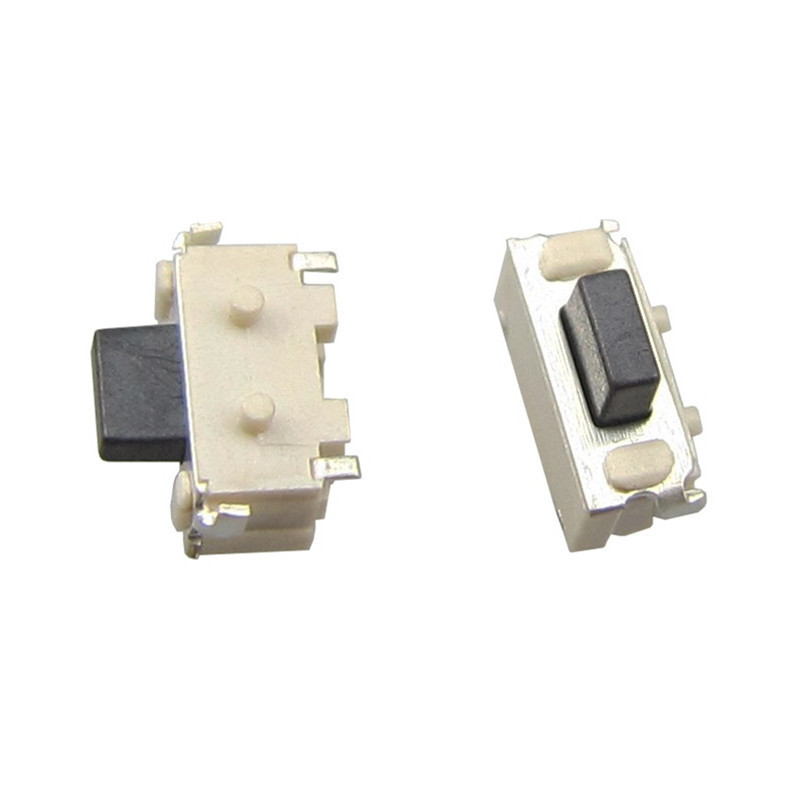

mini switch manufacturing 2x4 small 12v smd on/off Tact Switch
|
P/N
|
KAN0251
|
|
Dimension
|
2×4×3.5mm
|
|
Operating force
|
100gf/160gf/260gf ± 50 gf
|
|
Life time
|
30,000/50,000/60,000cycles
|
|
Rating
|
12V DC, 50mA
|
|
Travel
|
0.25±0.1mm
|
Specifications
|
Contact resistance
|
≤100mΩ
|
Heat resistance
|
80±2℃, 96h
|
|
Insulation Resistance
|
≥100MΩ
|
Moisture resistance
|
96h
|
|
Dielectric voltage proof
|
250V AC(50Hz/60Hz)/1min
|
Sulfuration resistance
|
96h
|
|
Resistance to low temperature
|
-30±2℃, 96h
|
Salt Mist
|
8h±1h
|
Applications & More related products
Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
