Quick Details
-
Rated Lifting Moment:
-
630KN.m
-
Span:
-
55m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAISHAN
-
Warranty:
-
One year
-
Weight (KG):
-
35000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Yellow or optional
-
Electric components:
-
Schneider
-
Section dimension:
-
1.6*1.6*3m or 2*2*3m
-
Working environment temperature:
-
-20℃~40℃
-
Raw materials:
-
high quality manganese steel for 6t tower crane
-
Configurations:
-
air conditioner, black box and remote control
-
Company type:
-
factory
-
Certification:
-
CE,ISO and GOST
Quick Details
-
Rated Loading Capacity:
-
6t
-
Max. Lifting Height:
-
140m
-
Application:
-
construction
-
Rated Lifting Moment:
-
630KN.m
-
Span:
-
55m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAISHAN
-
Warranty:
-
One year
-
Weight (KG):
-
35000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Yellow or optional
-
Electric components:
-
Schneider
-
Section dimension:
-
1.6*1.6*3m or 2*2*3m
-
Working environment temperature:
-
-20℃~40℃
-
Raw materials:
-
high quality manganese steel for 6t tower crane
-
Configurations:
-
air conditioner, black box and remote control
-
Company type:
-
factory
-
Certification:
-
CE,ISO and GOST
With the main business of produce and sales of construction machinery, Yantai Haishan Construction Machinery Co., Ltd. locates in the beautiful seaside city--Yantai. With more than 40 million fixed assets, the company has more than 1200 staff, featuring abundant technical force, excellent manufacturing facilities and perfect detection method. The plant covers 120,000 square meters.
The main products are as follows: tower crane; construction hoist; HZS series of concrete mixing plant JS series of concrete mixers; PL series of concrete batchers; HBT series of transportation pump and water conservancy construction machineries of hoists and gates; HSW series of slewing bearings, XL series of slewing reducers, WCJ120, BX series of variable reducers, HSGK series of hydraulic stations, YG series of high intensity bolt, QT series of winches, multi-function limiters and ZL series of wheeled loaders.
Our company have got the GB/T19001—2000 idt ISO9001 : 2000 Certificate of Conformity of Quality Management System and the People's Republic of China special equipment manufacturing license. For the tower crane and concrete mixing plant we have got the CE which is the Europe standard. Our products have exported to Russia, Mongolia, India, United Arab Emirates, Algeria, Angola, Mexico, Brazil and other countries, and got good reputation from the users.

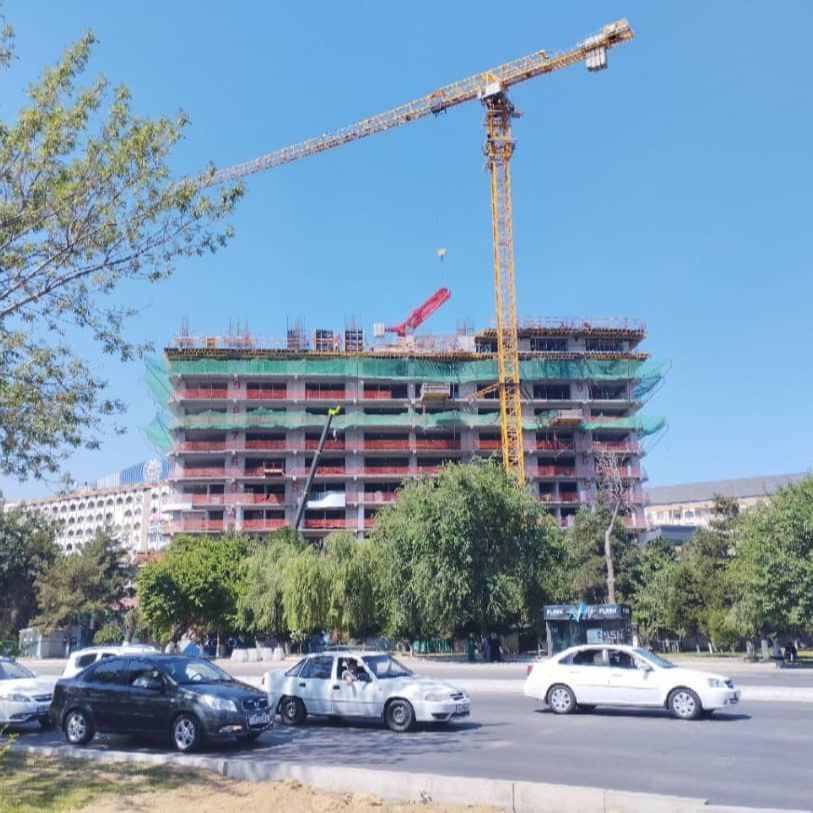

6T Tower Crane for Sale
Main Technical Parameters of QTZ63 6T Tower Crane
|
Tower Crane Parameter |
QTZ63 Series |
|||
|
HS5013 |
HS5510 |
|||
|
Nominal Lifting Moment (KN·m) |
630 |
|||
|
Work Range (m) |
3-50 3-55 |
|||
|
Max. Lifting Capacity (t) |
2 fall |
3 |
||
|
4 fall |
6 |
|||
|
Free Standing Height (m) |
40 |
|||
|
Attached Standing Height (m) |
|
140 |
||
|
|
50 |
|||
|
Lifting Speed (m/min) |
2 fall |
60/30/6 |
60/30/6 |
|
|
4 fall |
30/15/3 |
30/15/3 |
||
|
Slewing Speed (r/min) |
0-0.61 |
0-0.61 |
||
|
Radius Changing Speed (m/min) |
44/22 |
44/22 |
||
|
Standard Section(L×W×H) (m) |
1.6×1.6×3 |
|||
Features of QTZ63 6T Tower Crane
QTZ63 Tower Crane is a new type of construction tower equipment that is researched and designed by Institute of Building Mechanization of China Academy of Building Research based on large formwork construction technology. It has the following characteristics:
1) Lifting multiplying factor switchover automatically, without operator's intervention.
2) Ahead of all domestic competitors, we are the first manufacture to adopt lifting rope verticality limit mechanism, which decreases the lifting rope vertical angle under free load lifting mode, and highly improves the tower crane steering performance.
3) Our tower sections are exchangeable, which provide our customers more conveniences.
4) We adopt to use Dual drawbars structure on lifting boom, which enables the lifting boom to be under no stress at lifting surface other than uniaxial stress, and moreover, it gets rid of the stress peak. It greatly improves the fatigue safety performance of lifting boom.
5) Adopts VVVF stepless speed variation device for lifting, radius changing and slewing mechanisms, to make sure it works steadily and effectively, it also lowers the maintenance cost.
6) The equipment adopts to use non-contact computer control system, which provides the high reliability and full functions to avoid drivers' miss-operation.
