Quick Details
-
Dimension(L*W*H):
-
480*520*1040mm
-
Weight (KG):
-
75
-
Power (kW):
-
2.2
-
Product name:
-
Industrial Hand Coffee Grinder Soy Bean Powder Grinding Machine Custom
-
Material:
-
SUS 304 Stainless Steel
-
Degree of fineness:
-
10-120 mesh
-
Rotation:
-
4200rpm
-
Capacity:
-
10-120kg/h
-
Application:
-
cocoa beans, pepper, wheat, corn, herbs etc
-
Dimension:
-
480*520*1040mm
-
Weight:
-
100kg
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GEMS
-
Voltage:
-
220V/380V, 220/380v
-
Dimension(L*W*H):
-
480*520*1040mm
-
Weight (KG):
-
75
-
Power (kW):
-
2.2
-
Product name:
-
Industrial Hand Coffee Grinder Soy Bean Powder Grinding Machine Custom
-
Material:
-
SUS 304 Stainless Steel
-
Degree of fineness:
-
10-120 mesh
-
Rotation:
-
4200rpm
-
Capacity:
-
10-120kg/h
-
Application:
-
cocoa beans, pepper, wheat, corn, herbs etc
-
Dimension:
-
480*520*1040mm
-
Weight:
-
100kg
Product Description

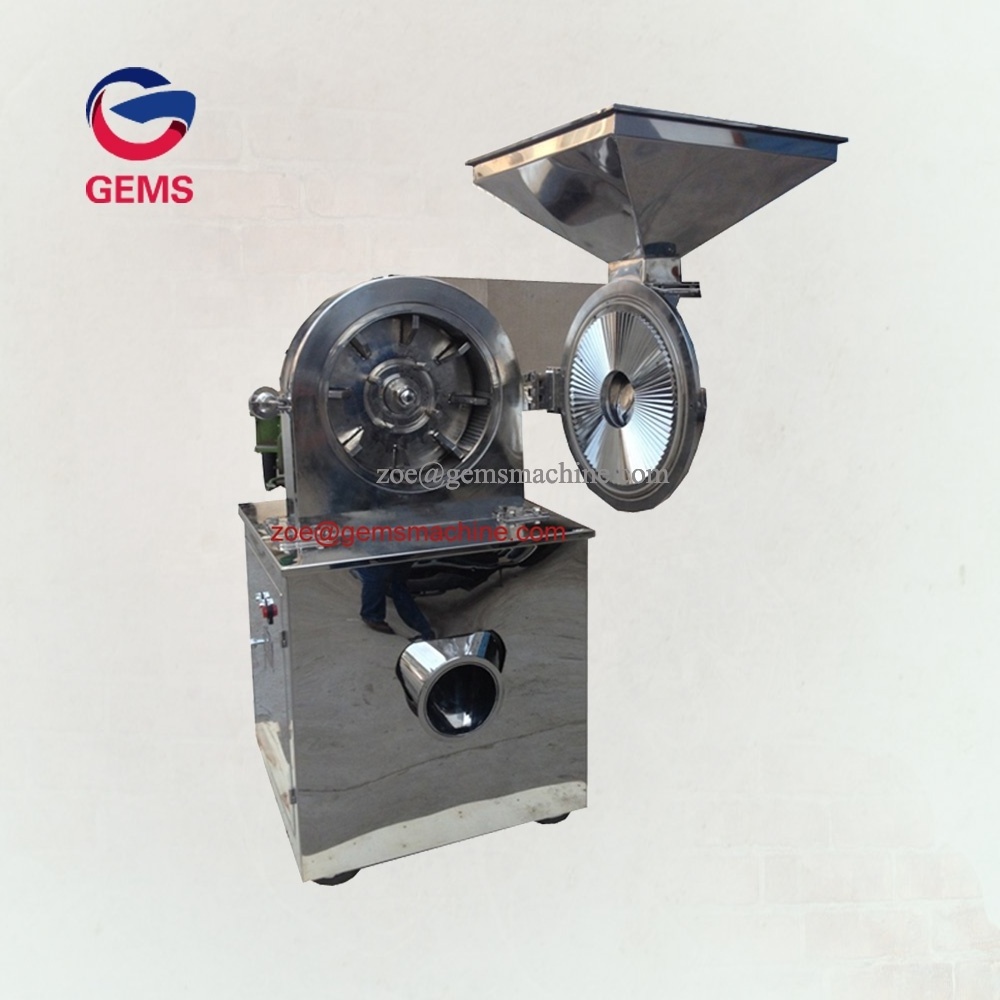

Large Capacity Electric Coffee Grinder Mechanism Coffee Powder Grinding Machine for Chocolate Making
This coffee powder grinding machine is mainly used for crushing materials in pharmaceutical, chemical, food and other industries. The final product is fine and can reach 120 mesh. Forbidden to crush flammable and explosive materials. It is prohibited to smash metal objects. Not suitable for crushing large materials. It is not suitable for crushing materials with too high water content and too high oil content, because the water or oil after crushing will form sauces and will block the screen.
Working principle of Coffeee Powder Grinding Grinder Machine:
This powder grinding machine uses relative motion between the moving teeth and fixed teeth to make materials crushed in the crushing cavity, pass the high-speed collision, percussion and friction between the moving and stationary teeth, Knock and rub to obtain crushing. The crushed material falls into the aggregate bucket or cloth bag under the crushing cavity through the screen. Generally, the bag is used for charging. The dust is left in the bag, and the air and a small amount of extremely fine dust pass through the gap of the bag and are discharged out of the bag.
Machine characteristics:
1. Simple structure, easy assembly and disassembly of the crushing cavity, and easy cleaning.
2. The machine is made of stainless steel, which meets the requirements of GMP.
3. Smooth operation, low noise and small vibration.
4. Simple operation. Fineness can be controlled by changing the screen.
Detailed Images
|
Model
|
GMS-MF180
|
GMS-MF250
|
GMS-MF320
|
GMS-MF350
|
|
Voltage
|
220/380v
|
380v
|
380v
|
380v
|
|
Capacity
|
30-120kg/h
|
50-200kg/h
|
100-300kg/h
|
200-500kg/h
|
|
Fineness
|
10-120mesh
|
10-120mesh
|
10-120mesh
|
10-120mesh
|
|
Rotation
|
4200rpm
|
10-120mesh
|
10-120mesh
|
10-120mesh
|
|
Power
|
2.2kw
|
5.5kw
|
7.5kw
|
11kw
|
|
Dimension
|
480*520*1040mm
|
750*600*1260mm
|
780*700*1350mm
|
800*900*1550mm
|
|
Weight
|
75kg
|
180kg
|
260kg
|
320kg
|
