Quick Details
-
Brand Name:
-
YINEN
-
Model Number:
-
YN-CD
-
Work Time (h):
-
24
-
Certificate:
-
CE,IEC,ETL,EMC
-
Warranty:
-
1 years
-
Current rating:
-
50/60/80/100A
-
Maximum charging current:
-
50/60/80/100A
-
PV maximum input power (12V):
-
600/720/960/1200W
-
PV maximum input power (24V):
-
1200/1440/1920/2400W
-
PV maximum input power(48V):
-
2400/2880/3840/4800W
-
MPPT efficiency:
-
>99.5%
-
Conversion efficiency:
-
>98%
-
PV maximum input power (96V):
-
4800/5760/7680/9600W
-
Ambient temperature:
-
-20~50℃
-
Storage temperature:
-
-30~70℃
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Wind Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
China
-
Brand Name:
-
YINEN
-
Model Number:
-
YN-CD
-
Work Time (h):
-
24
-
Certificate:
-
CE,IEC,ETL,EMC
-
Warranty:
-
1 years
-
Current rating:
-
50/60/80/100A
-
Maximum charging current:
-
50/60/80/100A
-
PV maximum input power (12V):
-
600/720/960/1200W
-
PV maximum input power (24V):
-
1200/1440/1920/2400W
-
PV maximum input power(48V):
-
2400/2880/3840/4800W
-
MPPT efficiency:
-
>99.5%
-
Conversion efficiency:
-
>98%
-
PV maximum input power (96V):
-
4800/5760/7680/9600W
-
Ambient temperature:
-
-20~50℃
-
Storage temperature:
-
-30~70℃
Specifications
|
Model
|
YN-CD
|
|
|
|
|
||||
|
Current rating (A)
|
50
|
60
|
80
|
100
|
120
|
||||
|
Maximum charging current (A)
|
50
|
60
|
80
|
100
|
120
|
||||
|
PV maximum input power (12V) (W)
|
600
|
720
|
960
|
1200
|
1440
|
||||
|
PV maximum input power (24V) (W)
|
1200
|
1440
|
1920
|
2400
|
2880
|
||||
|
PV maximum input power (48V) (W)
|
2400
|
2880
|
3840
|
4800
|
5760
|
||||
|
PV maximum input power (96V) (W)
|
4800
|
5760
|
7680
|
9600
|
---------
|
||||
|
Output maximum current(A)
|
--------
|
--------
|
--------
|
--------
|
---------
|
||||
|
PV panel open circuit input voltage range(V)
|
20V~ 100V (12V battery system)
|
|
|
|
|
||||
|
|
40V~145V (24V battery system)
|
|
|
|
|
||||
|
|
80V~240V (48V battery system)
|
|
|
|
|
||||
|
|
160V~240V (96V battery system)
|
|
|
|
|
||||
|
System identification voltage range(V)
|
DC9V-DC16V (12V battery sysem)
|
|
|
|
|
||||
|
|
DC18V-DC32V (24V battery sysem)
|
|
|
|
|
||||
|
|
DC42V-DC60V (48V battery sysem)
|
|
|
|
|
||||
|
|
96V is a stand-alone system
|
|
|
|
|
||||
|
Humidity
|
10%~90%
|
|
|
|
|
||||
|
Protection grade
|
IP30
|
|
|
|
|
||||
Product Description

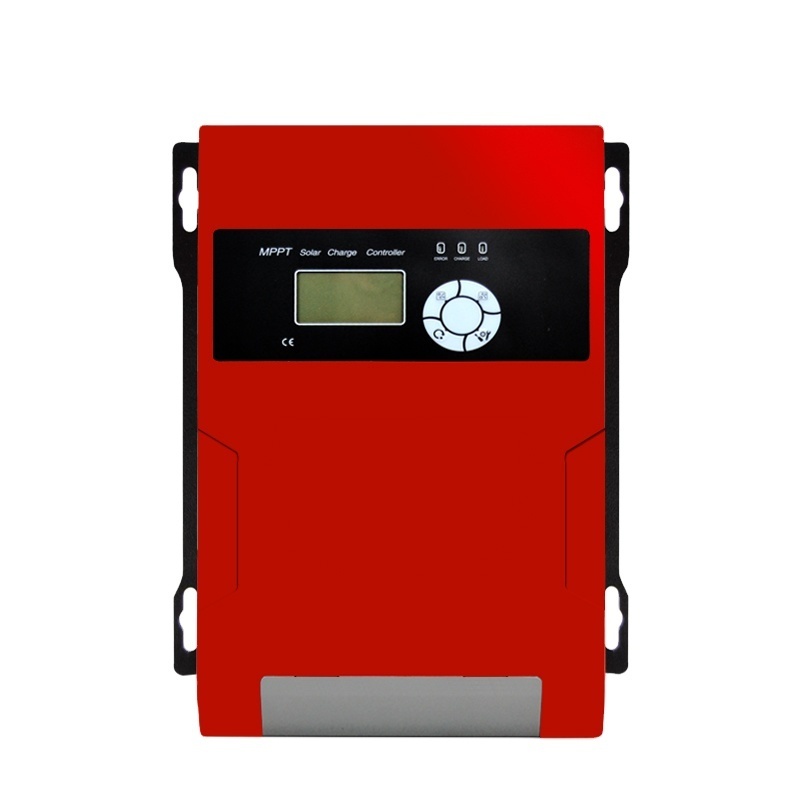

12V/24V/48VAUTO 10A 20A 30A 40A 50A Mppt Charge Controllers
Product Details
Product Connection
Technical Parameters
Package &Delivery
Why Choose US
Anhui Yinen Technology Co., Ltd., as one of the key invited investments by Anqing municipal government, is located in the national Economical-tech Development Zone of Anqing City, the well-known hometown of Huangmei Opera worldwide. We are a leading manufacturer specialized in solar, wind and other renewable energy products. We have a complete set of R&D, production, sales and service systems; and produce off-grid pure sine wave inverters, solar charge controllers, and wind-solar hybrid charge controllers. We also provide solar power system, designs for solar street-light system, and service for production and installation.Since our establishment, we Yinen Technology have acquired the awards of the national high-tech enterprises and Anhui provincial software enterprises. By having won more than thirty patents of Intellectual Property and EU certificates of CE and RoHS, we have also registered the Trademark "YINEN" (Registration No. 57674929), to become an influential enterprise with its brand force in the green energy industry.We believe and also hold innovation as the driving force for our long-lasting development. The members of our R&D team are a group of well-educated and highly-qualified professionals with rich R&D experience in the renewable energy power industry and a strong sense of independent innovation. They have also gained a wealth of experience in a large number of major governmental projects.We Yinen people, take "integrity, innovation, dedication and cooperation" as the spirit of our company, to provide our customers with high-quality system design, installation and solutions for technical transformation and improvement. We also keep enhancing the satisfaction for the public and our customers, and striving for a greater contribution to the society as a world famous enterprise in the new energy industry.
Product Line
FAQ
1. Q: Are you a factory or trading company? A: We are factory. 2. Q: What kind of payment do you accept? A:We accept all payment terms and you are also welcomed to make an order online through Alibaba.
3. Q: Do you have any MOQ for OEM? A: We have no quantity limit for our regular series product. But for OEM or any other type of customization, our MOQ is 1pcs.
4. Q: May I take one piece or several pieces of samples to test before placing an order ? A: Yes,we actually very much encourage new customers to start from samples. Customers who wanna have samples could just pay for it/them and the express freight if customers don't have their own express user account.
5. Q: How long can you offer the samples? A: Two days after the deposit received.
6. Q: What is your lead-time for my order? A: The lead-time is decided by the quantity of your order, normally ranging from 5-35 days from 50pcs to 1000pcs.
7. Q: What's your guarantee? A: Our standard regular guarantee is 12-month as the norm requires, but we could also provide customers who need a particular prolonged guarantee much longer warranty increased from 18-month to 5-year by selecting much refined material with much stricter and exquisite production to ensure it.
3. Q: Do you have any MOQ for OEM? A: We have no quantity limit for our regular series product. But for OEM or any other type of customization, our MOQ is 1pcs.
4. Q: May I take one piece or several pieces of samples to test before placing an order ? A: Yes,we actually very much encourage new customers to start from samples. Customers who wanna have samples could just pay for it/them and the express freight if customers don't have their own express user account.
5. Q: How long can you offer the samples? A: Two days after the deposit received.
6. Q: What is your lead-time for my order? A: The lead-time is decided by the quantity of your order, normally ranging from 5-35 days from 50pcs to 1000pcs.
7. Q: What's your guarantee? A: Our standard regular guarantee is 12-month as the norm requires, but we could also provide customers who need a particular prolonged guarantee much longer warranty increased from 18-month to 5-year by selecting much refined material with much stricter and exquisite production to ensure it.
