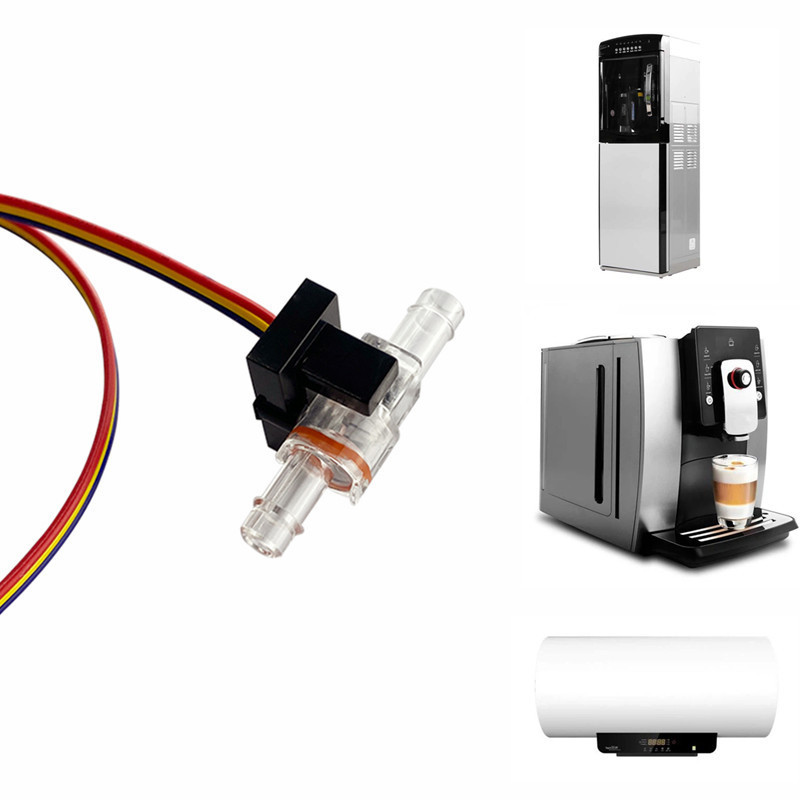

The Optical Flow Meter FM-PS2130 is compact, versatile, easy to install and small in installation size. No need to compensate for
gaps, sensors with high precision measurement, high repeatability measurement and high positioning accuracy, long stroke and long
life.
The flow rate of the medium through the Micro Infrared Flow Switching is large or small, so the number of signals generated is
nonlinear. Whether it is a volumetric or a velocity flow meter, as long as the amount and speed of the flowing medium change,
nonlinearity exists objectively. The electronic part of the photoelectric flow meter compensates the curve of different conditions
of the medium, and the measurement algorithm changes with the change of flow rate and flow rate.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PS-IR2130
-
Product Name:
-
Water Flow Sensor
-
Model:
-
PS-IR2130
-
Supply Voltage:
-
5-20 V
-
Application:
-
Liquid dispenser
-
Flow rate:
-
30ml~150ml/min
-
Accuracy:
-
+/-2%, +/-3%, +/-5% choose
-
Operating Temperature:
-
-5~ +65 °C
-
Storage Temperature:
-
-10~ +70°C
-
Working Life:
-
50000 H
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
PS-IR2130
-
Product Name:
-
Water Flow Sensor
-
Model:
-
PS-IR2130
-
Supply Voltage:
-
5-20 V
-
Application:
-
Liquid dispenser
-
Flow rate:
-
30ml~150ml/min
-
Accuracy:
-
+/-2%, +/-3%, +/-5% choose
-
Operating Temperature:
-
-5~ +65 °C
-
Storage Temperature:
-
-10~ +70°C
-
Working Life:
-
50000 H
Product Description
PS-IR2130
Sensor Flow Meter
Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Type
|
Flow Sensors
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
Province
|
Guangdong
|
|
Brand Name
|
|
|
Model Number
|
PS-IR2130
|
|
Product Name
|
Water Flow Sensor
|
|
Model
|
PS-IR2130
|
|
Supply Voltage
|
5-20 V
|
|
Application
|
Liquid dispenser
|
|
Flow rate
|
30ml~150ml/min
|
|
Type
|
Photoelectric Sensor
|
|
Accuracy
|
+/-2%, +/-3%, +/-5% choose
|
|
Operating Temperature
|
-5~ +65 °C
|
|
Storage Temperature
|
-10~ +70°C
|
|
Working Life
|
50000 H
|
Outline Drawing
