Quick Details
-
Weight (KG):
-
120
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
KX
-
Voltage:
-
220v/380v, 220V/380V
-
Dimension(L*W*H):
-
1500*600*1300
-
Power (kW):
-
3
-
Product name:
-
horizontal mixer
-
Function:
-
Mixing+liquid spraying+heating
-
Keyword:
-
Long Service Life
-
Name:
-
Horizontal Double Ribbon Blender Mixer
-
Machine Type:
-
Double ribbon double helix
Quick Details
-
Barrel Volume (L):
-
0.22-3.2
-
Max. Loading Volume (L):
-
3
-
Max. Loading Capacity:
-
3.2
-
Weight (KG):
-
120
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
KX
-
Voltage:
-
220v/380v, 220V/380V
-
Dimension(L*W*H):
-
1500*600*1300
-
Power (kW):
-
3
-
Product name:
-
horizontal mixer
-
Function:
-
Mixing+liquid spraying+heating
-
Keyword:
-
Long Service Life
-
Name:
-
Horizontal Double Ribbon Blender Mixer
-
Machine Type:
-
Double ribbon double helix
| Stainless Steel Bag Paddle Mushroom Substrate Mix Machine Ribbon Blender Dry flour Mixer |
Product Description
|
Model
|
Power
|
Size(mm)
|
Volume
|
Diameter
|
weight
|
Ladle thickness
|
|
KX-HM-150
|
3kw
|
1500*600*1300
|
0.22
|
10
|
120kg
|
1.5
|
|
KX-HM-200
|
3kw
|
1800*700*1500
|
0.36
|
12
|
150kg
|
2
|
|
KX-HM-300
|
4kw
|
2200*700*1500
|
0.48
|
14
|
220kg
|
2.5
|
|
KX-HM-500
|
5.5kw
|
2800*850*1750
|
0.85
|
18
|
300kg
|
3
|
|
KX-HM-1000
|
7.5kw
|
3200*1080*2100
|
1.56
|
20
|
500kg
|
3
|
|
KX-HM-2000
|
11kw
|
3300*1150*2200
|
2.2
|
20
|
800kg
|
3
|
|
KX-HM-3000
|
15kw
|
4200*1400*2500
|
3.2
|
20
|
1000kg
|
3
|

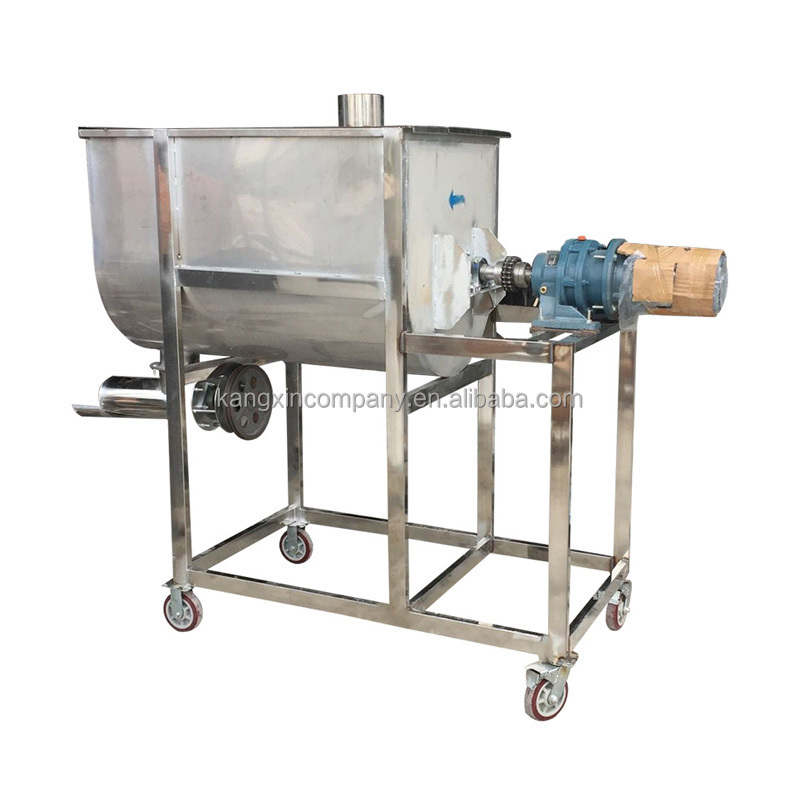

The horizontal mixer is composed of U-shaped container, spiral belt mixing blade and transmission parts; The U-shaped long cylinder structure ensures the small resistance movement of the mixed materials (powder and semi fluid) in the cylinder. The positive and negative rotating screw bars are installed on the same horizontal axis to form a low power and efficient mixing environment. The spiral ribbon blades are generally made into two or three layers. The outer spiral collects the materials from both sides to the center, and the inner spiral transports the materials from the center to both sides, which can make the materials form more vortices in the flow, speed up the mixing speed and improve the mixing uniformity; The cycloid reducer is driven by the belt pulley. Compared with the large torque of the gear reducer, the elastic connection of the belt transmission has the advantage of protec
