Quick Details
-
Application:
-
Construction, job site, cargo
-
Rated Lifting Moment:
-
962kNm
-
Span:
-
9m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Maxizm
-
Marketing Type:
-
New Product
-
Weight (KG):
-
31100 kg
-
Engine rated power/rpm:
-
213kW/2100(r/min)
-
Rated torque:
-
1050N.m/(1200~1400)rpm
-
Max.traveling speed:
-
80Km/h
-
Max.lifting moment(Base boom):
-
962kN.m
-
Max.gradeability:
-
38%
-
Fuel consumption per:
-
37L
-
Min.rated range:
-
3m
-
Dimensions:
-
12750*2500*3550mm
-
Departure angle:
-
12
-
Boom section:
-
4
Quick Details
-
Rated Loading Capacity:
-
25 ton
-
Max. Lifting Height:
-
30m
-
Engine Brand:
-
Top Brand
-
Application:
-
Construction, job site, cargo
-
Rated Lifting Moment:
-
962kNm
-
Span:
-
9m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Maxizm
-
Marketing Type:
-
New Product
-
Weight (KG):
-
31100 kg
-
Engine rated power/rpm:
-
213kW/2100(r/min)
-
Rated torque:
-
1050N.m/(1200~1400)rpm
-
Max.traveling speed:
-
80Km/h
-
Max.lifting moment(Base boom):
-
962kN.m
-
Max.gradeability:
-
38%
-
Fuel consumption per:
-
37L
-
Min.rated range:
-
3m
-
Dimensions:
-
12750*2500*3550mm
-
Departure angle:
-
12
-
Boom section:
-
4
Contact
Sales Manager
Smily Zhang
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Wechat/ Mobile/ WhatsApp: 86 17860505276
Smily Zhang
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Wechat/ Mobile/ WhatsApp: 86 17860505276
Products Description
Excellent and stable chassis performance /chassis system
* Double-axle drive is used, providing good trafficability and comfortableness under complex road conditions with reliable
traveling performance, and the rear axle is equipped with rubber suspension and V-shaped thrust lever which provide less vibration and a comfortable traveling feeling.
* The engine has the multimode power output function, which reduces power consumption. The use of tipping over early-warning technology provides high stability and safety of the overall operation.
Ultra-long, super strong and highly sensitive load lifting capacity
* Five-section boom of high strength steel structure and optimized U-shaped cross-section reduces weight significantly with higher safety rates. Jib mounting angles are 0°, 15°, and 30° which ensures fast and convenient change-over between different operating conditions so as to improving the working efficiency of the machine.
Highly efficient, stable, energy-saving, and adjustable electrical proportion hydraulic system
* Load feedback of hydraulic system, constant power control, piston pump and the electrical control valve is applied to provide strong lifting capacity and good micro-mobility. A unique steering buffer design is adopted to ensure stable braking operation.
Safe, stable, advanced, and intelligent electric control system
* The adoption of full-digital network control technology ensures stable control signal, simple harness, and high reliability.
Timely feedback of data information can achieve the monitoring of the overall working status in Realtime; the load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.
traveling performance, and the rear axle is equipped with rubber suspension and V-shaped thrust lever which provide less vibration and a comfortable traveling feeling.
* The engine has the multimode power output function, which reduces power consumption. The use of tipping over early-warning technology provides high stability and safety of the overall operation.
Ultra-long, super strong and highly sensitive load lifting capacity
* Five-section boom of high strength steel structure and optimized U-shaped cross-section reduces weight significantly with higher safety rates. Jib mounting angles are 0°, 15°, and 30° which ensures fast and convenient change-over between different operating conditions so as to improving the working efficiency of the machine.
Highly efficient, stable, energy-saving, and adjustable electrical proportion hydraulic system
* Load feedback of hydraulic system, constant power control, piston pump and the electrical control valve is applied to provide strong lifting capacity and good micro-mobility. A unique steering buffer design is adopted to ensure stable braking operation.
Safe, stable, advanced, and intelligent electric control system
* The adoption of full-digital network control technology ensures stable control signal, simple harness, and high reliability.
Timely feedback of data information can achieve the monitoring of the overall working status in Realtime; the load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.
Product Paramenters
|
Capacity
|
Max. lifting capacity
|
25t
|
|
Dimensions
|
Overall length
|
12750mm
|
|
|
Overall width
|
2500mm
|
|
|
Overall height
|
3550mm
|
|
|
Axles
|
3
|
|
|
Axle distance-1,2
|
4325mm
|
|
|
Axle distance-2,3
|
1350mm
|
|
Weight
|
Overall weight
|
30000kg
|
|
|
Front axle load
|
6500kg
|
|
|
Rear axle load
|
23500kg
|
|
|
Rated power
|
213kw/2100r/min
|
|
|
Rated torque
|
1050N·m/1200~1400r/min
|
|
|
Emission standard
|
Euro 3
|
|
Traveling
|
Max. traveling speed
|
80km/h
|
|
|
Min.turning radius
|
10m
|
|
|
Min.turning radius of boom head
|
12 m
|
|
|
Drive train
|
6×4
|
|
|
Min. ground clearance
|
220mm
|
|
|
Approach angle
|
17 °
|
|
|
Departure angle
|
12 °
|
|
|
Max. gradeability
|
38%
|
|
|
Fuel consumption per 100km
|
≤ 37L
|
|
|
Min.lifting radius
|
3m
|
|
|
Tail swing radius of superstructure
|
3.37m
|
|
|
Boom section
|
4
|
|
|
Boom shape
|
U-shaped
|
|
|
Max. lifting moment-Base boom
|
962kN·m
|
|
|
Max. lifting moment-Full-extend boom
|
544kN·m
|
|
|
Max. lifting moment-Full-extend boom+jib
|
341kN·m
|
|
|
Length-Base boom
|
10.65m
|
|
|
Length-Full-extend boom
|
33.5m
|
|
|
Length-Full-extend boom+jib
|
41.5m
|
|
|
Outrigger span(Longitudinal/Transversal)
|
5.3m × 6.2m
|
|
|
Jib offset
|
0 ° 15 ° 30 °
|
|
Working Speed
|
Max. single rope lifting speed of main winch(no load)
|
120m/min
|
|
|
Max. single rope lifting speed of auxiliary winch(no load)
|
120m/min
|
|
|
Full extend/retract time of boom
|
70 / 50s
|
|
|
Full raise/lower time of boom
|
70 / 55s
|
|
|
Swing speed
|
0~2 r/min
|
|
Aircondition
|
HVAC in up cab
|
Cooling and Heating
|
|
|
HVAC in low cab
|
Cooling and He
|

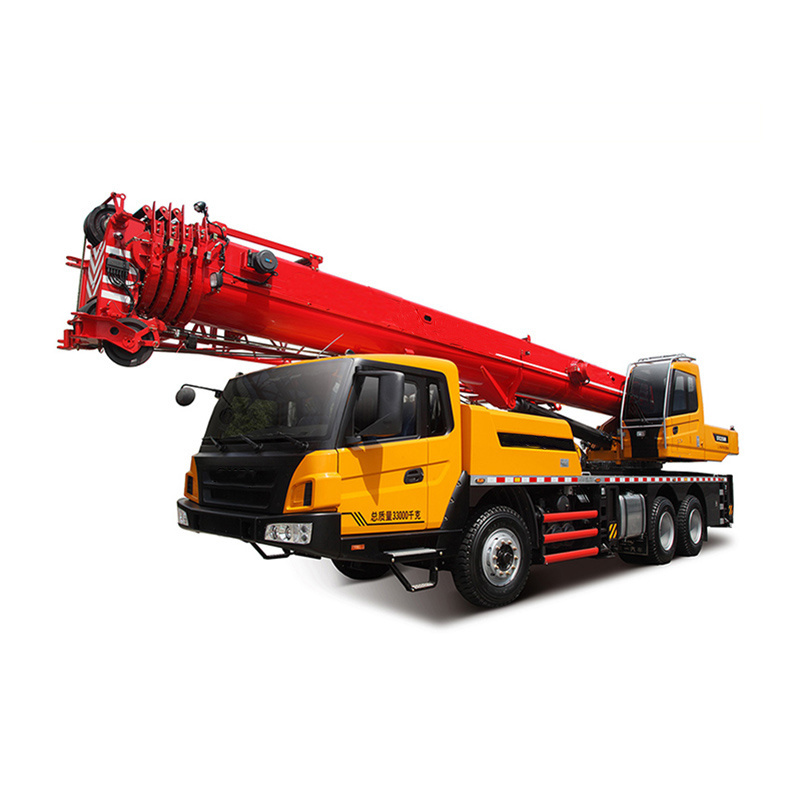

Details Images
