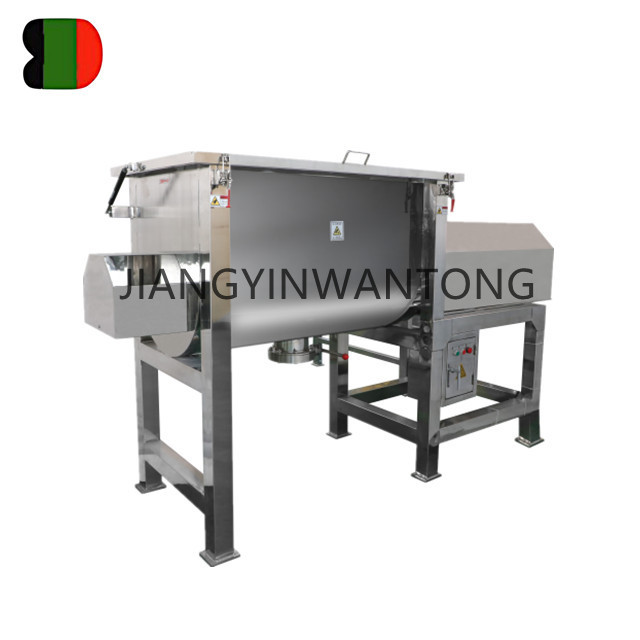

The machine is full stainless steel mixer, horizontal ribbon mixer shaft is arranged on the transmission screw blade, the internal spiral material from the discharge port conveying direction, the external spiral material to the discharge port conveying direction. Under the convective motion of the double helix belt, a low power and high efficiency mixing environment is formed.
Installed on the stirring shaft of the spiral drive inside and outside diameter of the material in the cylinder, the stirrer in the cylinder maximum range of turning materials. When the stirring device works, the inner screw drives the material which is close to the center of the shaft to be rotated in an axial direction, the axial direction is pushed away from the discharge port, and the outer screw drives the material close to the wall of the cylinder to rotate in an axial direction, and is pushed forward to the discharge port. The mixed material can be mixed in a short time.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
0.1L
-
Weight (KG):
-
1500 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
wantong
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
1190*740*770(mm)
-
Power (kW):
-
15 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine:
-
Ribbon blade food mixer for sale food liquid mixers
-
material:
-
steel wire
-
loads coefficiency:
-
0.4-0.8
-
weight:
-
330(kg)
-
Power(W):
-
3(kw)
Quick Details
-
Barrel Volume (L):
-
1000 L
-
Max. Loading Volume (L):
-
10000 L
-
Range of Spindle Speed(r.p.m):
-
20 - 80 r.p.m
-
Max. Loading Capacity:
-
0.1L
-
Weight (KG):
-
1500 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
wantong
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
1190*740*770(mm)
-
Power (kW):
-
15 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine:
-
Ribbon blade food mixer for sale food liquid mixers
-
material:
-
steel wire
-
loads coefficiency:
-
0.4-0.8
-
weight:
-
330(kg)
-
Power(W):
-
3(kw)
WLDH mixer organic mushroom substrate heating mixing machine ribbon blender dry powder mixer
WLDH SERIES RIBBON MIXER
Features
WLDH spiral ribbon mixer, mainly by the box, stirring device, support, flip part, transmission part.
This machine is made of stainless steel. The box is made of thick plate, and the sealing parts are arranged at both ends of the stirring shaft to ensure the cleanliness of the material.
In the part of the bracket, the steel is welded with enough steel and all the gears are arranged in the frame. The outer surface of the bracket is made of stainless steel plate, so the utility model has the advantages of compact structure, simple operation, beautiful appearance, small occupation area, convenient cleaning and good mixing effect.
Product Paramenters
|
Model
|
All Volume
|
Load efficiency
|
Power (kw)
|
Overall size(mm)
|
weight (kg)
|
|
WLDH-200
|
200L
|
0.4-0.8
|
3
|
1190x740x770
|
330
|
|
WLDH-300
|
300L
|
|
4
|
2030x630x980
|
720
|
|
WLDH-500
|
500L
|
|
7.5
|
2320×730×1130
|
980
|
|
WLDH-1000
|
1000L
|
|
11
|
2800×920×1320
|
1700
|
|
WLDH-1500
|
1500L
|
|
11
|
3180×1020×1550
|
1800
|
|
WLDH-2000
|
2000L
|
|
15
|
3310×1120×1640
|
2100
|
|
WLDH-3000
|
3000L
|
|
18.5
|
3750×1290×1820
|
3000
|
|
WLDH-4000
|
4000L
|
|
22
|
4220×1400×1990
|
3980
|
|
WLDH-5000
|
5000L
|
|
22
|
4220×1500×1990
|
4620
|
|
WLDH-6000
|
6000L
|
|
30
|
4700×1610×2260
|
6180
|
|
WLDH-8000
|
8000L
|
|
37
|
4420×2150×2470
|
8200
|
|
WLDH-10000
|
10000L
|
|
45
|
5520×2960×2720
|
8920
|
|
WLDH-12000
|
12000L
|
|
45
|
5720×3010×2840
|
9520
|
|
WLDH-15000
|
15000L
|
|
55
|
5840×3540×2940
|
9950
|
Details Images
