High temperature furnaces ceramic kiln electric furnace

The Electric Box-type Resistance Furnace / Tempering Furnace is mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the High Temperature Resistance Furnace uses high-purity alumina material as the insulation material, and the high-quality HRE is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.

1. The Electric Box-type Resistance Furnace / Tempering Furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%

2. Auto lifting door, easy to operate

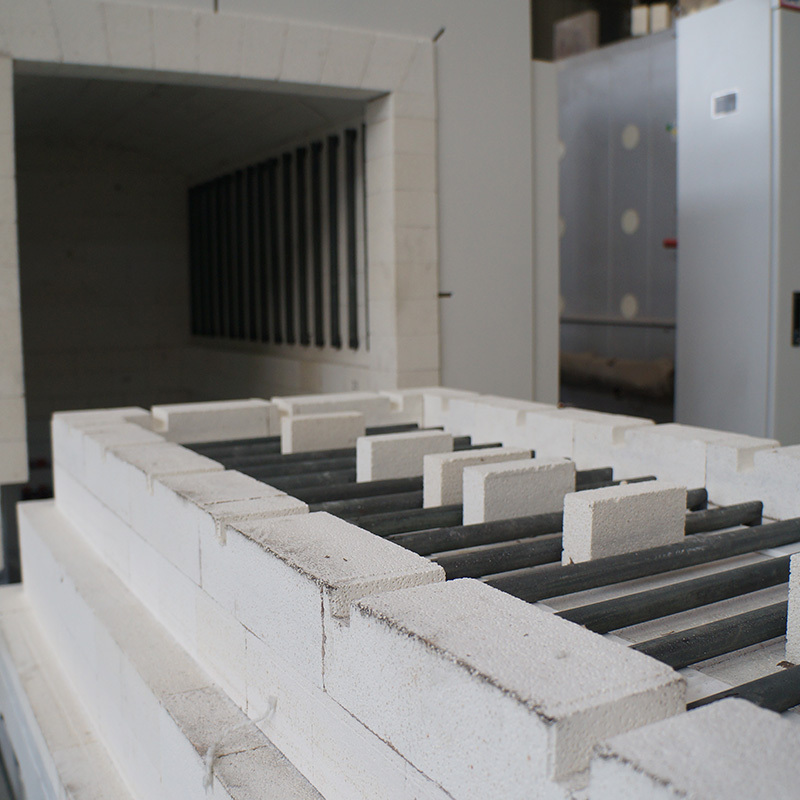

2. The heating element is made of high-quality HRE, which can bear large load, stable and long service life; the resistance wire is evenly arranged on THREE sides of the furnace, and the temperature field uniformity is good
3.Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1200℃ within 60 minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient
4.High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 ° C
5. Using SHIMADEN intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
6. Electronic components are used Schneider products, with leakage protection, safe and reliable
7. The Ceramic Kiln will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
8. When the Quenching Furnace program is set, just press the run button and the next work will be completed automatically
9. Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.

Our company has passed ISO9001 quality certification, CE certification and SGS factory certification. It also has got a number of technical honors like "Scientific and Technologic Enterprise of Henan Province", "National Small and Medium-Sized Sci-Tech Enterprise", "Refractory Material Technology Sintering R&D Center" issued by Science and Technology Department of Henan Province.
Before the products leaving the factory, it will be carried out QC processes, which including electrical test, temperature test, temperature accuracy calibration, furnace size check, furnace material check, product appearance inspection, electrical grounding safety test; ensure that each product is safe and qualified.
