Quick Details
-
Output Speed:
-
80(RPM)
-
Warranty:
-
1 year, 12 Months
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOMAO Gearbox for cement mixer
-
Color:
-
According to client's requirement
-
certification:
-
ISO9001:2008
-
Product name:
-

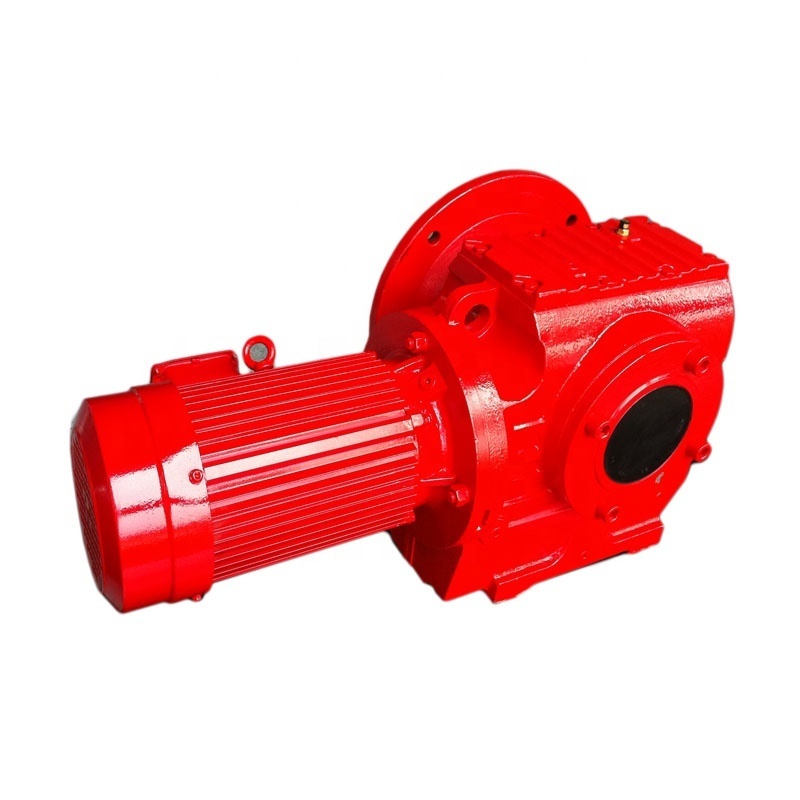

K Series Helical Bevel Geared Motor
-
Ratio:
-
5-100
-
Application:
-
Robotic
-
Mounting Position:
-
Foot Mounted. Flange Mounted
-
Material:
-
High Strength Cast Iron
-
Keyword:
-
Gerbox
-
Packing:
-
Wooden Box
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
200-50000 (N.m)
-
Input Speed:
-
500RPM)
-
Output Speed:
-
80(RPM)
-
Warranty:
-
1 year, 12 Months
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOMAO Gearbox for cement mixer
-
Color:
-
According to client's requirement
-
certification:
-
ISO9001:2008
-
Product name:
-
K Series Helical Bevel Geared Motor
-
Ratio:
-
5-100
-
Application:
-
Robotic
-
Mounting Position:
-
Foot Mounted. Flange Mounted
-
Material:
-
High Strength Cast Iron
-
Keyword:
-
Gerbox
-
Packing:
-
Wooden Box
Product Description
Sew K Series Bevel Helical Gearbox, spiral bevel gearbox, right angle bevel gearbox:
Product Details
1. K series helical bevel gearbox:
GK serial is helical bevel type gearboxes, output shafts of GK series geared motors are vertical to input shafts. Each unit consists of two stages helical gears and one stage bevel gears.
|
2.Technical data:
|
|
|
|
Gear unit reduction ratio
|
3.98 to 197.37
|
|
|
Multi-stage gear unit reduction ratio
|
94 to 32625
|
|
|
Output torque
|
125 to 50000 (1110 to 442500) (also in reduced backlash version)
|
|
|
Motor power range
|
0.12 to 200 (0.16 to 268)
|
|
|
3.Different types:
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Type
|
GK39
|
GK49
|
GK59
|
GK69
|
GK79
|
GK89
|
GK99
|
GK109
|
GK129
|
|||||||||
|
Structure form
|
K KA KF KAF KAZ KAT KAB
|
|
|
|
|
|
|
|
|
|||||||||
|
Input power(KW)
|
0.18-3
|
0.18-3
|
0.18-5.5
|
0.18-5.5
|
0.37-11
|
0.75-22
|
1.1-30
|
3-45
|
7.5-90
|
|||||||||
|
Transmission ratio
|
5.36-106.38
|
5.81-131.87
|
5.81-131.87
|
7.14-144.79
|
7.24-192.18
|
7.19-197.37
|
8.95-176.05
|
8.74-1410.46
|
8.68-146.07
|
|||||||||
|
Allowable torque(N.m)
|
200
|
400
|
600
|
820
|
1550
|
2700
|
4300
|
8000
|
13000
|
|||||||||
4. First rate equipment
1>Guomao gear grinding workshop equipped with German Niles gear grinding machines.
2>Performance testing bench for large whole-set gear cases.
3>German P26 gear tester
4>Coordinate measuring machine
2>Performance testing bench for large whole-set gear cases.
3>German P26 gear tester
4>Coordinate measuring machine
Packing & Delivery
Standard exporting package. our packaging is we have a polythene liner bag enclosing the gearbox (which is moisture barrier, rust-proof). And also, we put polyurethane foam around the gearbox (for avoiding hit and shock). Then put it into a veneer case.
