Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
DUROCK / OEM
-
Model Number:
-
K62
-
Operations Click life:
-
60 million
-
Style:
-
Tactile
-
Tactile method:
-
Metal leaf
-
Tactile:
-
4mm Travel | 2mm Operating
-
LED styles:
-
Through-hole
-
Operationg force:
-
62g Bottom Out
-
Pin:
-
5 Pins
-
Materials:
-
Nylon+PC+POM
-
Spring Force:
-
62g as default
-
Lubed:
-
Light Factory Lube
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
10mA
-
Max. Voltage:
-
12V DC/AC
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
DUROCK / OEM
-
Model Number:
-
K62
-
Operations Click life:
-
60 million
-
Style:
-
Tactile
-
Tactile method:
-
Metal leaf
-
Tactile:
-
4mm Travel | 2mm Operating
-
LED styles:
-
Through-hole
-
Operationg force:
-
62g Bottom Out
-
Pin:
-
5 Pins
-
Materials:
-
Nylon+PC+POM
-
Spring Force:
-
62g as default
-
Lubed:
-
Light Factory Lube
-
Certification:
-
CE

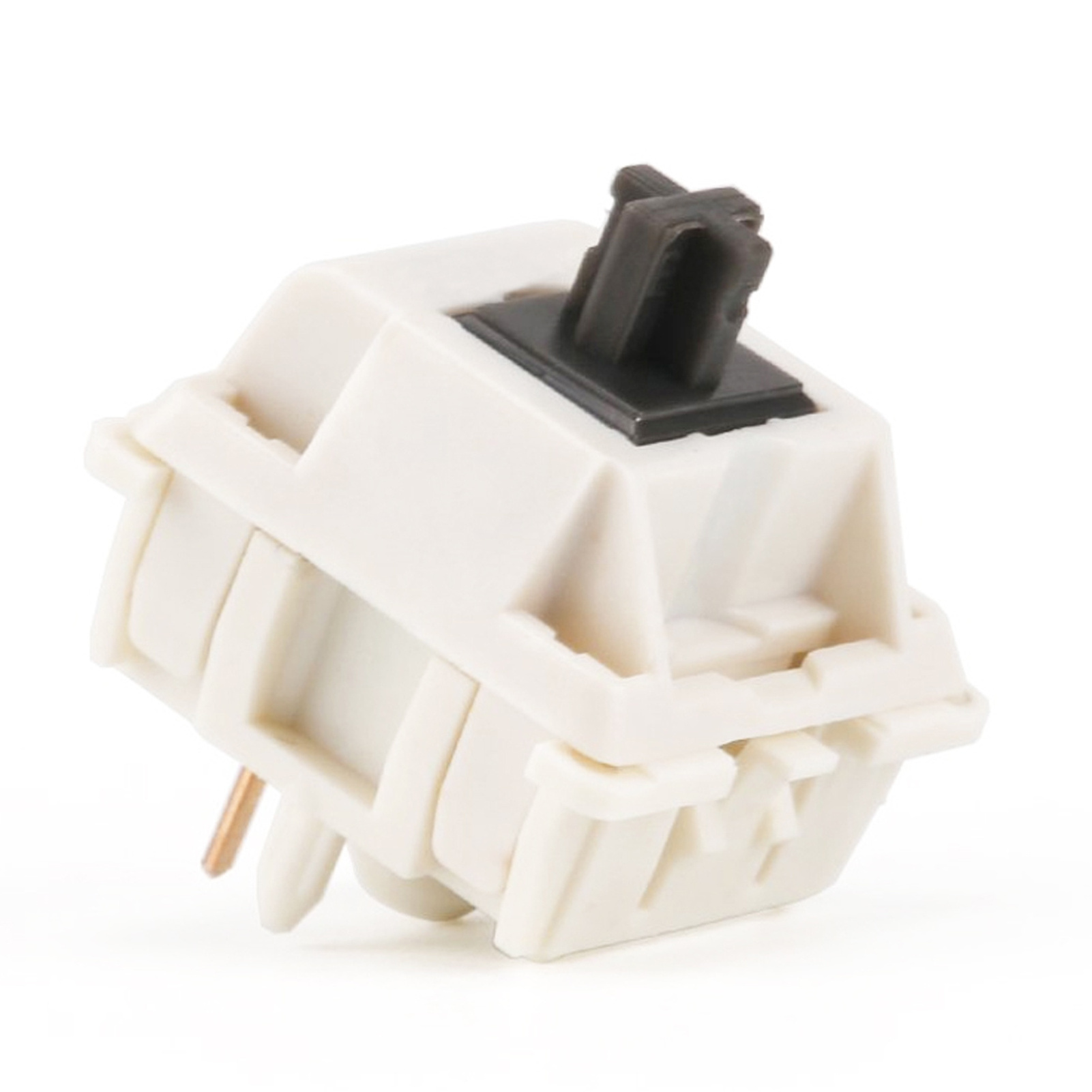

Durock Tactile Switch 62g with Gold plated Spring Cream Housing 62g Koala Switch Mechanical Key Switches for Mechanical Keyboard
DUROCK Koala Switches 62g 67g Tactile keyswitch T1 Tactility Holy Panda Switches Cream Switches Heavy Tactiles V2
Special Design with unique tactile feelings.
Koala Switches have a smooth round bump then smooth snap after the bump.
The bump is very noticeable, and it gives you a lot of feedback upon actuation - responsive to the touch.
It just asks you to keep typing, it feels alive.
Koala Switch Main Feature
T1 Switch Style - Tactile
| 4mm Travel | 2mm Operating |
Tactile Method: Metal Leaf (Gold-plated)
Gold-Plated Spring, 62g Bottom Out
50 million operations Click life
Available LED styles - SMD and through-hole
Materials: PC Top Housing, Polymer Nylon Bottom Housing, POM Stem
Light Factory Lube, you can lube over it with yours as per favor
|
Rating
|
12V DC 0.1A
|
|
Insulation Resistance
|
100MΩMin(250VDC)
|
|
Contact Resistance
|
100mΩ Max
|
|
Dielectric Strength
|
250VAC 50/60HZ for 1 min
|
|
Operating Temperature Range
|
-25 ℃ to 85 ℃
|
|
Work Travel
|
2.0±0.6mm
|
|
Total Travel
|
4.0±0.3mm
|
