Quick Details
-
Material:
-
PP, PP
-
Weight:
-
0.28kg-5kg
-
Size:
-
5 inch-60 inch
-
Power:
-
220v
-
Weight (KG):
-
0.3 kg
-
Application:
-
Filtration
-
Type:
-
Water Filter Parts
-
Usage:
-
Water Treament
-
Function:
-
Producing Fresh Water
-
Keywords:
-
Waste Water Treatmnet
-
After-sales Service Provided:
-
Training
-
Certification:
-
ISO9001/CE
-
MOQ:
-
1set
Quick Details
-
Core Components:
-
non-woven fabric, filter membrane, interface, skeleton
-
Place of Origin:
-
Shandong, China, Shandong China
-
Brand Name:
-
bishuikang
-
Material:
-
PP, PP
-
Weight:
-
0.28kg-5kg
-
Size:
-
5 inch-60 inch
-
Power:
-
220v
-
Weight (KG):
-
0.3 kg
-
Application:
-
Filtration
-
Type:
-
Water Filter Parts
-
Usage:
-
Water Treament
-
Function:
-
Producing Fresh Water
-
Keywords:
-
Waste Water Treatmnet
-
After-sales Service Provided:
-
Training
-
Certification:
-
ISO9001/CE
-
MOQ:
-
1set
|
Brand
|
bishuikang
|
|
|
|
|||
|
Filter
|
PES Fibre Membrane/PP Polypropylene
|
|
|
|
|||
|
Support layer
|
Polypropylene (PP)
|
|
|
|
|||
|
Filter cage
|
Polypropylene (PP)
|
|
|
|
|||
|
Pore size
|
0.1,0.2,0.45,0.65,1µm
|
|
|
|
|||
|
Length
|
5/10/20/30/40 inches
|
|
|
|
|||
|
OD/ID
|
69 mm-34 mm
|
|
|
|
|||
|
Gasket / O - rings
|
Silicone, NBR, EPDM, Viton
|
|
|
|
|||
|

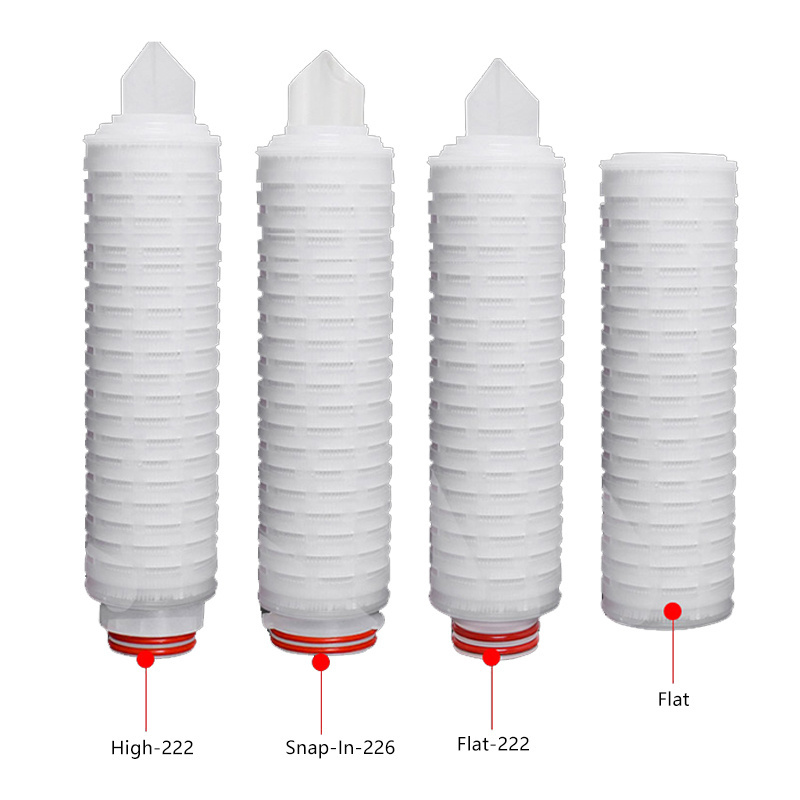

Interface
|
DOE,215,222,226flat/fins
|
|
|
|
|||
|
End caps
|
DOE,0050,0050A,0050B
|
|
|
|
|||
|
Sealing method
|
thermal bonding technique
|
|
|
|
|||
|
Effective filtration area
|
0.6 m2/10"
|
|
|
|
|||
|
Max. operating temperature
|
PES Fibre Membrane:140℃, 0.28 Mpa/PP Polypropylene:85℃/0.2 MPa; 25 ℃ (≥ 0.4 MPa)
|
|
|
|
|||
|
Max. forwarder differential pressure
|
0.42 Mpa (25℃)
|
|
|
|
|||
|
Max. reverse differential pressure
|
0.21 Mpa (25℃)
|
|
|
|
|||
|
Sterilizing temperature
|
121℃ 30min
|
|
|
|
|||
