Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GIANT
-
Model Number:
-
JJ-PKM-C02
-
Type:
-
Automatic Door Operators
-
Input Voltage:
-
DC24V
-
Motor power:
-
60W
-
Rod's max travel:
-
300mm/400mm
-
Max single-leaf length:
-
3m-3.5m
-
Max single-leaf weight:
-
300kg-350kg
-
Environment temperature:
-
-20 to + 55 celsius degree
-
Rotational speed:
-
100PRM
-
Rod's running speed:
-
2.4cm/s
-
Protection lever:
-
IP55
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Others
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GIANT
-
Model Number:
-
JJ-PKM-C02
-
Type:
-
Automatic Door Operators
-
Input Voltage:
-
DC24V
-
Motor power:
-
60W
-
Rod's max travel:
-
300mm/400mm
-
Max single-leaf length:
-
3m-3.5m
-
Max single-leaf weight:
-
300kg-350kg
-
Environment temperature:
-
-20 to + 55 celsius degree
-
Rotational speed:
-
100PRM
-
Rod's running speed:
-
2.4cm/s
-
Protection lever:
-
IP55
DC24V door operating double swing auto gate system
The two motors make up a durable and powerful 24V unit and the gear box is heavy duty and all gears are constructed of metal
(no plastic, fibre or nylon).
Enhance your lifestyle with automatic gate opener. Superior convenience with improved safety and security are yours at the touch of a button.

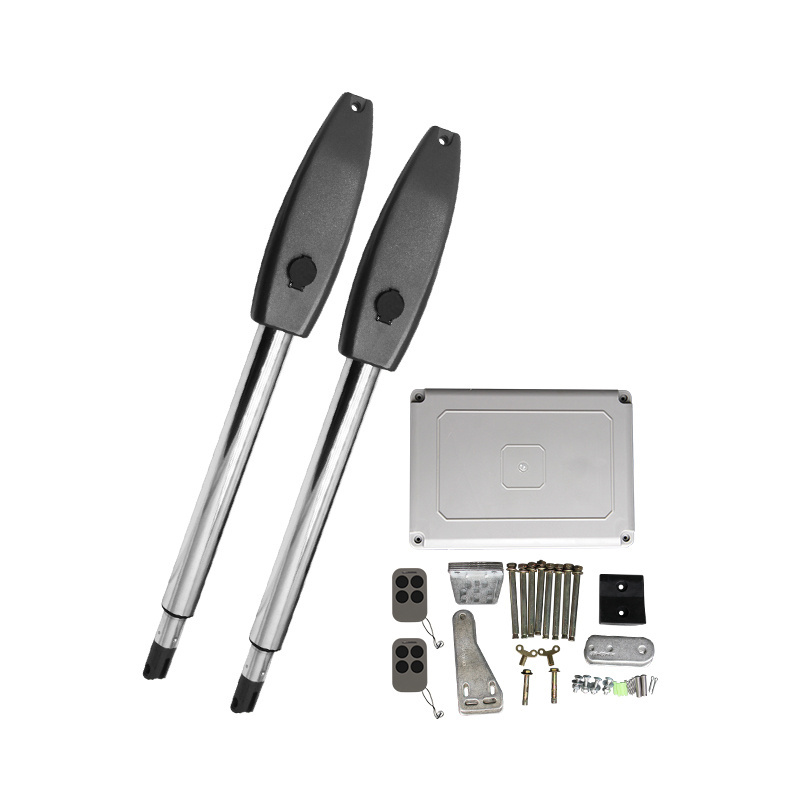

Contents
*Stainless steel residential motor (1 or 2 depending on single or double gate)
*2 x remote controllers
*1 x control panel
*2 x allen key
*2 x gate brackets
*2 x post brackets
*Operating Voltage: 24VDC
*Operate the gate Max length 4m per leaf
*Digital Adjustment
*IP55 rated motors-built to withstand the harshest environments
Buit in easy manual override in case of emergency such as power failure
Powerful 24v m otor with all metal gears as show in the picture as below
Optioanl common package or special protect package
Actuator Dimension
Control Panel
| Supply power | ~220V(+10%)/50Hz |
| Transfer | ~220V/24VDC 100W |
| Environment temperature | -20°C~+55°C |
| Protection fuse | 8A |
| Running time protection | adjustable |
| Auto closing delay time | adjustable |
| Force | adjustable |
Specification
|
Duty Cycle
|
25%
|
|
Power supply
|
220v AC to the Control Panel
|
|
Power to motor
|
24v DC
|
|
Gate weight
|
350kg per leaf max.
|
|
Average power consumption
|
1.7A
|
|
Motor rating
|
60W max
|
|
Manual override
|
Via override keys supplied
|
|
Working temperature
|
-10 - +70 degrees
|
|
Actuator length when retracted
|
740mm
|
|
Actuator length fully expanded
|
1080mm
|
|
Maximum stroke
|
400mm
|
|
Recommended stroke
|
400mm Max.
|
|
Opening/closing running time
|
12-15 seconds
|
|
Gates size
|
4m max
|
|
PE sensor power
|
24Vac, 3W max.
|
|
RF frequency
|
Rolling code 433.92mhz
|
| Warranty |
12 monthes
|
Installation
Service
Your inquiry concerned about our products or prices will be replied in 12 hours.
OEM/ODM are welcomed, we can help you to print your logo, company information etc on our products and package .
Protection of your sales area, ideas of design and all your private information.
Waranty for 1 year.
Factory Review
Certifications
Giant Alarm Swing Gate Opener meets CE and IP54 standards for anti-crushing safety. The diligent observation of safety standards ensures that Giant Alarm gate opener not only meets safety requirements, but also offers superior quality. Optional special electric lock and infrared protect.
