Quick Details
-
Place of Origin:
-
Hebei
-
Brand Name:
-
PUTAI
-
Voltage:
-
380/415/460
-
Power:
-
7.5kw/11kw
-
Dimension(L*W*H):
-
6500mm*1200mm*1650m
-
Weight:
-
4300 kg
-
Cutting blade material:
-
Cr12
-
Material Thickness:
-
0.4---0.8 Mm
-
Control system:
-
servo cutting
-
Roller station:
-
14 Stations
-
Product name:
-
angle profile machine
-
Roller material:
-
Cr12
-
After-sales Service Provided:
-
Engineers
-
Machine Type:
-
high speed drywall profile
-
Profiles:
-
drywall system
-
Shaft material:
-
45# Steel Forging Treatment
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Work Pressure:
-
12 MPa
-
Production Capacity:
-
100m/min
-
Place of Origin:
-
Hebei
-
Brand Name:
-
PUTAI
-
Voltage:
-
380/415/460
-
Power:
-
7.5kw/11kw
-
Dimension(L*W*H):
-
6500mm*1200mm*1650m
-
Weight:
-
4300 kg
-
Cutting blade material:
-
Cr12
-
Material Thickness:
-
0.4---0.8 Mm
-
Control system:
-
servo cutting
-
Roller station:
-
14 Stations
-
Product name:
-
angle profile machine
-
Roller material:
-
Cr12
-
After-sales Service Provided:
-
Engineers
-
Machine Type:
-
high speed drywall profile
-
Profiles:
-
drywall system
-
Shaft material:
-
45# Steel Forging Treatment
Product Description
Galvanized Steel Profile C Channel Cold Roll Forming Machine Roll Former machine
Project case
Introducing the Omega Furring Roll Forming Machine - the ultimate solution for creating high-quality furring strips with utmost precision! With its state-of-the-art technology and reliable performance, the Omega Furring Roll Forming Machine is the perfect choice for professionals who demand nothing but the best. Don't settle for less - choose Omega for unparalleled efficiency and outstanding results!
Detailed Images
Product detail drawing
|

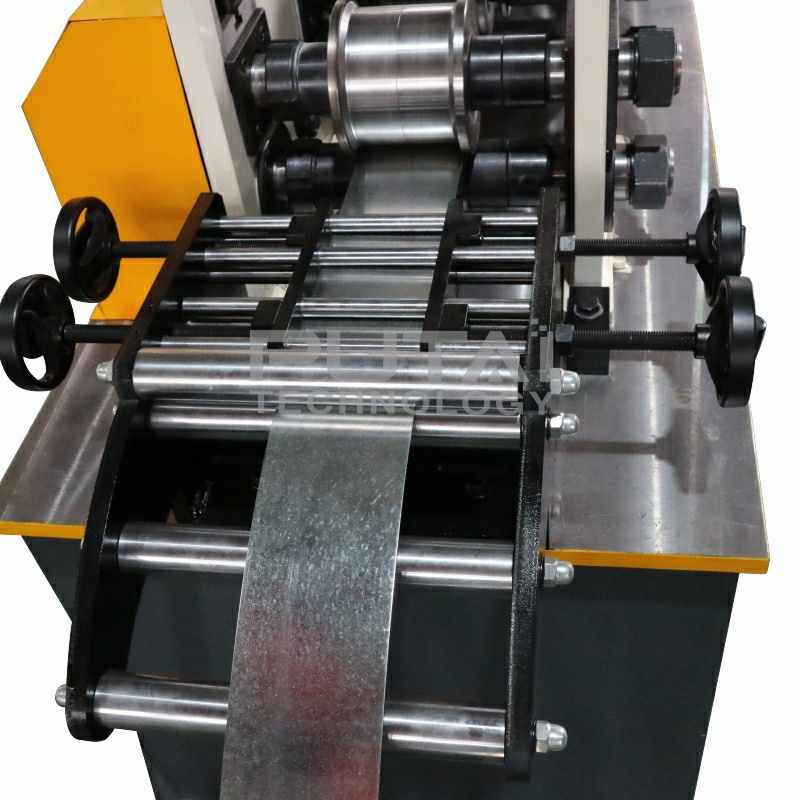

1.Roller
|
2.Better Productivity
|
3.The use of graduated nuts
|
|
Cr12 (also known as D3) steel is a high-carbon, high-chromium steel alloy used in the production of rollers for various
applications, including the manufacturing of asymmetrical sectional steel, round steel, and flat steel. Cr12 steel is known for its high wear resistance, toughness, and strength, making it an ideal material for roller production. used for roll forming machine |
With gear transmission, roll forming machines can operate at high speeds while maintaining accuracy,
improving productivity. This is particularly useful when manufacturing large quantities of products in a short amount of time. Gear transmission is the standard for many roll forming machines and is designed to withstand high levels of wear and tear. As a result, machines equipped with gear transmission require less maintenance than those equipped with alternative transmission systems. |
in roll forming machines is essential for ensuring the accuracy and quality of the end product. Any
misalignment can cause defects in the final product, which can be costly to correct. Graduated nuts make it possible to adjust the settings of the metal forming rollers and change the machine's configuration quickly, easily, and securely. |
Product Presentation
|
Product Name
|
Drywall corner bead roll forming machine
|
|
Material
|
GI/PPGI/GL/PPGL
|
|
Power
|
14.5KW
|
|
|
220V/380V/415V
According to the customer's national industrial voltage
|
|
Type
|
high speed roll forming machine
|
|
Model
|
agnle shape
|
|
Roller
|
12Rows-14Rows
|
|
Decoiler type
|
load-bearing
|
Advantage
|
|
Manually deociler
|
1.5t/2.5t
|
Economical applicability(order machine free for you ）
|
|
Hydrualic deociler
|
3t/5t
|
Hydraulic automatic tightening (powerful to loasing steel than manual)
|
|
Double Arm decoiler
|
2t+2t/3t+3t
|
Changing materials is faster and easier（for high speed machine to produce the profile)
|
Manually deociler
Hydraulic Decoiler
Double arm decoiler
Related Product
Certificate
Our R & D team has won a number of patent certificates and quality outstanding brand awards
Company Introduction
Our company Bazhou chenglang factory and Putai company(Tianjin Branch) is a professional cold roll forming machine manufacturer,we have been focusing on this field for 23 years. Our equipment includes roof forming machine, floor deck machine, automatic hydraulic uncoiler machine, shutter door coiling machine, light keel cold roll forming machine,stud and track C Z U forming machine, whole equalizer machine and other related construction equipment. With more than 22 years of engineering and design research and develop team. We have two patents for independently developed machine .At the same time, our machines use brand electrical components, raw materials from brand steel mills, strict process control, two year warranty, installation and training services. Our customers all over the world, such as Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other countries and regions. We have rich experience in different country needs such as profiles, thickness ranges, use, installation etc.
Company tenet: technological innovation, customer - centered, win-win. Thank you for your trust and choice, we will provide you with the best service support, help you achieve greater success. We look forward to more cooperation with old and new friends from all over the world!
Company tenet: technological innovation, customer - centered, win-win. Thank you for your trust and choice, we will provide you with the best service support, help you achieve greater success. We look forward to more cooperation with old and new friends from all over the world!
Packing&Shipping
FAQ
1-Are you manufacturer or trading company?
Yes, and we have more than 33 years of the cold roll forming machine
2-Can the machine parts be changed according to my requirements?
Yes, we will try our best to give you the best products.
3-What is your payment term?
30% T/T deposit paid in advance, 70% balance paid before shipping.
4-What is the delivery time?
About 35days after receive the deposit.
5- How can I get to your factory？
We could pick you up in airport or high speed rail station. The nearest airport is Beijing Daxing airport or Tianjin airport, and the nearest station is Bazhou or Shengfang station,please contact us.
6- What service can you provide before order?
About the pre-sale service. We provide you answers of all your questions on our machines,such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
7- Can you finish the machine during the delivery time?
We will finish the machine in time according to determined lead time
8-Can you provide some spare parts?
Yes. The quick-wear parts are sent to you together with the roll forming machine
